AD5246BKSZ100-R2 Datasheet(PDF) 7 Page - Analog Devices |
|
|
|||||||||||||||||||||||||||||
AD5246BKSZ100-R2 Datasheet(HTML) 7 Page - Analog Devices |
|

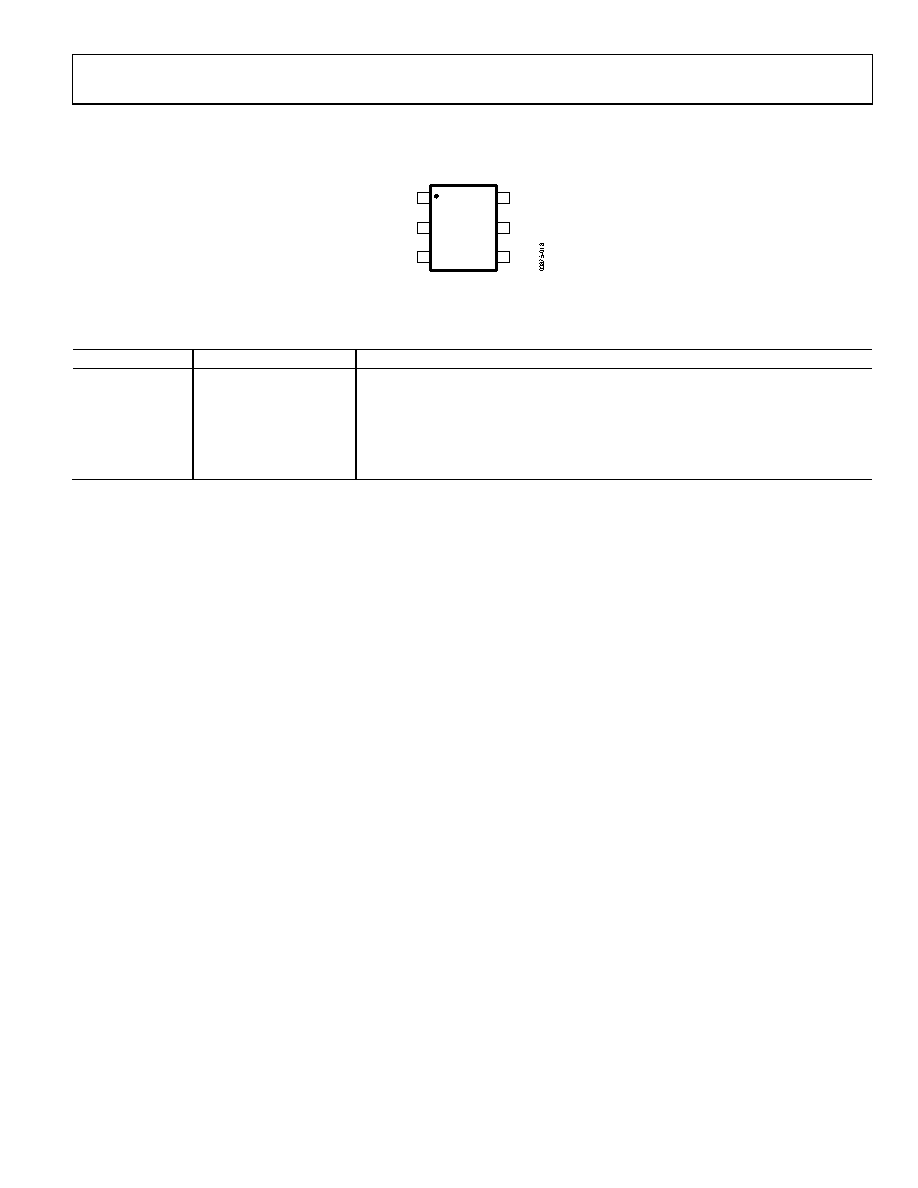

7 / 16 page ![]() Data Sheet AD5246 Rev. C | Page 7 of 16 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS VDD 1 GND 2 SCL 3 B 6 W 5 SDA 4 AD5246 TOP VIEW (Not to Scale) Figure 2. Pin Configuration Table 5. Pin Function Descriptions Pin No. Mnemonic Description 1 VDD Positive Power Supply. 2 GND Digital Ground. 3 SCL Serial Clock Input. Positive edge triggered. 4 SDA Serial Data Input/Output. 5 W W Terminal. 6 B B Terminal. |
|
|
