CC1150-RTY1 Datasheet(PDF) 14 Page - Texas Instruments |
|
|
|||||||||||||||||||||||||||||
CC1150-RTY1 Datasheet(HTML) 14 Page - Texas Instruments |
|
|

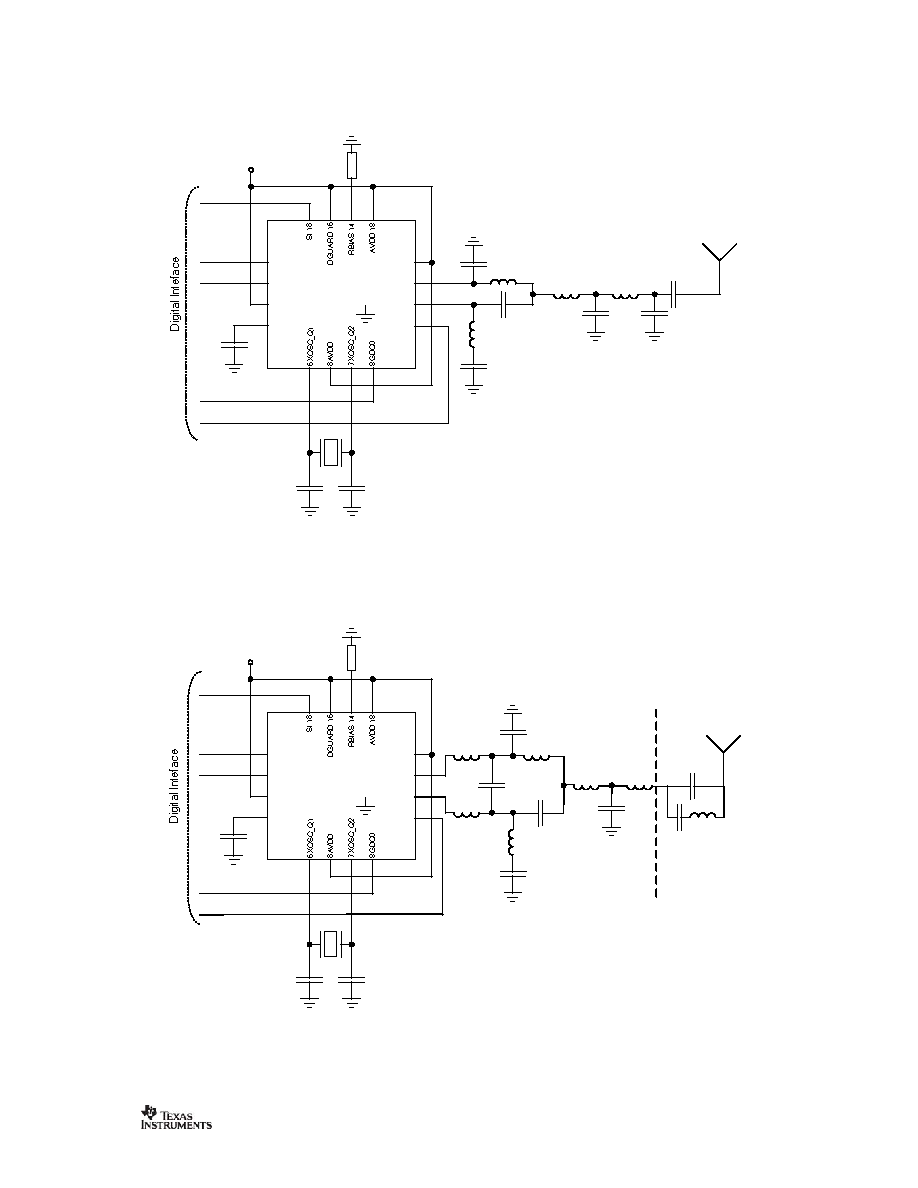

14 / 67 page  CC1150 SWRS037A Page 14 of 60 1.8V-3.6V power supply 1 SCLK 2 SO (GDO1) 3 DVDD 4 DCOUPL AVDD 12 RF_N 11 RF_P 10 CSn 9 XTAL R141 C51 C71 C41 CSn GDO0 (optional) SO (GDO1) SCLK SI CC1150 DIE ATTACH PAD: Antenna (50 Ohm) L102 L103 C102 C103 C105 C111 C101 L101 L111 C104 Figure 4: Typical Application and Evaluation Circuit 315/433 MHz (excluding supply decoupling capacitors) 1.8V-3.6V power supply 1 SCLK 2 SO (GDO1) 3 DVDD 4 DCOUPL AVDD 12 RF_N 11 RF_P 10 CSn 9 XTAL R141 C51 C71 C41 CSn GDO0 (optional) SO (GDO1) SCLK SI CC1150 DIE ATTACH PAD: Antenna (50 Ohm) L101 C105 L111 L104 C101 C102 L102 L112 C104 C111 L103 C103 C106 L105 C106 and L105 may be added to build an optional filter to reduce emission at 699 MHz Figure 5: Typical Application and Evaluation Circuit 868/915 MHz (excluding supply decoupling capacitors) |
|
