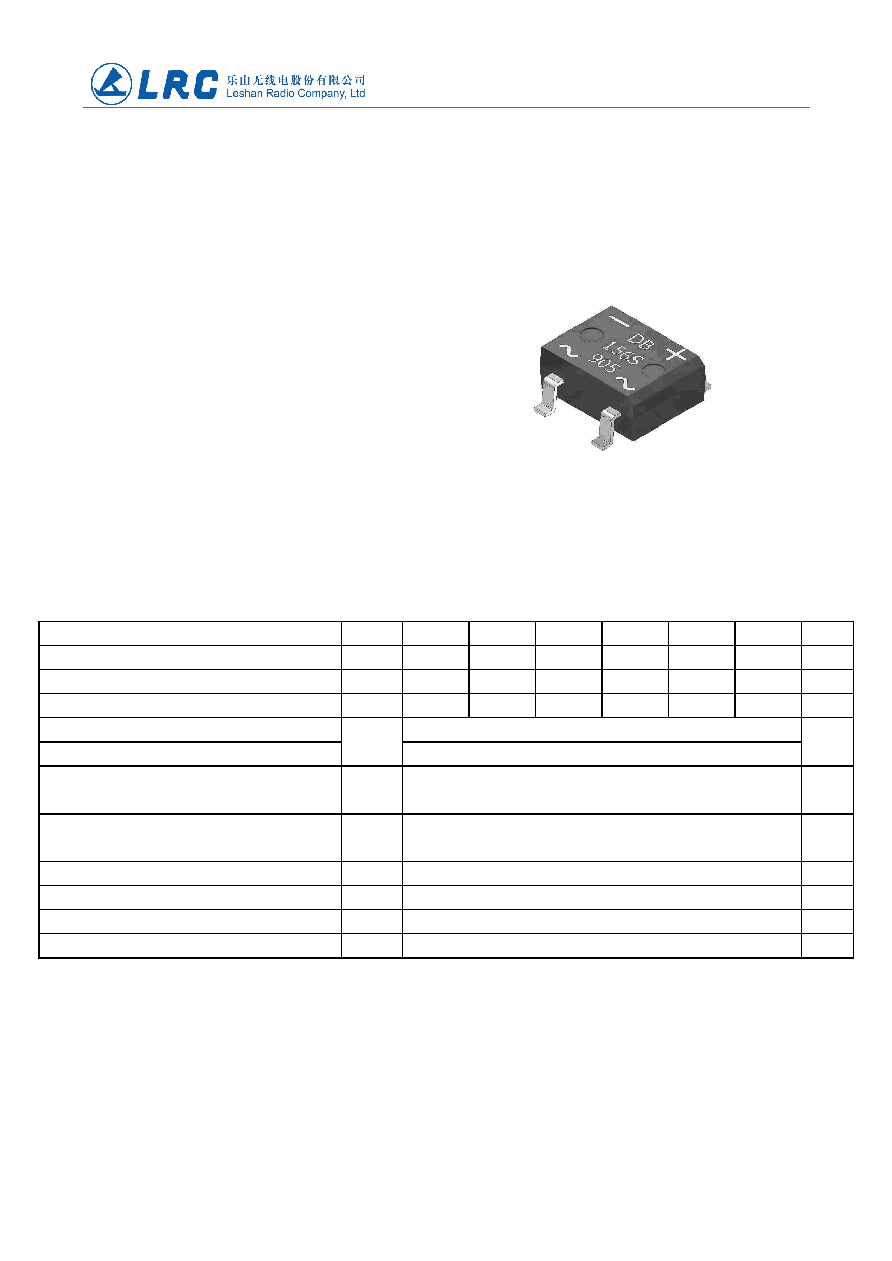

DB152S Thru DB157S

High Current Glass Passivated Molding Single-Phase Bridge Rectifier

Reverse Voltage 100 to 1000V

Forward Current 1.5 A

FEATURES

l

Plastic Package has Underwriters Laboratory

Flammability Classification 94V-0

l

High current capacity with small package

l

Glass passivated chip junctions

l

Superior thermal conductivity

Parameter Symbol

Symbol

DB152S

DB153S

DB154S

DB155S

DB156S

DB157S

Unit

Maximum repetitive voltage

100

200

400

600

800

1000

V

Maximum RMS Voltage

70

140

280

420

560

700

V

Maximum DC Blocking Voltage

100

200

400

600

800

1000

V

Maximum DC reverse current TA=25 ℃

5

at rated DC blocking voltage TA=125℃

IR

500

µA

Average rectified forward current

60Hz Sine

wave Resistance load

with

Ta=55℃

Io

1.5

A

Peak forward surge current 8.3ms single half

sine-wave superimposed on rated load

IFSM

60

A

Max instantaneous forward voltage at 2.0A

VF

1.05

V

Current Squared Time

I

2

t

10

A

2

sec

Operating junction temperature

TJ

-55~150

℃

Storage temperature

Tstg

-55~150

℃
