Dimensions are shown in mm (inch)

Dimensions subject to change

112

D Subminiature

Filter D

D*JK — 90

° PC Tails and Metal Brackets — Standard Footprint .318 or .283 inch

Plug

Reader’s Resource

For contact cavity arrangements,

see page 224.

For P.C. hole patterns, see page 273.

For panel cutouts, see page 221.

For hardware views (European),

see page 227.

For alternate bracket configuration (when

connectors are supplied without boardlocks),

see page 226.

For pushfit/boardlock configuration,

see page 225.

Part Numbers

Shell Size

Layout

Bracket,

#4-40 Nut

Bracket,

#4-40 Nut,

Boardlock

DEJK9P*-1U7N

DEJK9P*-1U7N-146

DAJK15P*-1U7N

DAJK15P*-1U7N-146

DBJK25P*-1U7N

DBJK25P*-1U7N-146

DCJK37P*-1U7N

DCJK37P*-1U7N-146

Insert filter designator *. Example: DEJK9P4-1U7N-146 (For 1000 pF Filter Capacitance)

Note: For performance class 1, add -A190. Example: DEJK9P4-1U7N-A190-146

Filter Designator*

Filter Capacitance

330 pF

470 pF

680 pF

1000 pF

1500 pF

For electrical data, see page 106.

Dimensions

Shell Size

±0,38 (.015)

±0,13 (.005)

±0,38 (.015)

±0,25 (.010)

±0,368 (.0145)

±0,41 (.016)

±0,25 (.010)

30,81 (1.213)

16,92 (.666)

24,99 (.984)

8,36 (.329)

12,55 (.494)

10,72 (.422)

6,693 (.2635)

—

0,76 (.030)

39,14 (1.541)

25,25 (.994)

33,32 (1.312)

8,36 (.329)

12,55 (.494)

10,72 (.422)

6,693 (.2635)

—

0,76 (.030)

53,04 (2.088)

38,96 (1.534)

47,04 (1.852)

8,36 (.329)

12,55 (.494)

10,82 (.426)

—

6,84 (.269)

0,99 (.039)

69,32 (2.729)

55,42 (2.182)

63,50 (2.500)

8,36 (.329)

12,55 (.494)

10,82 (.426)

—

6,84 (.269)

0,99 (.039)

Connector footprint measured from the front shell.

Connector footprint measured from the rear shell.

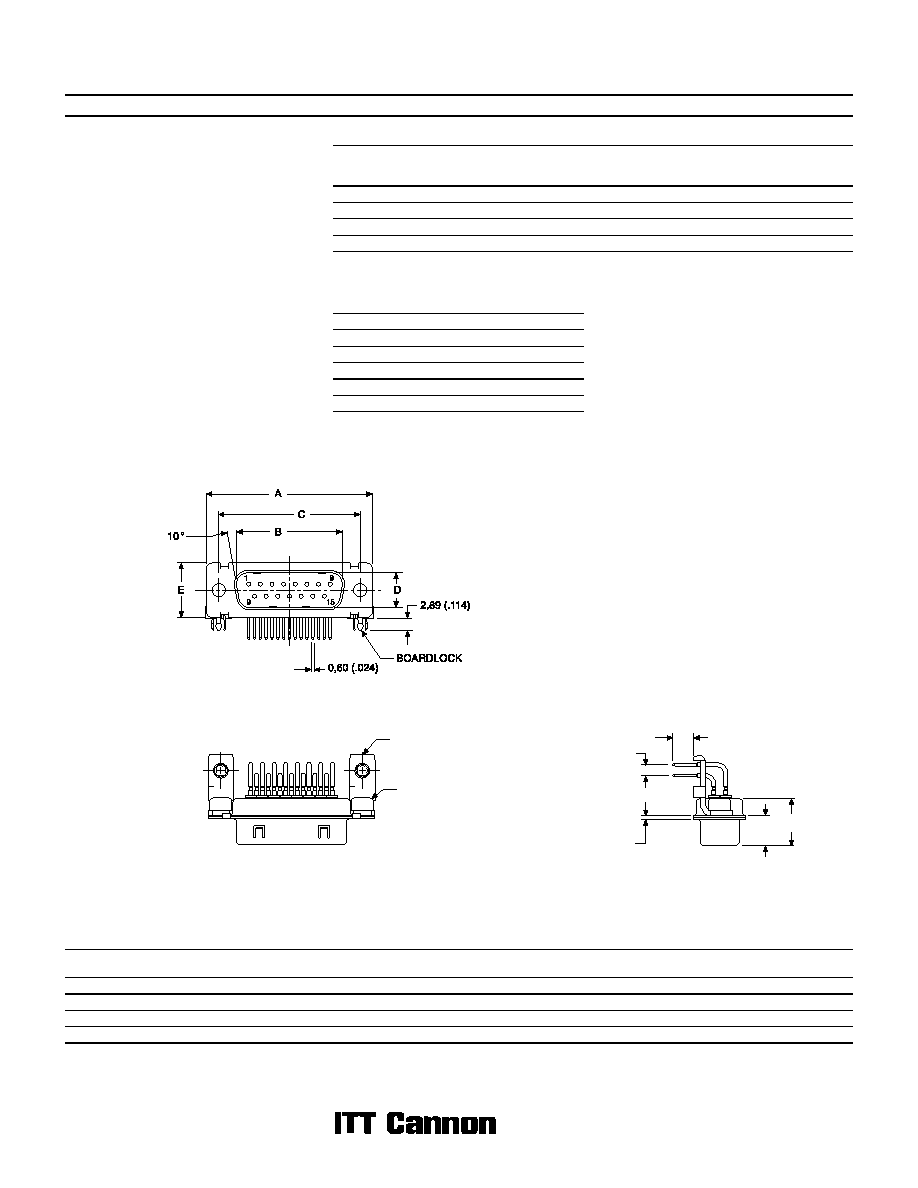

Engaging Face

Boardlock removed for clarity

BRACKET,

METAL

BUSHING

2,84 (.112)

3,50 (.138)

7,19 (.283)
