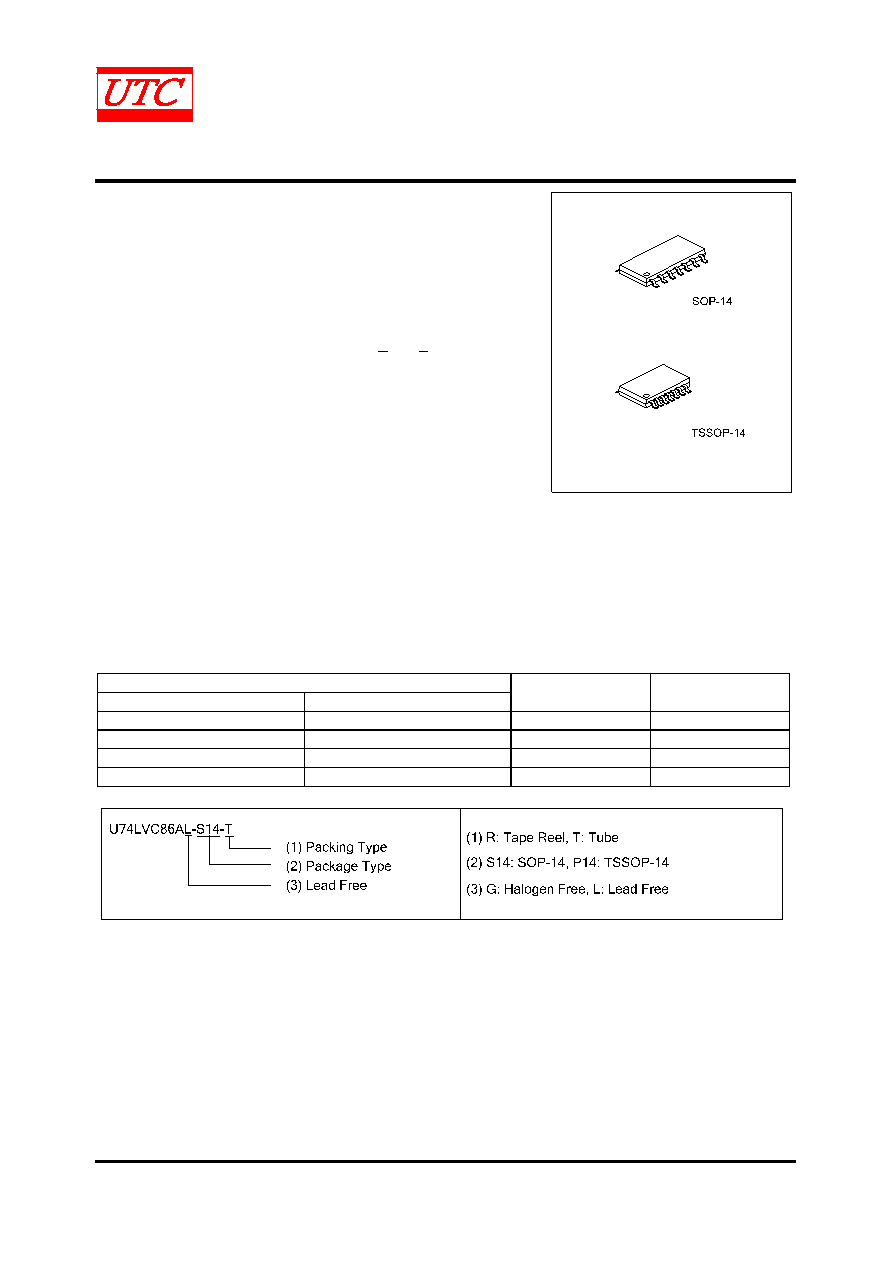

UNISONIC TECHNOLOGIES CO., LTD

U74LVC86A

CMOS IC

www.unisonic.com.tw

1 of 6

QW-R502-783.A

QUAD 2-INPUT EXCLUSIVE

OR GATE

DESCRIPTION

The U74LVC86A is a quad 2-input exclusive OR gate

which performs the function

⊕

Y=A

B

or

Y=ABAB

+

. It is

designed for 1.2V to 3.6V operation.

FEATURES

* Wide supply voltage range from 1.2V to 3.6V

* Max tpd of 4.6ns at CL=50pF, VCC=3.3V

* Up to 5.5V inputs accept voltages

* Low power consumption, ICC = 1 μA (Max.)

* Compatible with TTL families

ORDERING INFORMATION

Ordering Number

Lead Free

Halogen Free

Package

Packing

U74LVC86AL-S14-R

U74LVC86AG-S14-R

SOP-14

Tape Reel

U74LVC86AL-S14-T

U74LVC86AG-S14-T

SOP-14

Tube

U74LVC86AL-P14-R

U74LVC86AG-P14-R

TSSOP-14

Tape Reel

U74LVC86AL-P14-T

U74LVC86AG-P14-T

TSSOP-14

Tube
