AD8426

Rev. 0 | Page 16 of 28

+VS

–0.2

–0.4

–0.6

–0.8

–VS

–0.2

–0.4

–0.6

–0.8

SUPPLY VOLTAGE (±VS)

–40°C

+25°C

+85°C

+105°C

+125°C

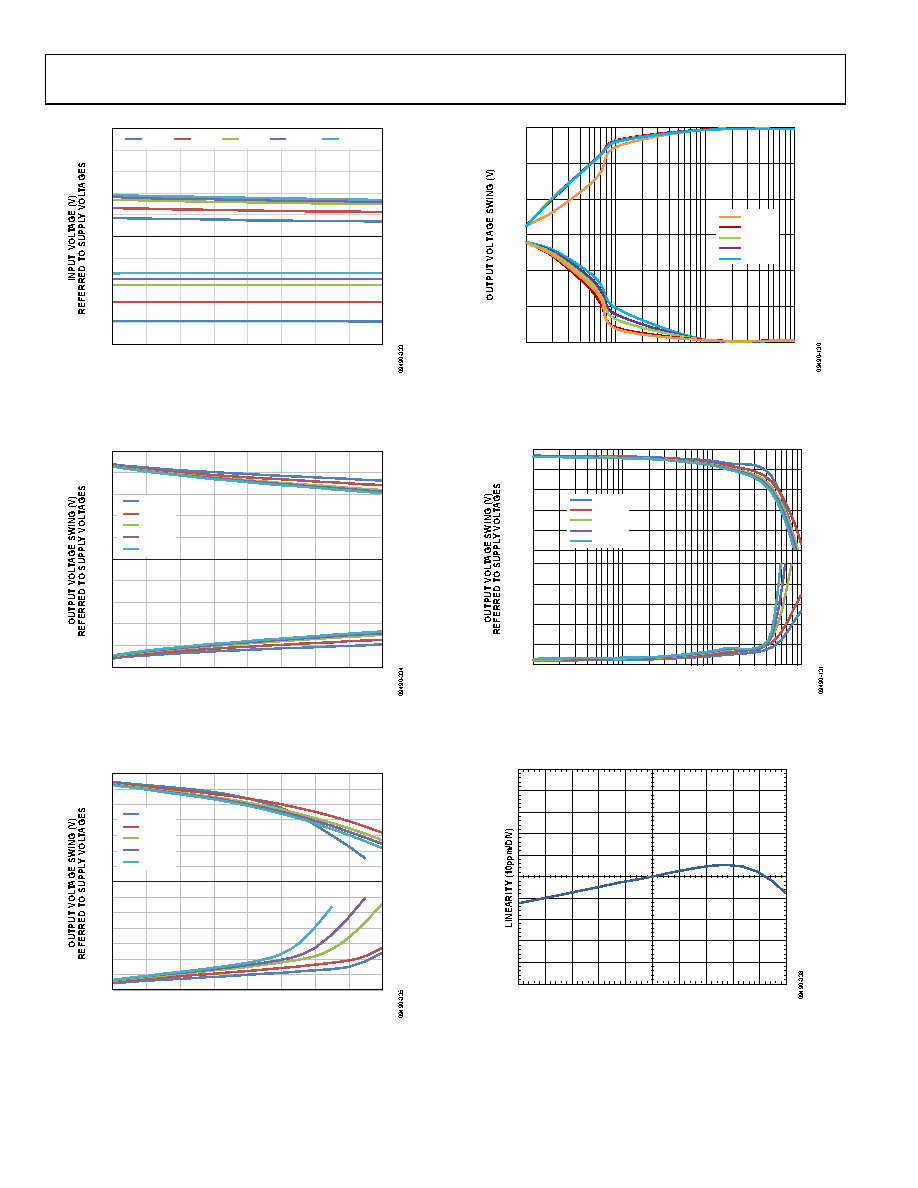

Figure 33. Input Voltage Limit vs. Supply Voltage

+VS

–0.1

–0.2

–0.3

–0.4

–VS

+0.3

+0.2

+0.1

+0.4

SUPPLY VOLTAGE (±VS)

–40°C

+25°C

+85°C

+105°C

+125°C

Figure 34. Output Voltage Swing vs. Supply Voltage, RL = 10 kΩ

+VS

–0.8

–1.0

–1.2

–0.2

–0.4

–0.6

–VS

+0.4

+0.2

+1.0

+0.8

+0.6

+1.2

SUPPLY VOLTAGE (±VS)

–40°C

+25°C

+85°C

+105°C

+125°C

Figure 35. Output Voltage Swing vs. Supply Voltage, RL = 2 kΩ

–15

–10

–5

100

100k

10k

LOAD RESISTANCE (Ω)

–40°C

+25°C

+85°C

+105°C

+125°C

Figure 36. Output Voltage Swing vs. Load Resistance

+VS

–0.2

–0.4

–0.6

–0.8

+0.8

+0.6

+0.4

+0.2

–VS

0.01

0.1

OUTPUT CURRENT (µA)

–40°C

+25°C

+85°C

+105°C

+125°C

Figure 37. Output Voltage Swing vs. Output Current, G = 1

OUTPUT VOLTAGE (V)

Figure 38. Gain Nonlinearity, RL ≥ 10 kΩ, G = 1
