UTT60P03
Preliminary
Power MOSFET
UNISONICTECHNOLOGIESCO.,LTD
4 of 5
www.unisonic.com.tw
QW-R502-605.a

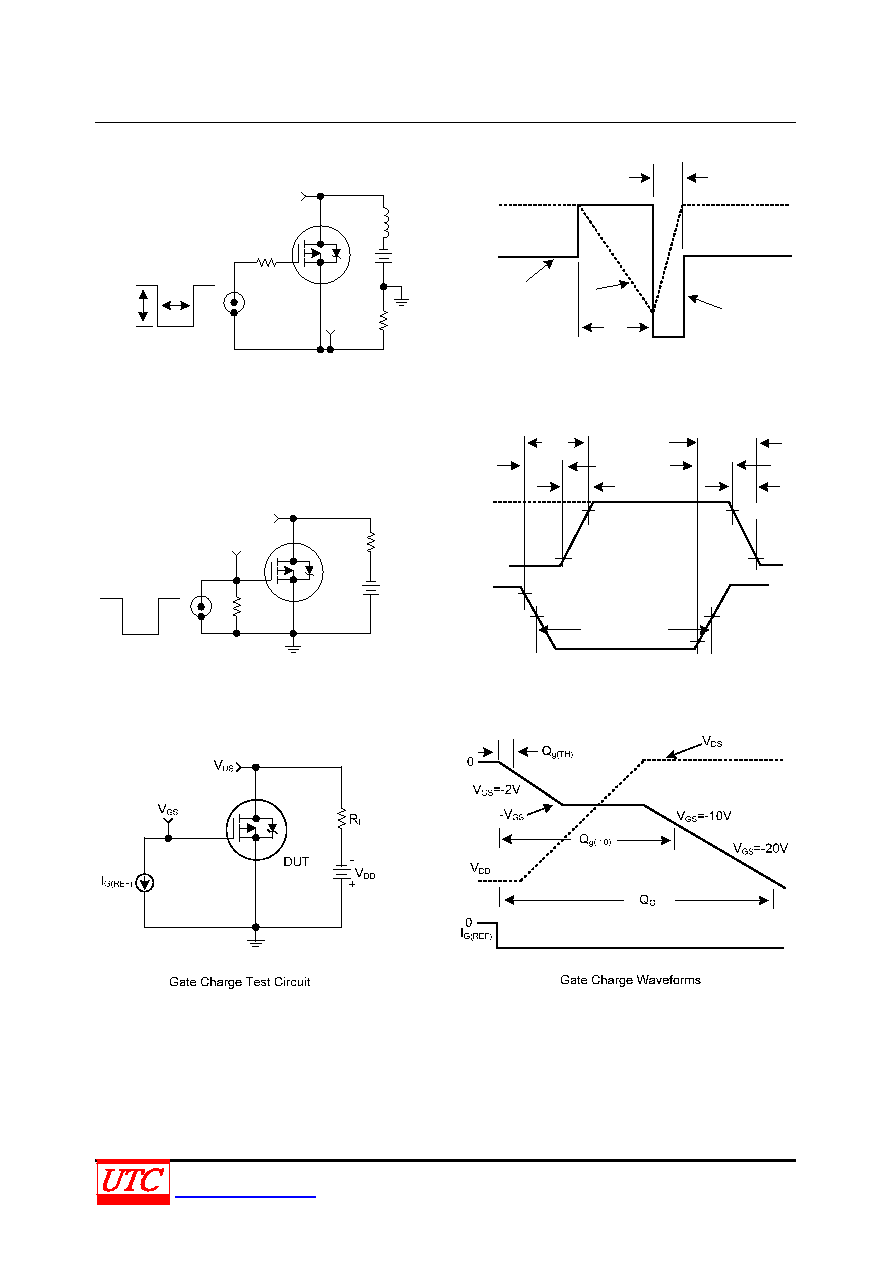

TEST CIRCUITS AND WAVEFORMS
VDS
L
-
+
VDD
0.01Ω
IAS
DUT
RG
tP
Vary tP To Obtain
Required Peak IAS
0V
VGS
Unclamped Energy Waveform
tAV
0
VDD
IAS
tP
VDS
BVDSS
Unclamped Energy Test Circuit
VDS
RL
-
+
VDD
DUT
RGS
VGS
VGS
Switching Time Test Circuit
0
VDS
0
VGS
tON
td(ON)
tr
tOFF
td(OFF)
tf
10%
90%
90%
10%
10%
50%
90%
50%
PULSE WIDTH
Resistive Switching Waveforms
