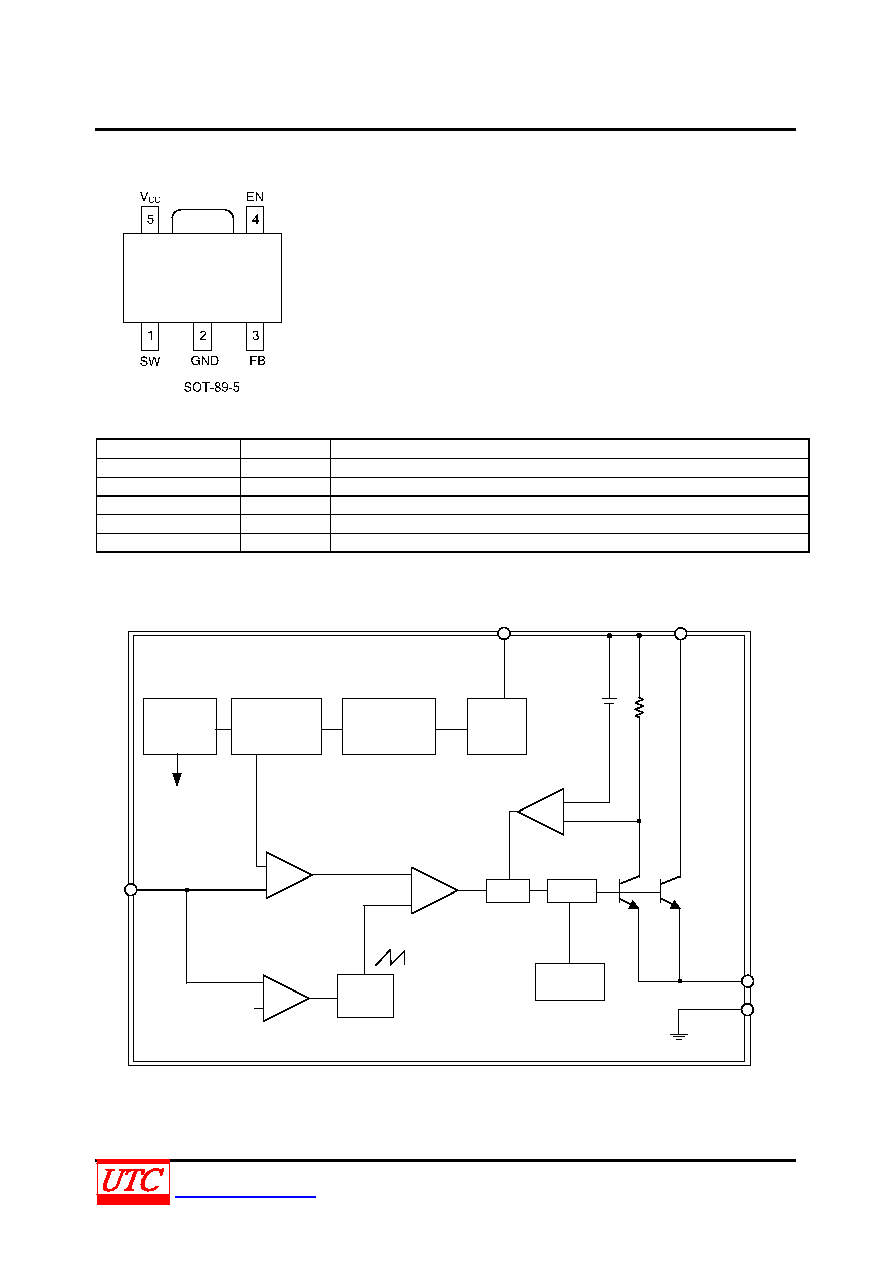

background image
P1595
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
2 of 6
www.unisonic.com.tw
QW-R103-047.C
PIN CONFIGURATION
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
SW
Switching Output
2
GND
Ground
3
FB
Feedback Voltage
4
EN
On/Off Pin
5
VCC
Operating Voltage Input
BLOCK DIAGRAM
CURRENT
SOURCE
BIAS
START
UP
200KHz
OSC.
Thermal
Shutdown
COMP.
PWM
EA
2.5V
REGULATOR
0.75V
REFERENCE
VCC
EN
SW
GND
FB
latch
Driver
0.4V
+
-
+
+
+
-
-
-
