HVLED805
Pin connection
Doc ID 18077 Rev 1
7/29
4
Pin connection
Note:
The copper area for heat dissipation has to be designed under the drain pins

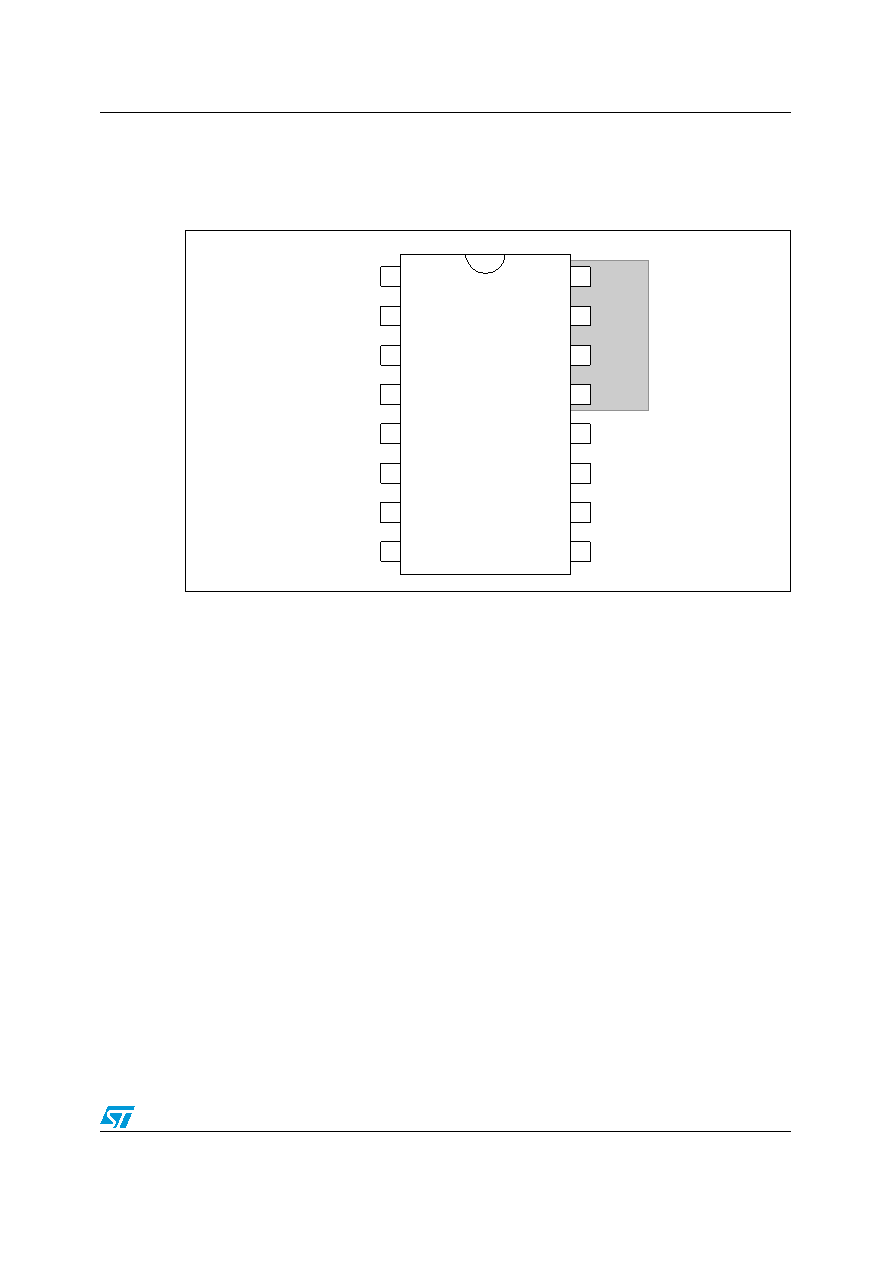

Figure 2.
Pin connection (top view)
SOURCE
SOURCE
VCC
GND
ILED
DMG
COMP
N.A.
N.A.
N.A.
N.A.
N.C.
DRAIN
DRAIN
DRAIN
DRAIN
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
