AS04008CO-WR-R datasheet(1/1 Pages) PUI

No. de pieza	AS04008CO-WR-R

Descripción Electrónicos	Speaker

PDF	1 Pages

Scroll/Zoom	100%

Fabricante Electrónico	PUI [Projects Unlimited, Inc.]

Página de inicio	http://www.pui.com

Logo

1 / 1 page

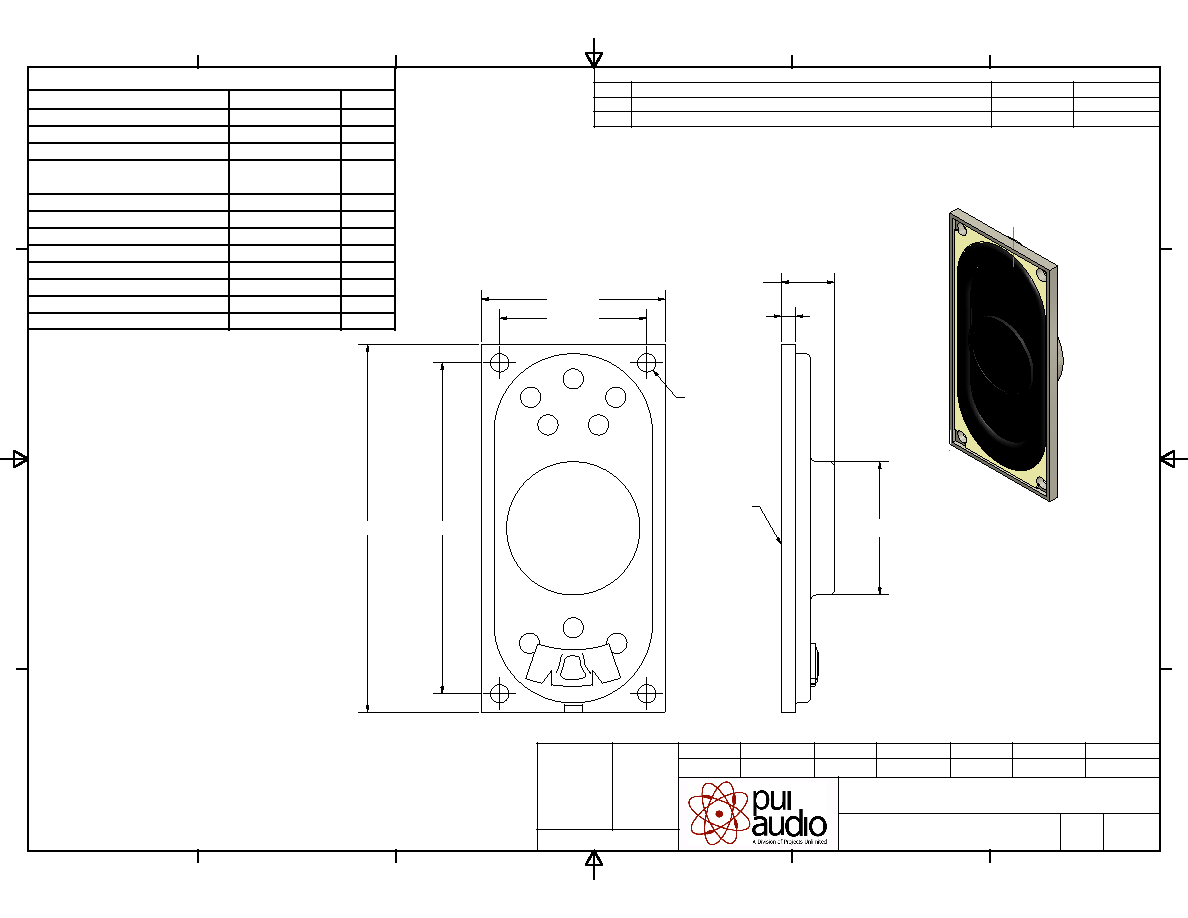

Speaker

AS04008CO-WR-R

J.D.

B.R.

R.W.

12/12/2008

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

10/20/2006

Date

10/20/2006

Date

10/20/2006

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

AS04008CO-WR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

10/20/2006

A

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

12/22/2008

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

2

W

MAX INPUT POWER

3

W

IMPEDANCE

8 ± 15%

OHM

OUTPUT SPL @ 1W/0.5M

(AT 0.8, 1.0, 1.2, 1.5 kHz)

83 ± 3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

400 ± 20%

Hz

FREQUENCY RANGE

200 ~ 20,000

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

TREATED CLOTH

-

MAGNET MATERIAL

Nd-Fe-B

-

OPERATING TEMPERATURE

-20 ~ +60

°C

WEIGHT

7.6

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

Δ4. CONE HAS BEEN TREATED FOR WATER RESISTANCE.

20

`0.2

16

`0.2

36

`0.2

40

`0.2

n2 (4)

1.6

`0.15

5.8

`0.3

14.5

n`0.3

Δ4
