ADR3425ARJZ-R2 Datasheet(PDF) 16 Page - Analog Devices |
|
|
|||||||||||||||||||||||||||||
ADR3425ARJZ-R2 Datasheet(HTML) 16 Page - Analog Devices |
|
|

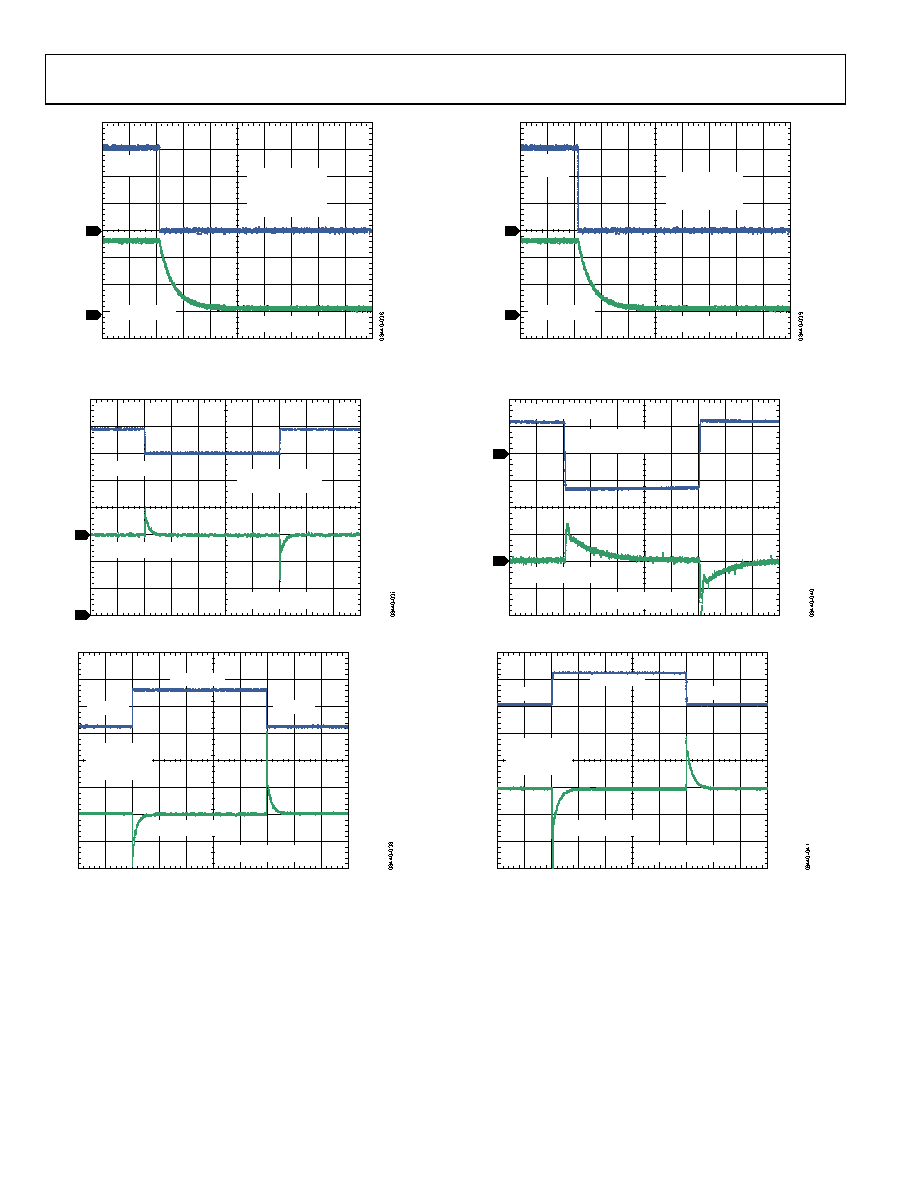

16 / 24 page  ADR3412/ADR3420/ADR3425/ADR3430/ADR3433/ADR3440/ADR3450 Rev. B | Page 16 of 24 1 2 CIN = CL = 0.1µF VIN = 3V RL = 1kΩ VOUT = 1V/DIV ENABLE 1V/DIV TIME = 200µs/DIV Figure 27. ADR3425 Shutdown Response 1 2 CIN = CL = 0.1µF VOUT = 10mV/DIV 500mV/DIV 3.2V 2.7V TIME = 1ms/DIV Figure 28. ADR3425 Line Transient Response CIN = 0.1µF CL = 0.1µF RL = 250Ω VOUT = 20mV/DIV SINKING SINKING –3mA 2.5V +10mA SOURCING IL TIME = 1ms/DIV Figure 29. ADR3425 Load Transient Response 1 2 CIN = CL = 0.1µF VIN = 5V RL = 1kΩ VOUT = 2V/DIV ENABLE 2V/DIV TIME = 200µs/DIV Figure 30. ADR3450 Shutdown Response 1 2 CIN = CL = 0.1µF VOUT = 5mV/DIV VIN = 100mV/DIV 5.5V 5.2V TIME = 1ms/DIV Figure 31. ADR3450 Line Transient Response CIN = 0.1µF CL = 0.1µF RL = 500Ω VOUT = 20mV/DIV SINKING SINKING –3mA 5.0V +10mA SOURCING IL TIME = 1ms/DIV Figure 32. ADR3450 Load Transient Response |
|
|
