ADT7420
Preliminary Technical Data
Rev. PrA | Page 6 of

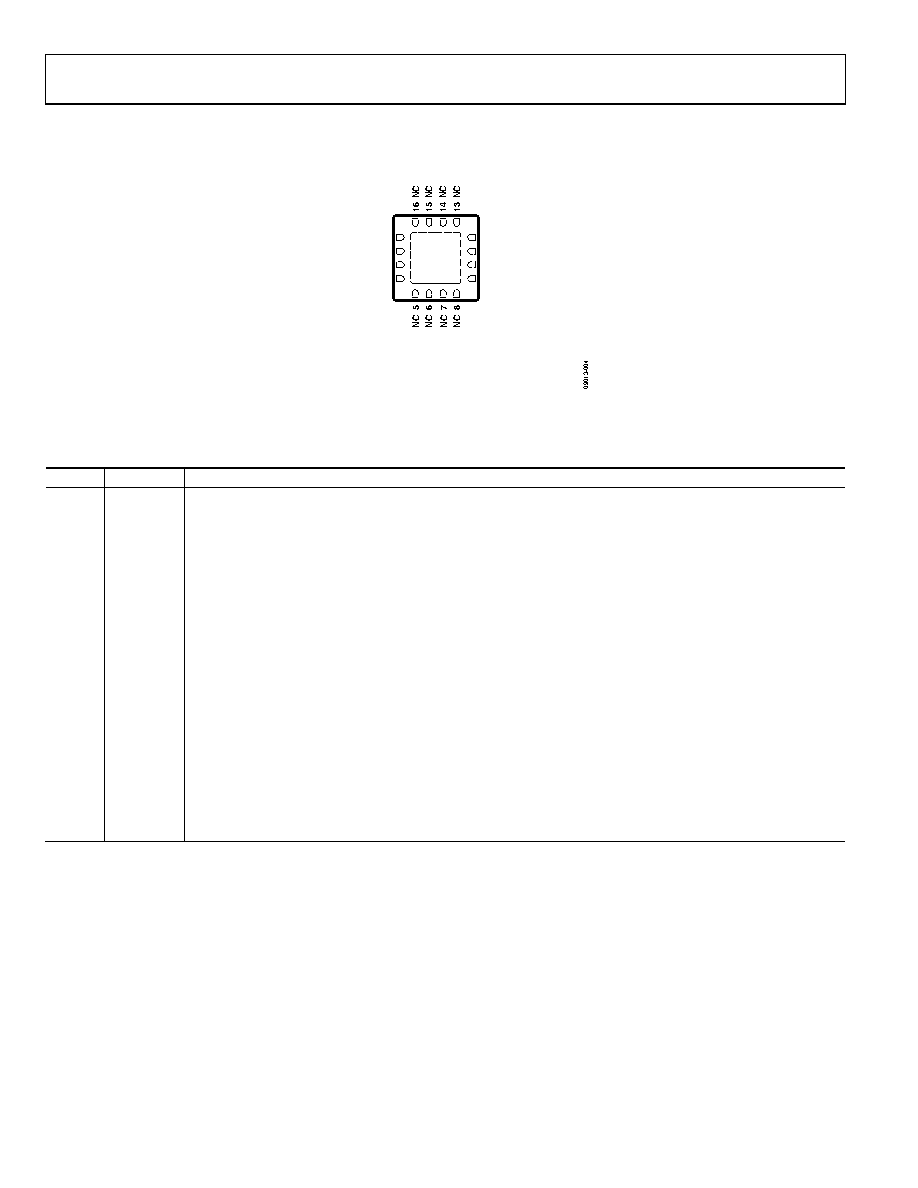

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
12
11
10
1
3
4
VDD
GND
CT
9
INT
SCL
A0
2
SDA
A1
TOP VIEW
(Not to Scale)
ADT7420
NOTES
1. NC = NO CONNECT.
2. THE EXPOSED PAD IS CONNECTED INTERNALLY.
FOR INCREASED RELIABILITY OF THE SOLDER JOINTS
AND MAXIMUM THERMAL CAPABILITY IT IS RECOMMENDED
THAT THE PAD BE SOLDERED TO THE GROUND PLANE.
Figure 3. Pin Configuration
Table 4. Pin Function Descriptions
Pin No.
Mnemonic
Description
1
SCL
I2C Serial Clock Input. The serial clock is used to clock in and clock out data to and from any register of the ADT7420.
Open-drain configuration. A pull-up resistor is required, typically 10 kΩ.
2
SDA
I2C Serial Data Input/Output. Serial data to and from the part is provided on this pin. Open-drain configuration. A
pull-up resistor is required, typically 10 kΩ.
3
A0
I2C Serial Bus Address Selection Pin. Logic input. Connect to GND or V
DD to set an I
2C address.
4
A1
I2C Serial Bus Address Selection Pin. Logic input. Connect to GND or V
DD to set an I
2C address.
5
NC
No Connect.
6
NC
No Connect.
7
NC
No Connect.
8
NC
No Connect.
9
INT
Overtemperature and Undertemperature Indicator. Logic output. Power-up default setting is as an active low
comparator interrupt. Open-drain configuration. A pull-up resistor is required, typically 10 kΩ.
10
CT
Critical Overtemperature Indicator. Logic output. Power-up default polarity is active low. Open-drain configuration.
A pull-up resistor is required, typically 10 kΩ.
11
GND
Analog and Digital Ground.
12
V
DD
Positive Supply Voltage (2.7 V to 5.5 V). The supply should be decoupled with a 0.1 µF ceramic capacitor to ground.
13
NC
No Connect.
14
NC
No Connect.
15
NC
No Connect.
16
NC
No Connect.
