YEV09T06 6A DC-DC POL Converter
4.5V to 13.8V Input 0.59V to 5.1V Output
Data Sheet
ZD-02094 Rev 1.1, 25-Mar-09
www.power-one.com
Page 7 of 12

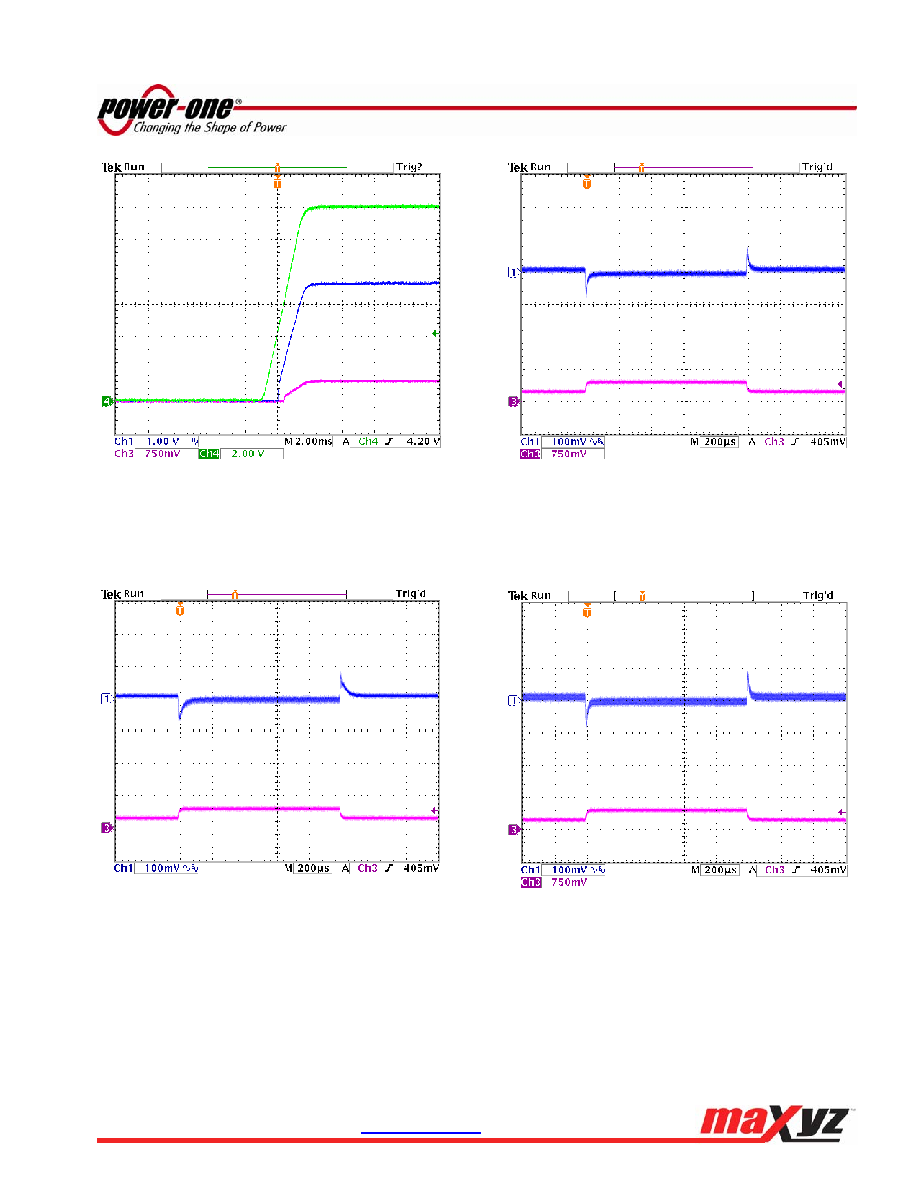

Figure 10. Typical Start-Up with application of Vin
(Vo = 3.3Vdc, Io = 6A). Ch1 – Vout, Ch3 – Iout, Ch4
– Vin. Scale=10A/div
5.3
Transient Response
Figure 11. Transient Response to Dynamic Load Change
from 50% to 100% of full load (Vin=12V,
Vo=0.6Vdc). Ch3 – Iout. Scale=10A/div
Figure 12. Transient Response to Dynamic Load Change
from 50% to 100% of full load (Vin=12V,
Vo=3.3Vdc). Ch3 – Iout. Scale=10A/div
Figure 13. Transient Response to Dynamic Load Change
from 50% to 100% of full load (Vin=12V,
Vo=5.0Vdc). Ch3 – Iout. Scale=10A/div
