E70-R Datasheet(PDF) 3 Page - Gamewell-FCI by Honeywell

No. de pieza E70-R
Descripción Electrónicos  Cooper-Wheelock E Series Low-Profile Speakers & Speaker Strobes
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  GAMEWELL-FCI [Gamewell-FCI by Honeywell]
Página de inicio  http://www.gamewell-fci.com
Logo GAMEWELL-FCI - Gamewell-FCI by Honeywell

E70-R Datasheet(HTML) 3 Page - Gamewell-FCI by Honeywell

  E70-R Datasheet HTML 1Page - Gamewell-FCI by Honeywell E70-R Datasheet HTML 2Page - Gamewell-FCI by Honeywell E70-R Datasheet HTML 3Page - Gamewell-FCI by Honeywell E70-R Datasheet HTML 4Page - Gamewell-FCI by Honeywell
Zoom Inzoom in Zoom Outzoom out
 3 / 4 page
background image

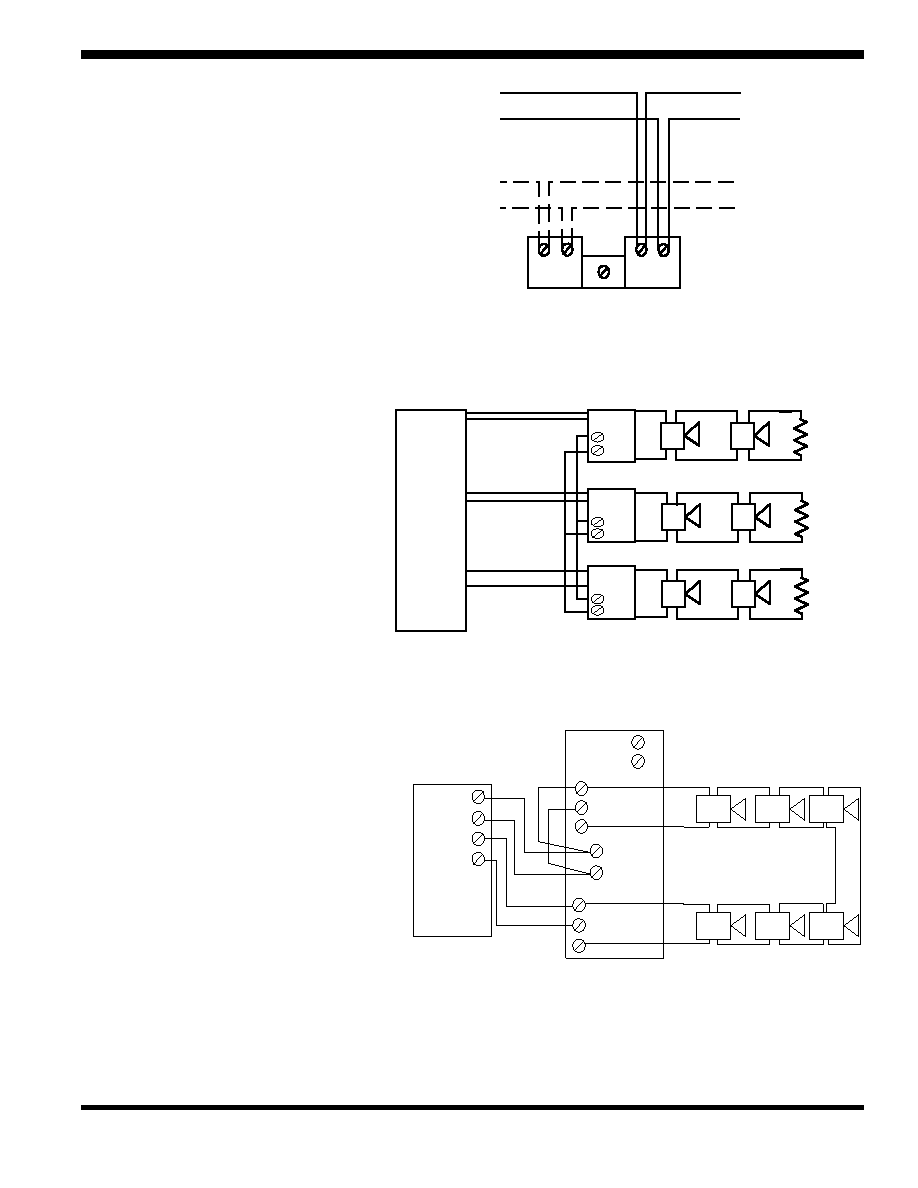

Wiring Diagram
SERIES E SPEAKER & STROBE
OPERATE INDEPENDENTLY
(NON-SYNC OR SYNC)
SERIES E SPEAKER STROBES
SYNCHRONIZED WITH MULTIPLE
DSM MODULES
Note: Figure shows interconnection to strobe through sync
module. Speaker portion requires 2 separate conductors to
FACP.
E Low Profile Speakers & Strobes
CS-2242 09/01/06
Page 3 of 4
SERIES E SPEAKER STROBE
APPLIANCES SYNCHRONIZED WITH
DSM MODULE SINGLE CLASS “A”
F
A
C
P
DSM #3
Audible NAC Cir
.
Strobe NAC Cir.
DSM #2
DSM #1
Strobe NAC Cir.
Strobe NAC Cir.
Audible NAC Cir
.
Audible NAC Cir
.
E
E
E
E
E
E
Sync
Sync
Sync
+
-
+
+
-
-
DSM Interconnecting wiring shown. Maximum of
twenty (20)
DSM
+ OUT 2
+OUT 1
+ IN 1
+ IN 2
MINUS 1
MINUS 2
+
-
-
+
SYNC
AUDIBLE
STROBE
NAC
CIRCUIT
OUT
STROBE
NAC
CIRCUIT
RETURN
FACP
E
E
E
E
E
E
TO NEXT
APPLIANCE
OR EOLR
FROM
PRECEDING
APPLIANCE
OR VOICE
EVACUATION
PANEL
TO NEXT
STROBE OR
EOLR
FROM
PRECEDING
STROBE, SYNC
MODULE, POWER
SUPPLY OR
FACP
SPEAKER
STROBE
+ -
+
+
-
-
-
++
+
-
-
