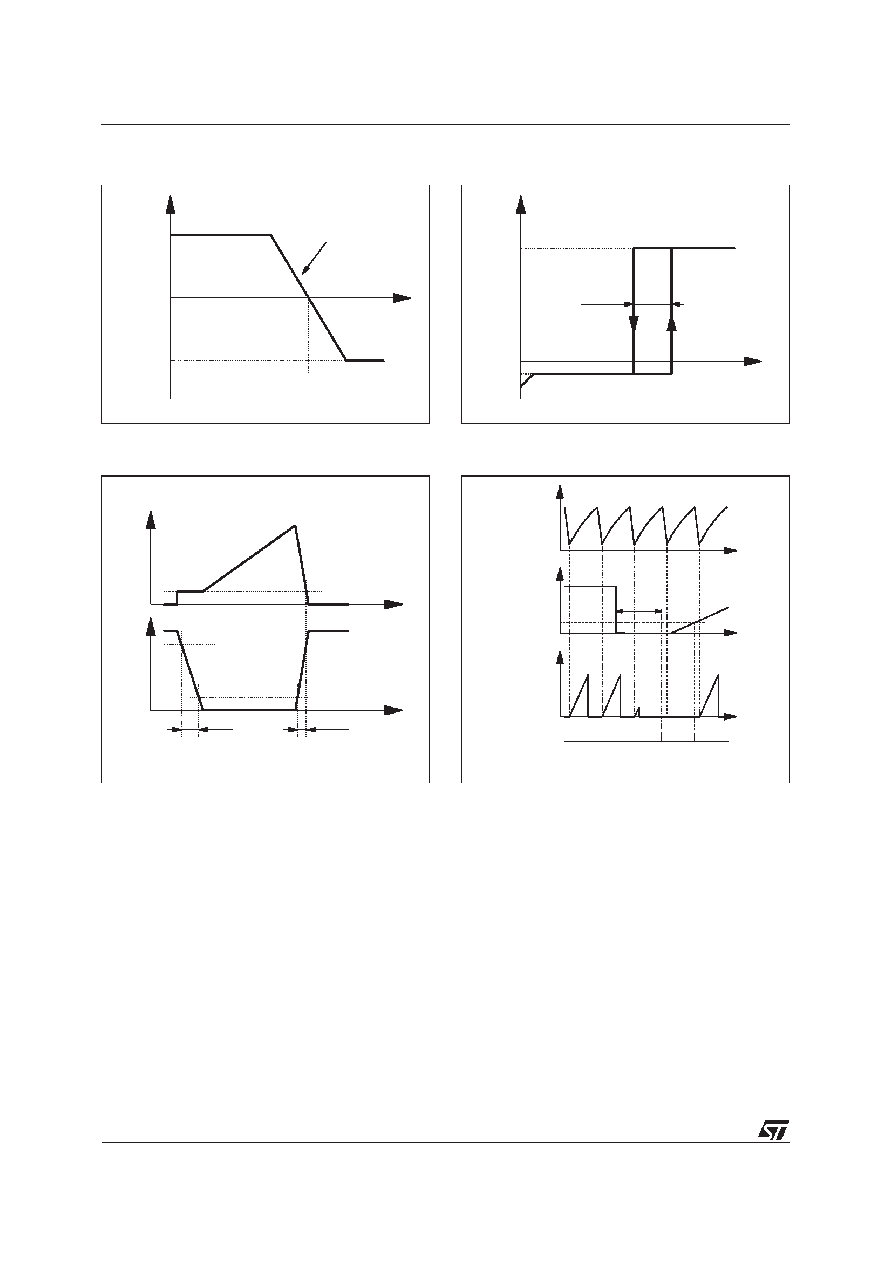

Figure 1:VDD Regulation Point
ICOMP
ICOMPHI
ICOMPLO
VDDreg
0
VDD
Slope =
Gm in mA/V
FC00150
Figure 3: Transition Time
ID
VDS
t
t
tf
tr
10% Ipeak
10% VD
90% VD
FC00160
Figure 2: Undervoltage Lockout
VDDon
IDDch
IDD0
VDD
VDDoff
VDS =70 V
Fsw = 0
IDD
VDDhyst
FC00170
Figure 4: Shut Down Action
VCOMP
VOSC
ID
t
tDISsu
t
t
ENABLE
DISABLE
ENABLE
VCOMPth
FC00060
VIPer20B / VIPer20BSP
6/17
