Section 20 USB Function Module (USB)
Rev. 2.00 Sep. 24, 2008 Page 1029 of 1468
REJ09B0412-0200
Notes:
1.
2.
To protect this LSI from being damaged, use the IC (such as HD74LV-A Series) which can
be applied voltage even when the system power is turned off.
Prevent noise from the VBUS pin while the USB is performing communication.
Vcc
VBUS
(5 V)
Vcc
(3.3 V)
DrVcc
(3.3 V)
USD+
D+
VBUS*2
PM4
Vcc
*1
Vcc
*1
USD-
DrVss
Vss
GND
D-
USB connector
On-chip transceiver
External pull-up
control circuit
supporting full-speed
PULLUP_E
USB
1.5 k
Ω

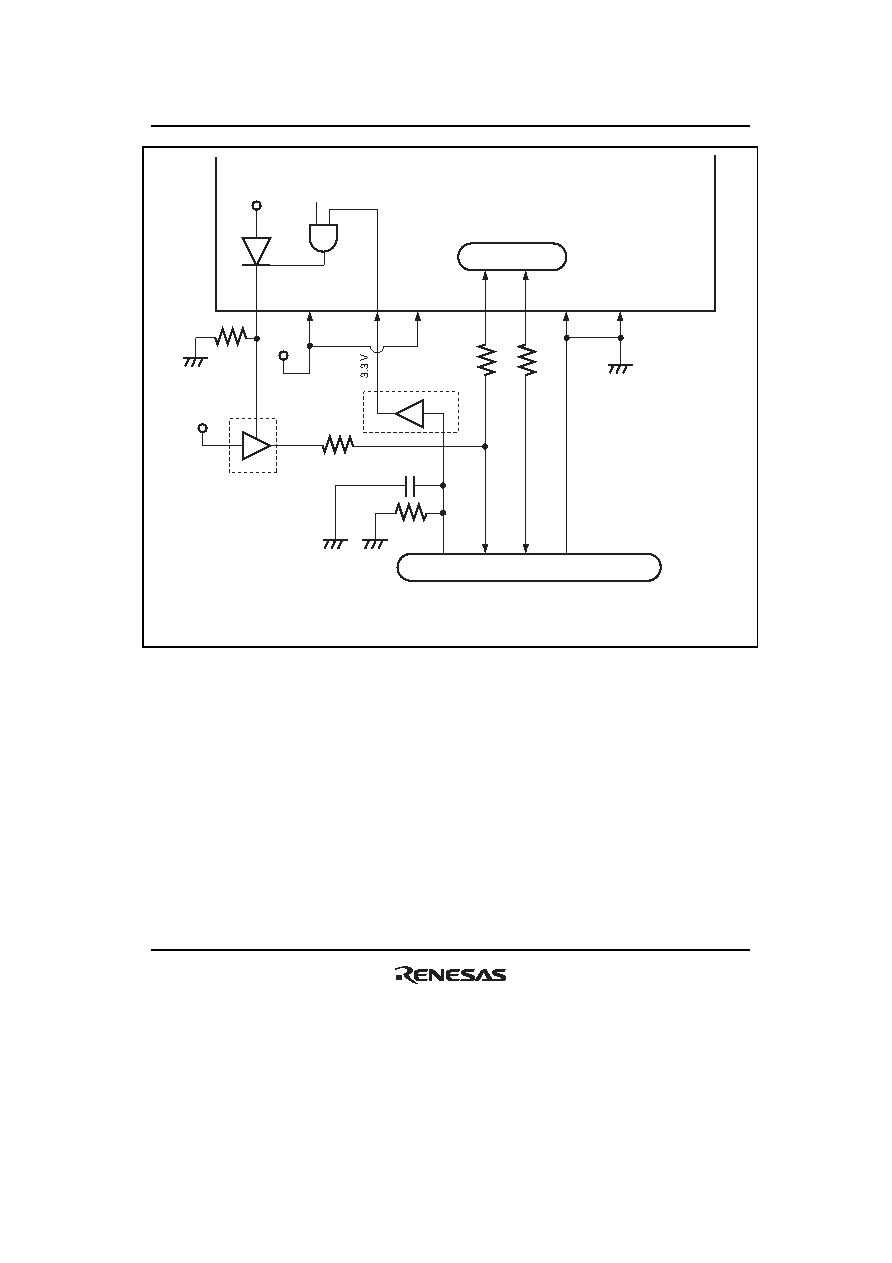

Figure 20.25 Example of Circuitry in Self Power Mode
