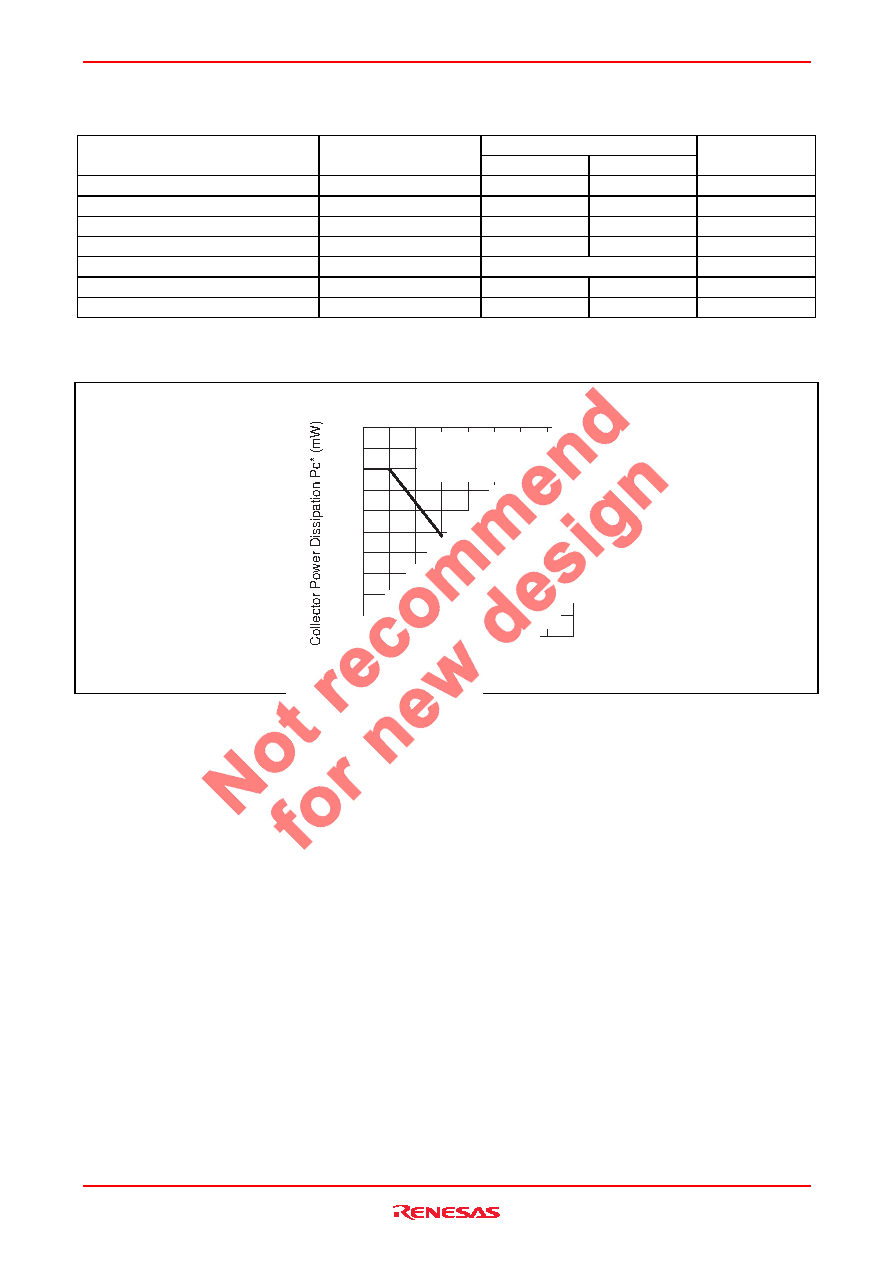

HTT1129E
Rev.2.00 Aug 10, 2005 page 2 of 8
Absolute Maximum Ratings
(Ta = 25
°C)
Ratings
Item
Symbol
Q1
Q2
Unit
Collector to base voltage
VCBO
15
15
V
Collector to emitter voltage
VCEO
6
6
V
Emitter to base voltage
VEBO
1.5
0.8
V
Collector current
IC
80
50
mA
Collector power dissipation
PC
Total 200*
mW
Junction temperature
Tj
150
150
°C
Storage temperature
Tstg
–55 to
+150
–50 to +150
°C
Note: *Value on PCB. (FR–4 (13 x 13 x 0.635 mm)).
0
50
100
150
200
Collector Power Dissipation Curve
Ambient temperature Ta (
°C)
250
200
150
100
50
*Value on PCB.
(FR–4 (13 x13 x 0.635 mm))
2 devices total
