3804 Group (Spec. H)

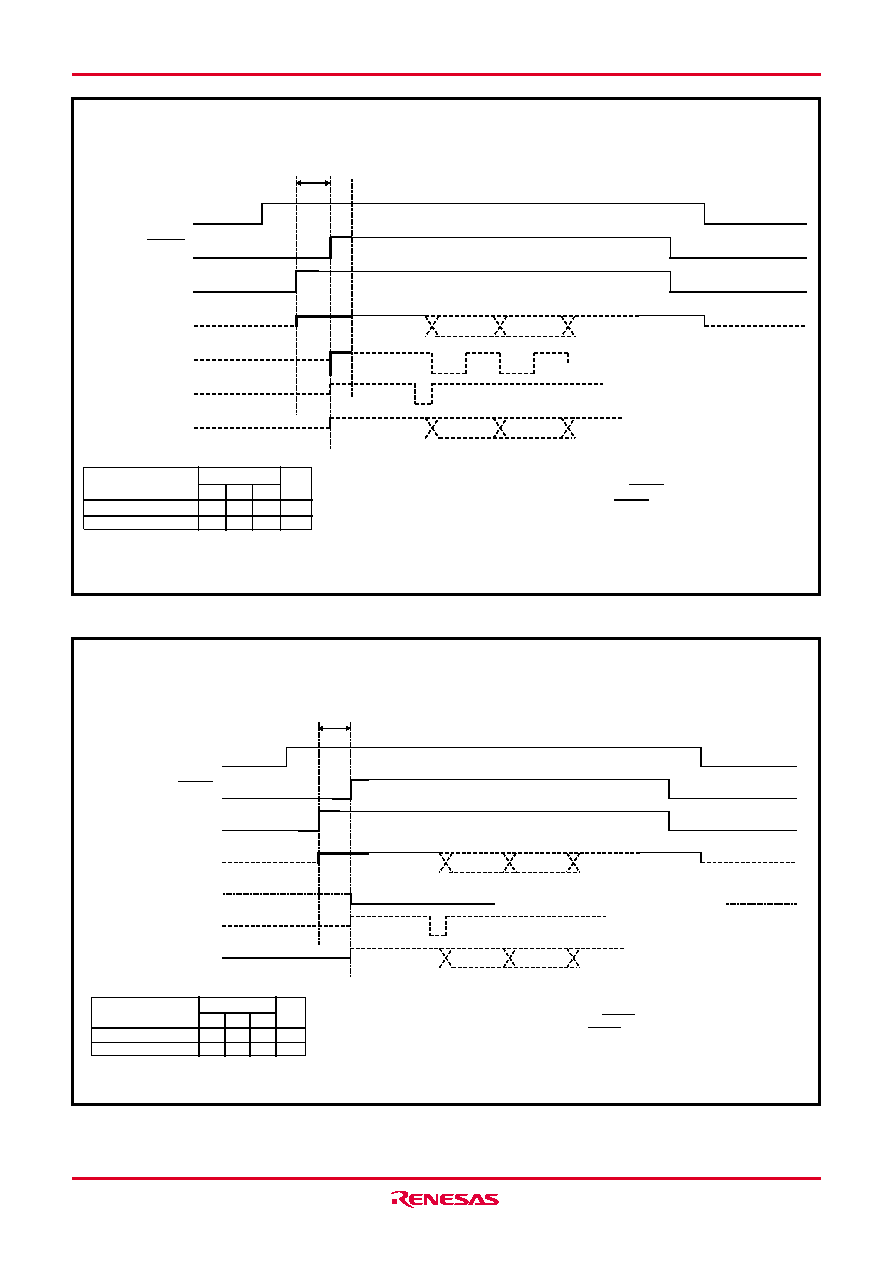

Fig. 91 Operating waveform for standard serial I/O mode 1
Fig. 92 Operating waveform for standard serial I/O mode 2
Power source
RESET
CNVSS
P45(TXD)
P46(SCLK)
P47(BUSY)
P44(RXD)
td(CNVSS-RESET)
td(P45-RESET)
Symbol
td(CNVss-RESET)
td(P45-RESET)
Limits
Min. Typ. Max.
Unit
0
0
–
–
ms
ms
Notes: In the standard serial I/O mode 1, input “H” to the P46 pin.
Be sure to set the CNVss pin to “H” before rising RESET.
Be sure to set the P45 pin to “H” before rising RESET.
Power source
RESET
CNVSS
P45(TXD)
P47(BUSY)
P44(RXD)
P46(SCLK)
td(CNVSS-RESET)
td(P45-RESET)
Symbol
td(CNVss-RESET)
td(P45-RESET)
Limits
Min. Typ. Max.
Unit
0
0
–
–
ms
ms
Notes: In the standard serial I/O mode 2, input “H” to the P46 pin.
Be sure to set the CNVss pin to “H” before rising RESET.
Be sure to set the P45 pin to “H” before rising RESET.
