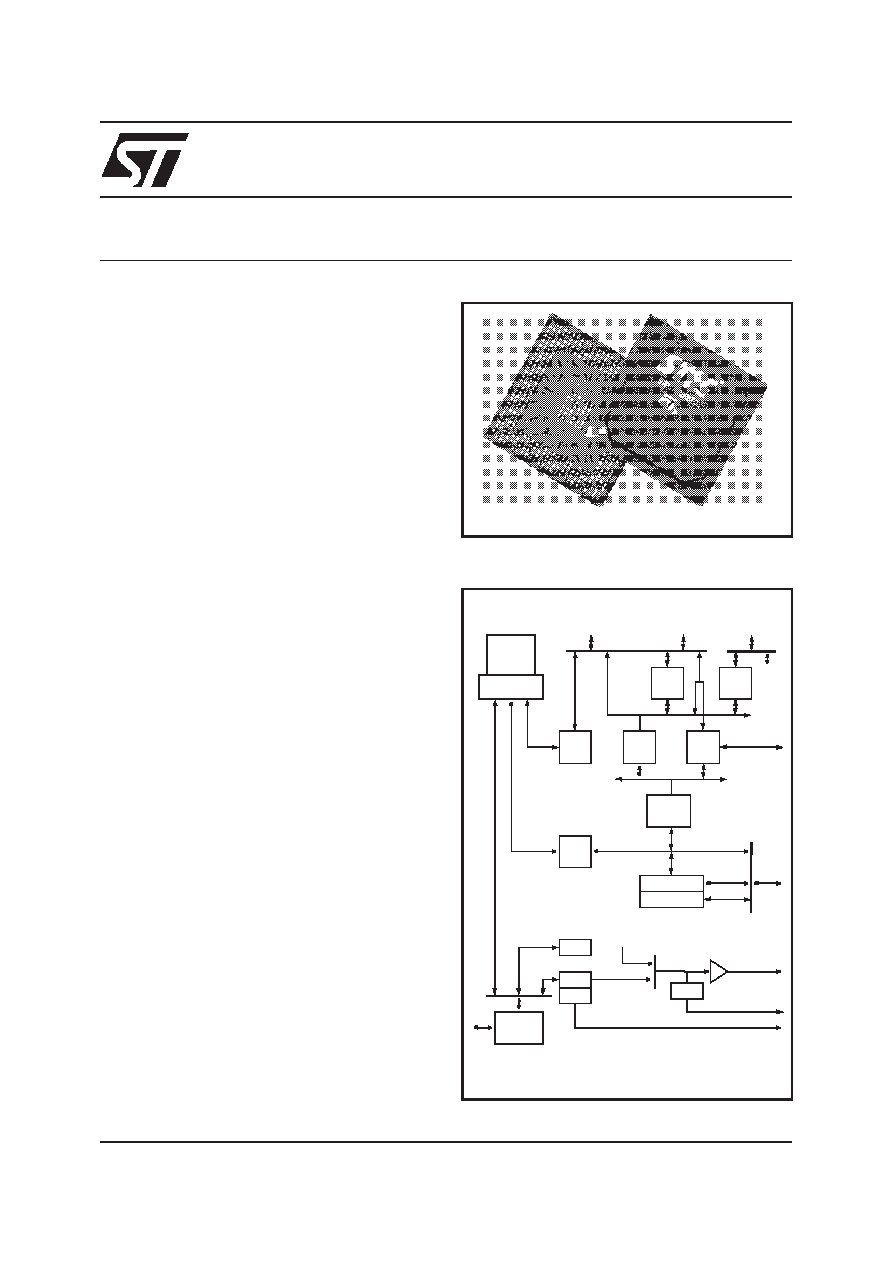

1 / 55 page  ® STPC INDUSTRIAL PC Compatible Embedded Microprocessor 1/55 5/11/99 Issue 1.1 ISA I/F Figure 1. Logic Diagram s POWERFUL X86 PROCESSOR s 64-BIT BUS ARCHITECTURE s 64-BIT 66MHz DRAM CONTROLLER s SVGA GRAPHICS CONTROLLER s 135MHz RAMDAC s UMA ARCHITECTURE s TFT DISPLAY CONTROLLER s PCI MASTER / SLAVE / ARBITER s LOCAL BUS INTERFACE s ISA (MASTER/SLAVE) INTERFACE -INCLUDING THE IPC s PC-CARD INTERFACE - PCMCIA - CARDBUS s I/O FEATURES - PC/AT+ KEYBOARD CONTROLLER - PS/2 MOUSE CONTROLLER - 2 SERIAL PORTS - 1 PARALLEL PORT s IPC - DMA CONTROLLER - INTERRUPT CONTROLLER - TIMER / COUNTERS s POWER MANAGEMENT STPC INDUSTRIAL OVERVIEW The STPC Industrial integrates a fully static x86 processor, fully compatible with standard fifth gen- eration x86 processors, and combines it with pow- erful chipset, graphics, TFT, PC-Card, Local Bus, keyboard, mouse, serials and parallel interfaces to provide a single Industrial oriented PC compatible subsystem on a single device. The performance of the device is comparable with the performance of a typical P5 generation system. The device is packaged in a 388 Plastic Ball Grid Array (PBGA). TFT ext x86 Core Host I/F Serial2 // Port Serial1 Kbd Mouse DRAM I/F VGA GE PCI m/s Local Bus I/F PCMCIA CARDBUS PCI BUS IPC 82C206 PCI CONTROLLE R ISA BUS CRTC HW Cursor Monitor TFT Output SYNC Output TFT I/F PBGA388 |
