DESIGN GUIDELINES
Issue 1.0 - July 24, 2002
89/111
6.3.11. KEYBOARD/MOUSE INTERFACE
The STPC integrates a PC/AT+ keyboard and
PS/2 mouse controller. The only external devices
needed
are
the
ESD
protection
circuits
KBMF01SC6. Figure 6-17 describes a typical
implementation using a dual minidin connector.

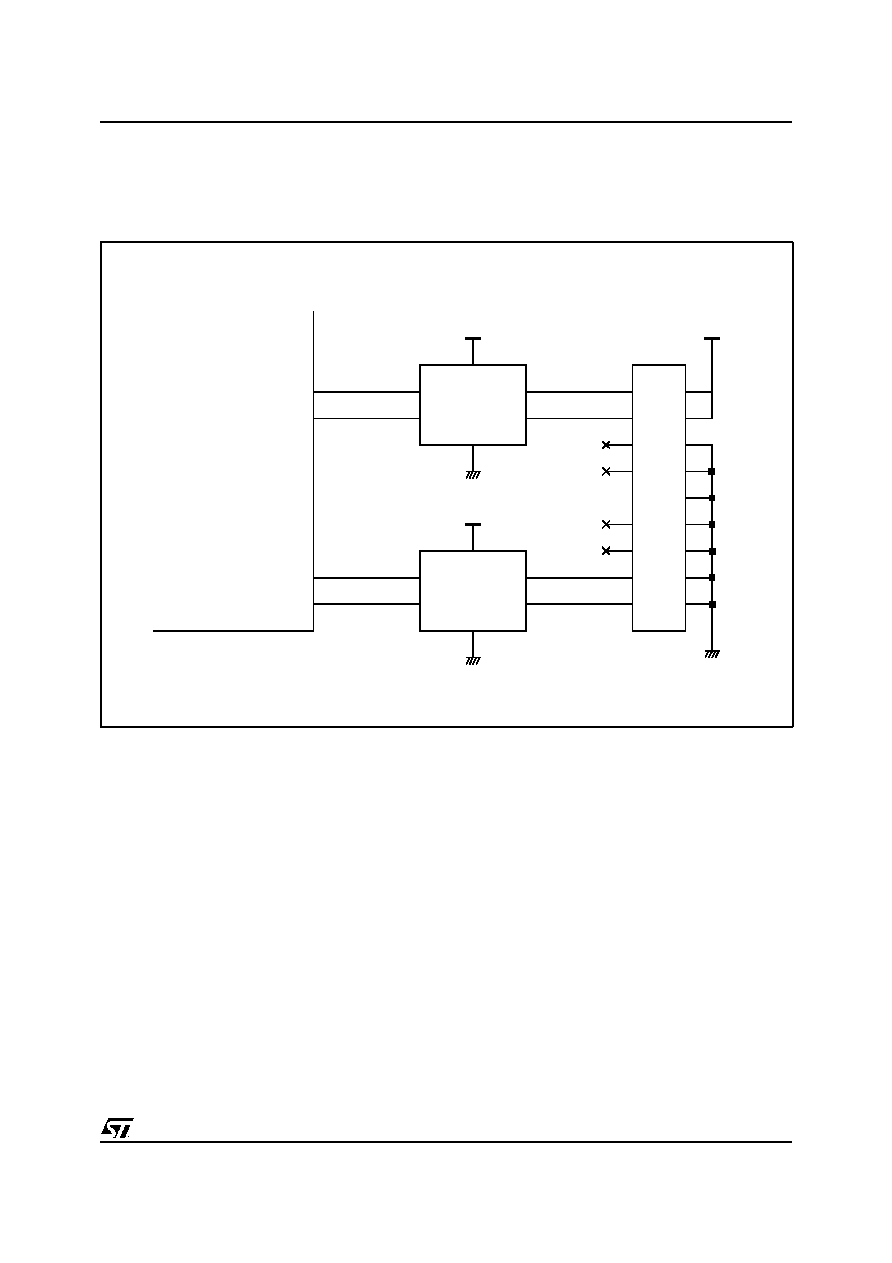

Figure 6-17. Typical Keyboard / Mouse implementation
MDATA
MCLK
KBDATA
KBCLK
STPC
5V
MiniDIN
GND
KBMF01SC6
4
13
3
7
8
9
12
16
17
5V
KBMF01SC6
5V
10
14
1
5
2
6
11
15
