MECHANICAL DATA
36/48
Issue 1.7 - February 8, 2000

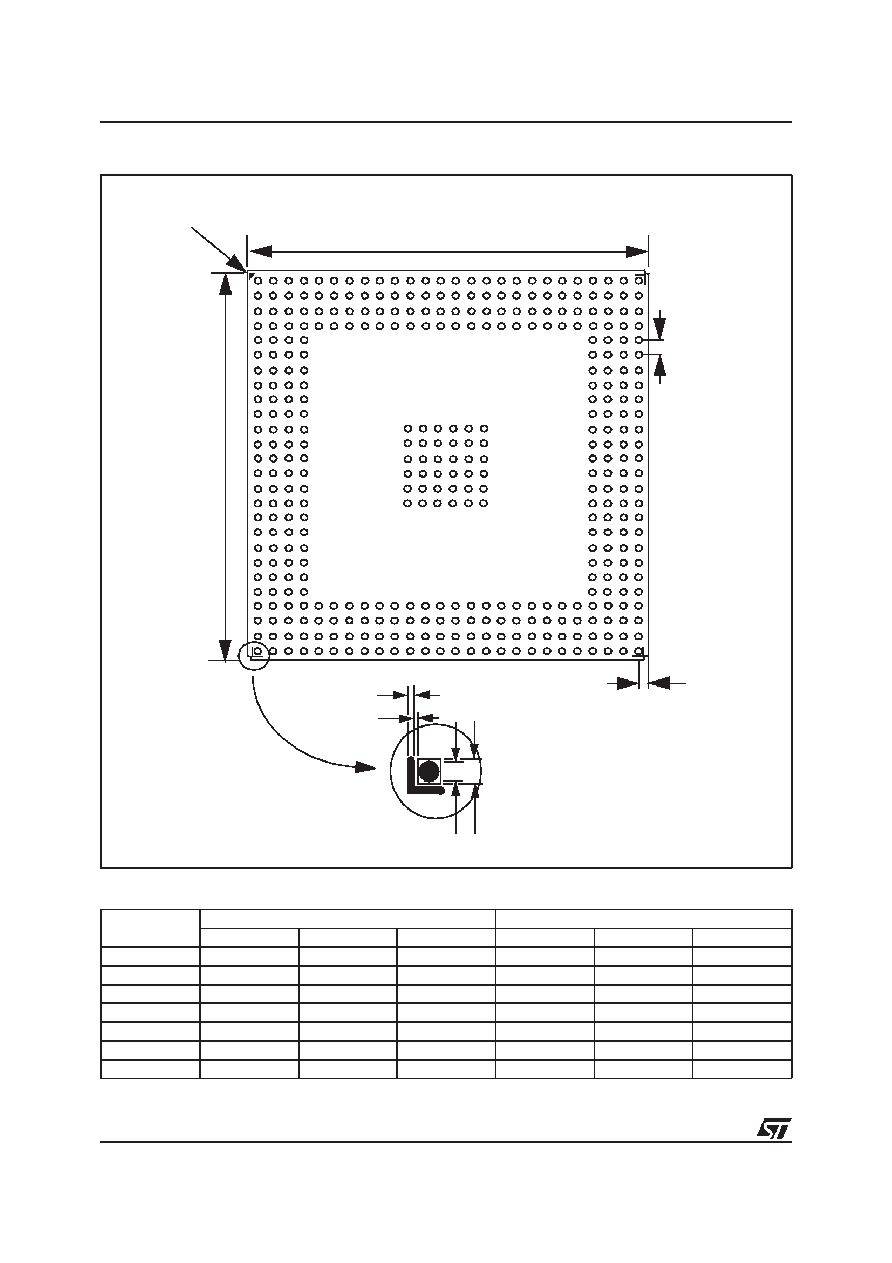

Figure 5-2. 388-pin PBGA Package - PCB Dimensions
Table 5-1. 388-pin PBGA Package - PCB Dimensions
Symbols
mm
inches
Min
Typ
Max
Min
Typ
Max
A
34.95
35.00
35.05
1.375
1.378
1.380
B
1.22
1.27
1.32
0.048
0.050
0.052
C
0.58
0.63
0.68
0.023
0.025
0.027
D
1.57
1.62
1.67
0.062
0.064
0.066
E
0.15
0.20
0.25
0.006
0.008
0.001
F
0.05
0.10
0.15
0.002
0.004
0.006
G
0.75
0.80
0.85
0.030
0.032
0.034
A
A
B
Detail
A1 Ball Pad Corner
D
F
E
G
C
