AD8253
Rev. 0 | Page 14 of 24
20mV/DIV
2µs/DIV

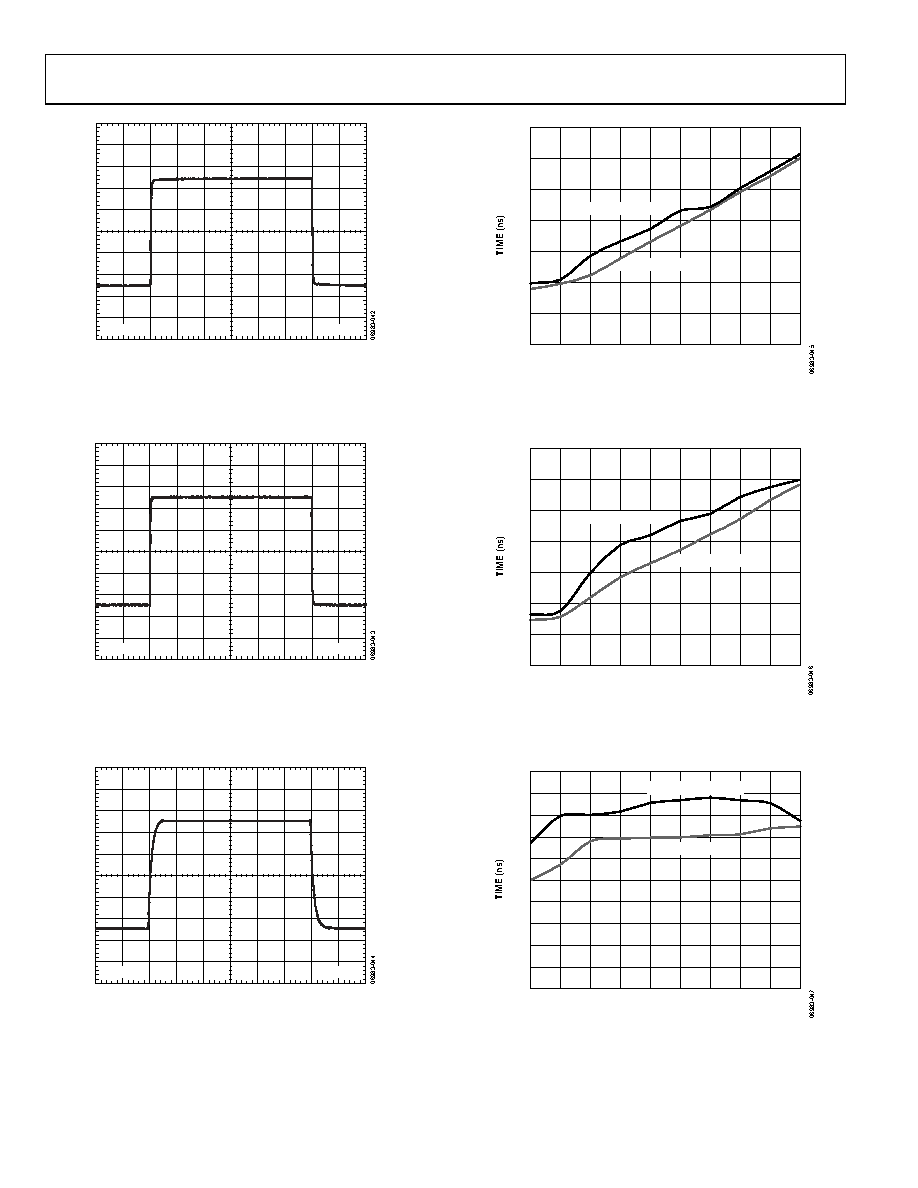

Figure 42. Small-Signal Response,
G = 10, RL = 2 kΩ, CL = 100 pF
20mV/DIV
20µs/DIV
Figure 43. Small-Signal Response,
G = 100, RL = 2 kΩ, CL = 100 pF
20mV/DIV
20µs/DIV
Figure 44. Small-Signal Response, G = 1000, RL = 2 kΩ, CL = 100 pF
1200
1400
0
22
STEP SIZE (V)
1000
800
600
400
200
0
4
6
8
10
12
14
16
18
SETTLED TO 0.01%
SETTLED TO 0.001%
Figure 45. Settling Time vs. Step Size, G = 1, RL = 10 kΩ
1200
1400
0
22
STEP SIZE (V)
1000
800
600
400
200
0
4
6
8
1012
141618
SETTLED TO 0.01%
SETTLED TO 0.001%
Figure 46. Settling Time vs. Step Size, G = 10, RL = 10 kΩ
1200
0
22
STEP SIZE (V)
1000
800
600
2000
1800
1600
1400
400
200
0
4
6
8
10
12
14
16
18
SETTLED TO 0.01%
SETTLED TO 0.001%
Figure 47. Settling Time vs. Step Size, G = 100, RL = 10 kΩ
