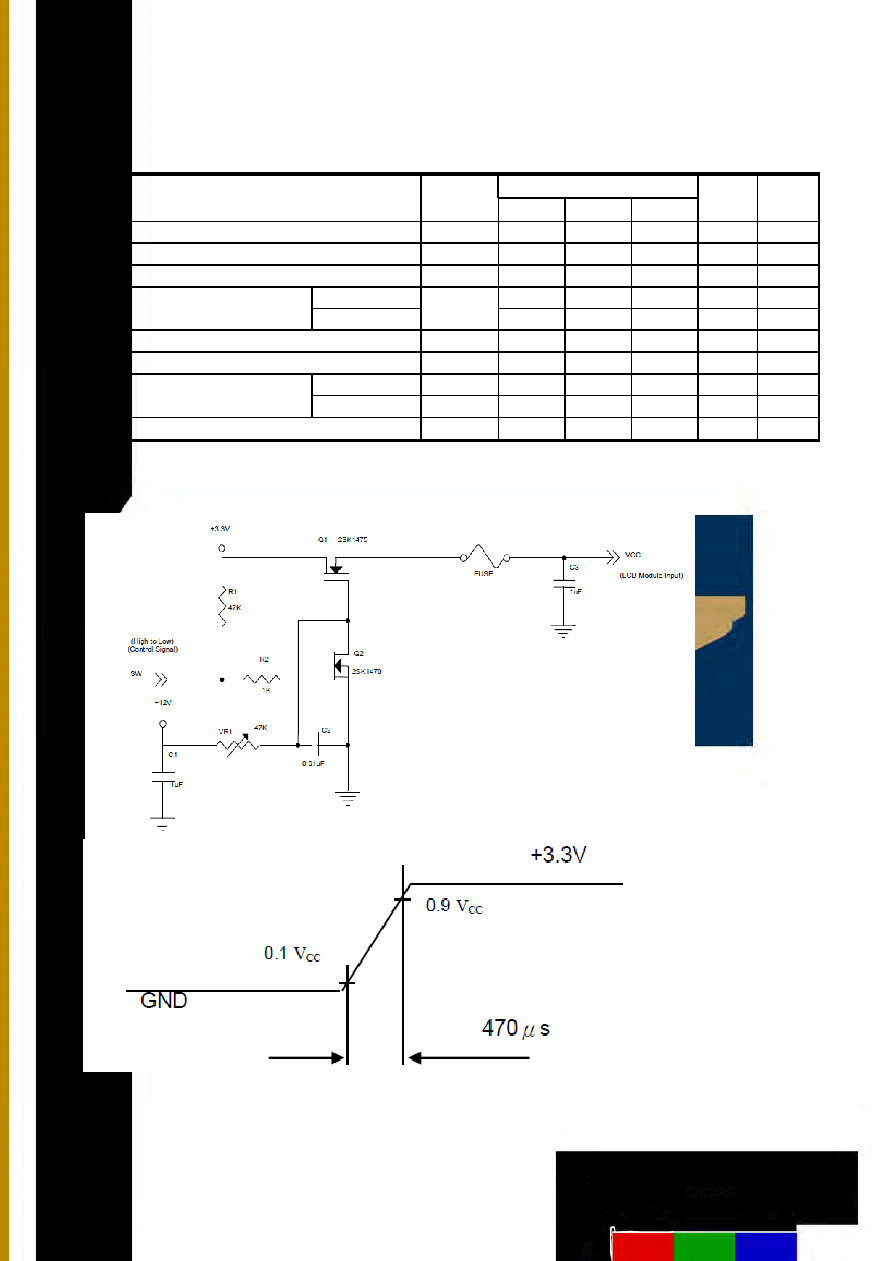

8.Electrical Characteristics
8.1. TFT LCD MODULE
Parameter
Symbol
Value
Unit
Note
Min.
Typ.
Max.
Power Supply Voltage
VC
C
3.0
3.3
3.6
V
-
Ripple Voltage
VRP
-
-
100
mVp-
p
Rush Current
IRUS
H
-
-
(2.0)
A
(2
)
Power Supply Current
White
lcc
-
(800)
(960)
mA
(3)a
Black
-
(670)
(800)
mA
(3)b
LVDS differential input voltage
Vid
200
-
600
mV
LVDS common input voltage
Vi
c
1.0
1.2
1.4
V
Differential Input
Voltage for LVDS
Receiver Threshold
“H” Level
VI
H
-
-
100
mV
-
“L” Level
VIL
-100
-
-
mV
-
Terminating Resistor
RT
-
100
-
Ohm
-
Note (1) The module should be always operated within
above ranges. Note (2) Measurement Conditions:
Page 12 of 21
