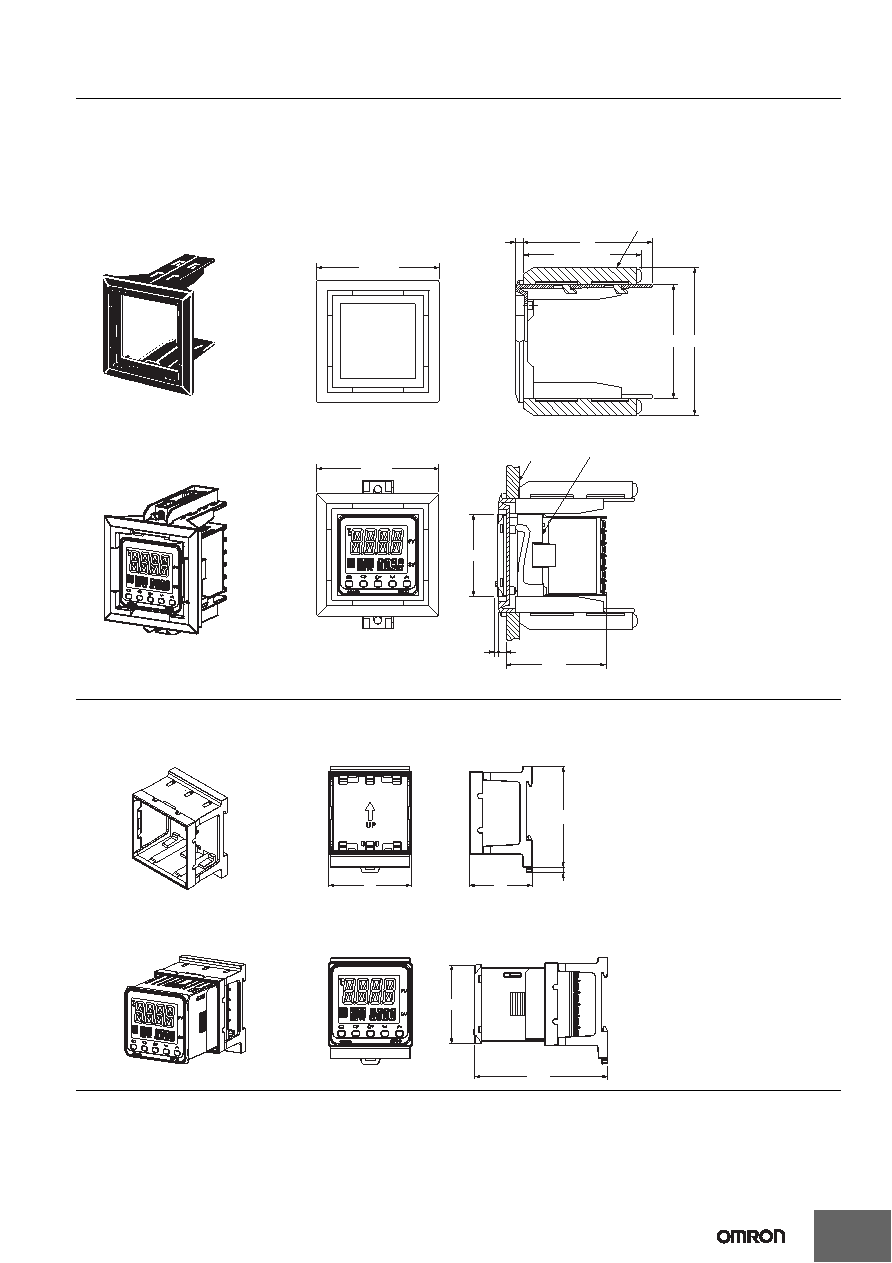

E5CC/E5CC-B/E5CC-U

Adapter

DIN Track Mounting Adapter

Fixture (Accessory)

69.6 to 77.6

67 × 67

72 × 72

4.7

72 × 72

48 × 48

Panel (1 to 8 mm)

Mounting Adapter

Y92F-30

(Accessory)

62.8

To back of the E5CC

2.2

4.7

Y92F-45

Mounted to E5CC

Note: 1. Use this Adapter when the Front Panel has already been prepared for the E5B

2. Only black is available.

3. You cannot use the E58-CIFQ2 USB-Serial Conversion Cable if you use the Y92F-45 Adapter. To use the USB-Serial

Conversion Cable to make the settings, do so before you mount the Temperature Controller in the panel.

4. You cannot use it together with the Y92F-49 Adapter that is enclosed with the Controller.

3.5

80.5

Mounted to E5CC

Note: This Adapter cannot be used together with the Terminal Cover.

Remove the Terminal Cover to use the Adapter.

Y92F-52

This Adapter is used to mount the

E5CC to a DIN Track.

If you use the Adapter, there is no

need for a plate to mount in the

panel or to drill mounting holes in

the panel.
