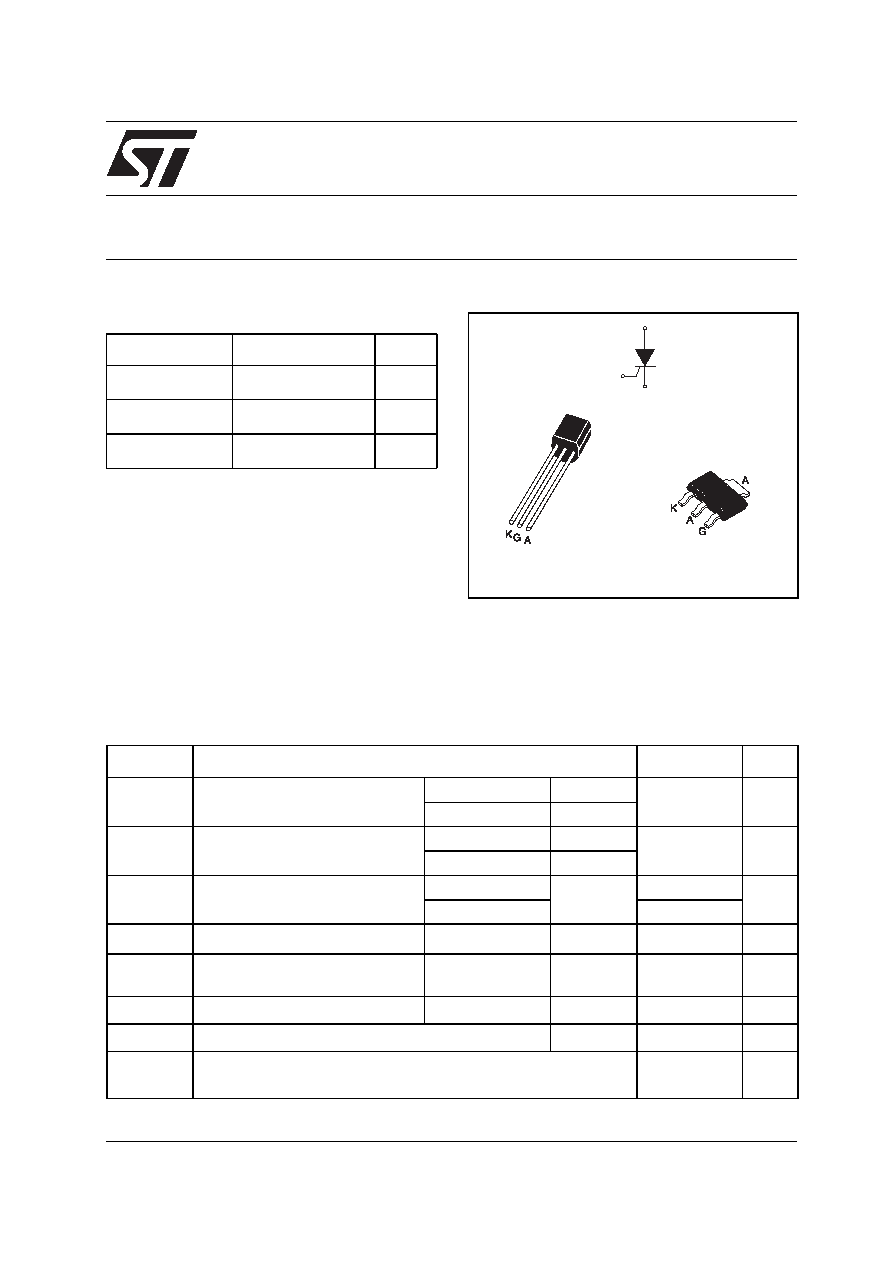

P01 Series

SENSITIVE

0.8A SCRs

September 2000 - Ed: 3

MAIN FEATURES:

DESCRIPTION

Thanks to highly sensitive triggering levels, the

P01 SCR series is suitable for all applications

where available gate current is limited, such as

ground fault circuit interruptors, pilot circuits in

solid state relays, stand-by mode power supplies,

smoke and alarm detectors.

Available in through-hole or surface mount pack-

ages, the voltage capability of this series has been

upgrated since its introduction, to reach 600 V.

Symbol

Value

Unit

IT(RMS)

0.8

A

VDRM/VRRM

400 and 600

V

IGT

5 to 200

µA

ABSOLUTE RATINGS (limiting values)

Symbol

Parameter

Value

Unit

IT(RMS)

RMS on-state current

(180° conduction angle)

TO-92

Tl = 55°C

0.8

A

SOT-223

Tamb = 70°C

IT(AV)

Average on-state current

(180° conduction angle)

TO-92

Tl = 55°C

0.5

A

SOT-223

Tamb = 70°C

ITSM

Non repetitive surge peak on-state

current

tp = 8.3 ms

Tj = 25°C

8

A

tp = 10 ms

7

I

²tI²t Value for fusing

tp = 10ms

Tj = 25°C

0.24

A2S

dI/dt

Critical rate of rise of on-state current

IG = 2 x IGT , tr ≤ 100 ns

F = 60 Hz

Tj = 125°C

50

A/µs

IGM

Peak gate current

tp = 20 µs

Tj = 125°C

1

A

PG(AV)

Average gate power dissipation

Tj = 125°C

0.1

W

Tstg

Tj

Storage junction temperature range

Operating junction temperature range

- 40 to + 150

- 40 to + 125

°C

G

A

K

TO-92

(P01xxA)

SOT-223

(P01xxN)
