AW32901/AW32902/AW32905/
AW32909/AW32910/AW32912
Apr. 2018 V1.0
www.awinic.com.cn
2
Copyright © 2016 SHANGHAI AWINIC TECHNOLOGY CO., LTD

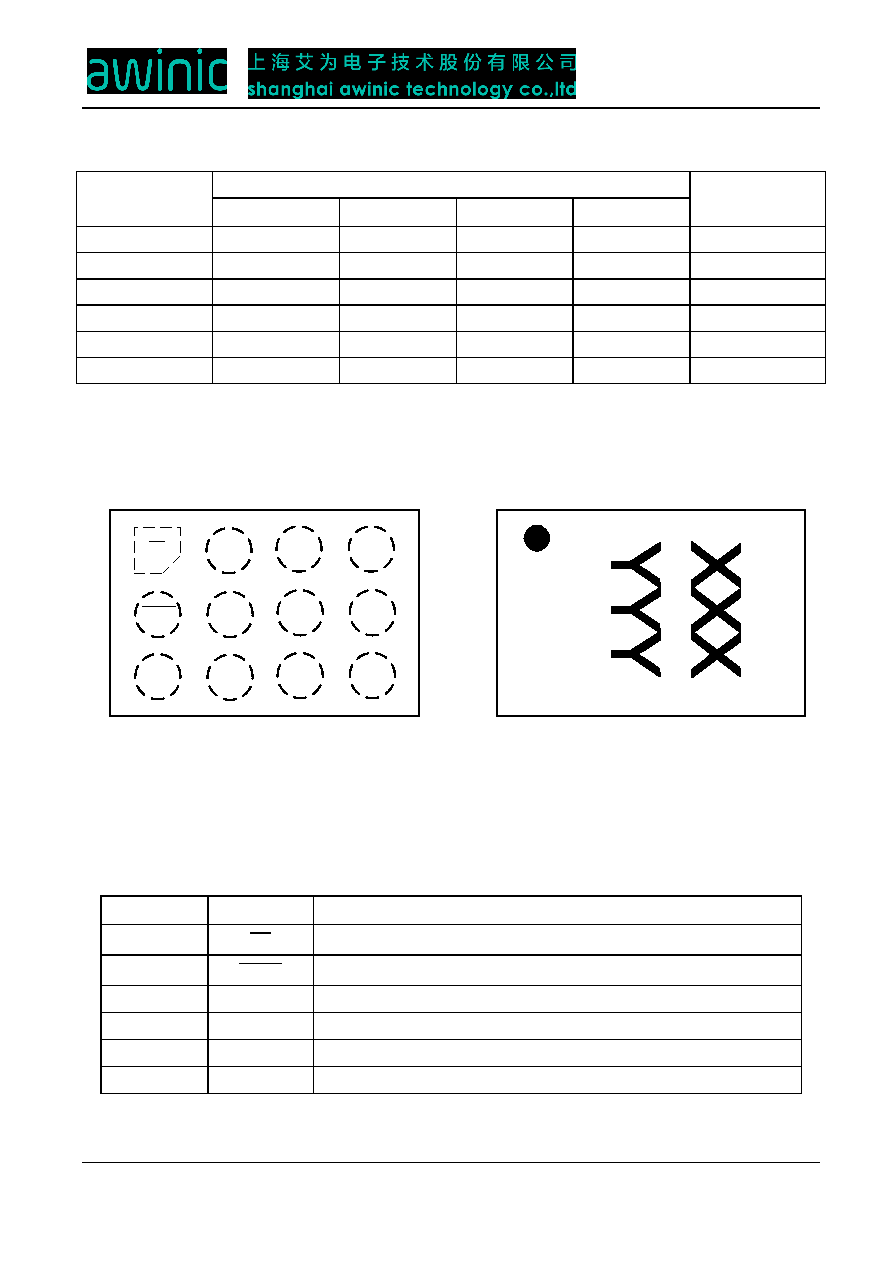

DEVICE COMPARISON TABLE
Device
VIN_OVLO (V)
VIN_OVLO
hysteresis (mV)
Condition
Min.
Typ.
Max.
AW32901
VIN rising
5.83
5.95
6.07
130
AW32902
VIN rising
6.08
6.20
6.32
130
AW32905
VIN rising
6.66
6.80
6.94
140
AW32909
VIN rising
9.78
9.98
10.18
210
AW32910
VIN rising
10.29
10.50
10.71
210
AW32912
VIN rising
13.7
14.0
14.3
280
PIN CONFIGURATION AND TOP MARK
C
B
A
1
2
3
4
OUT
OUT
GND
ACOK
OUT
IN
GND
OVLO
IN
IN
GND
Pin Configuration (TOP VIEW)
1
2
3
4
C
B
A
Marking
XXX
– Marking
YYY
– Production tracking code
EN
Figure 2 Pin Configuration and Top Mark
PIN DEFINITION
Pin
Name
Description
A1
EN
Enable pin, active low
B1
ACOK
Power good flag, active-low, open-drain
C1
OVLO
OVP threshold adjustment pin
C2, C3, B3
IN
Switch input and device power supply
A2, A3, B2
OUT
Switch output
A4, B4, C4
GND
Device ground
