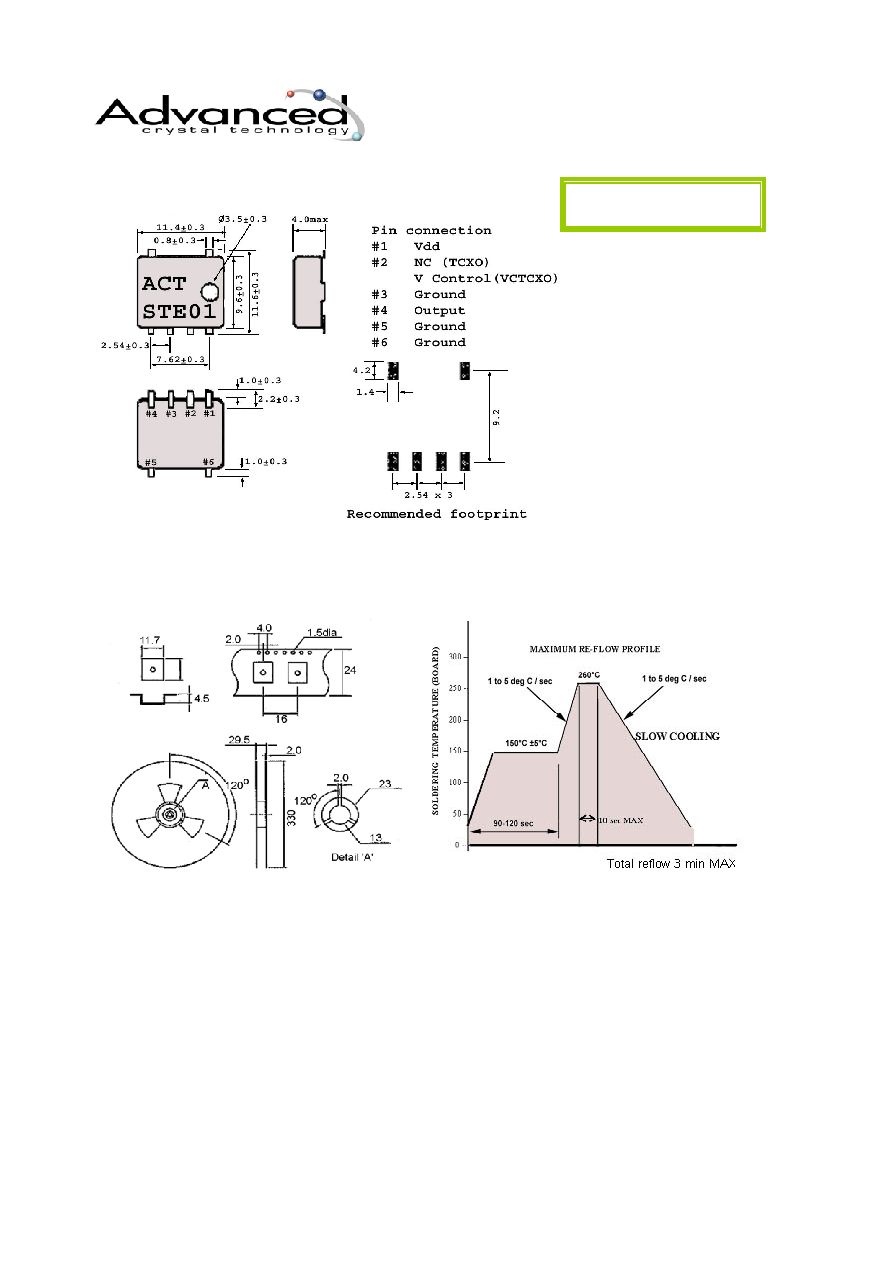

DIMENSIONS (mm)

TAPE AND REEL DIMENSIONS (mm)

MAXIMUM RECOMMENDED REFLOW

STANDARD REEL SIZE 500PCS

Tel :

0044 (0)118 979 1238

Fax :

0044 (0)118 979 1283

email :

info@actcrystals.com

In line with our ongoing policy of product evolvement and improvement, the above specification may be subject to change without notice

For quotations or further information please contact us at:

3 The Business Centre, Molly Millars Lane, Wokingham, Berkshire, RG41 2EY, UK

http://www.actcrystals.com

Please note that all parameters can not necessarily be specified in the same dev

Customer to specify : Frequency, Output, Supply Voltage, Frequency Stability, Operating Temperature Range, Polarity & Package

ACTSTE01 - VCTCXO / TCXO

ISO9001:2000 Registered

Issue: 5 SK

Date: 20/3/06

Pad Surface Material Au

2 of 2
