RL78/D1A
3. ELECTRICAL SPECIFICATIONS (J GRADE PRODUCT)
R01DS0463EJ0120 Rev. 1.20
Page 72 of 135
Mar 31, 2026

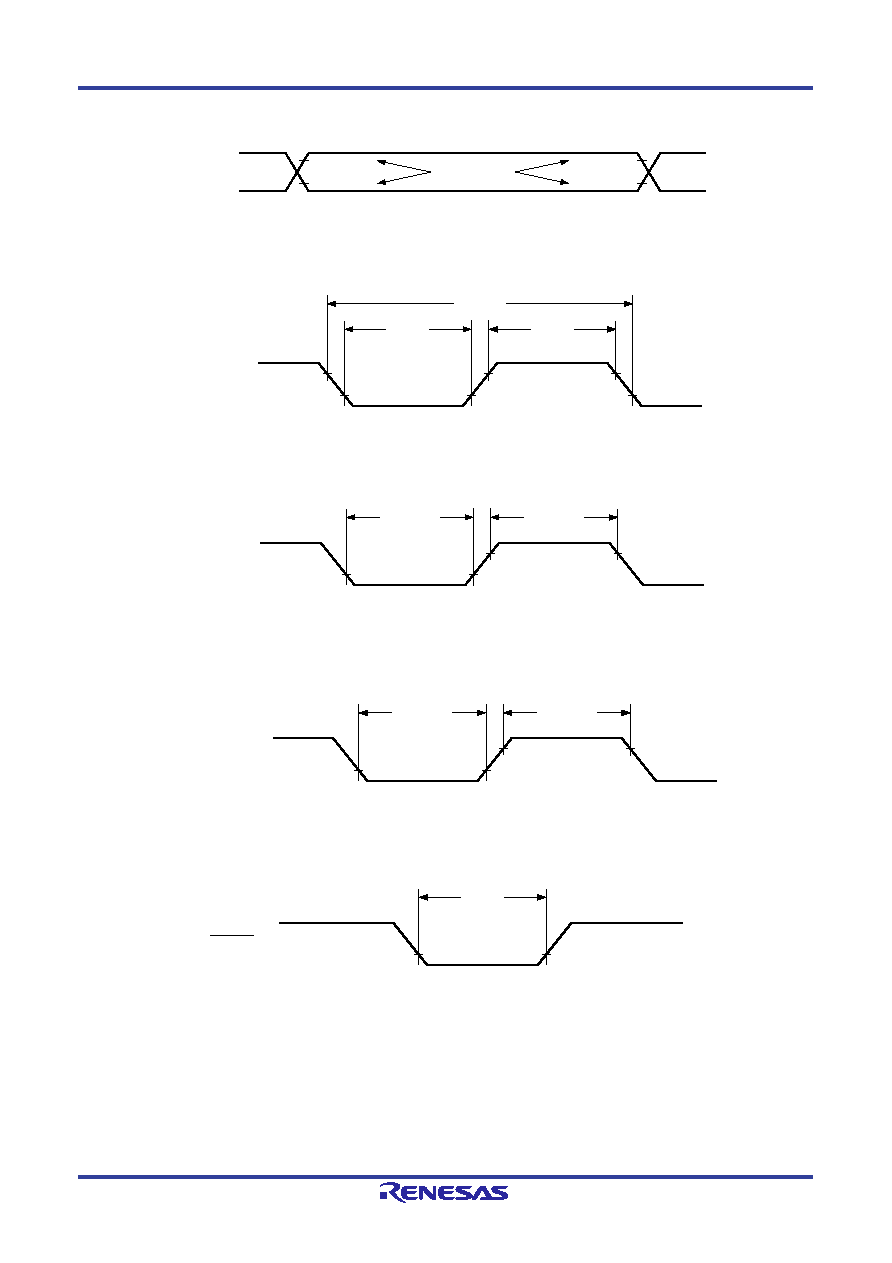

Figure 3-1. AC Timing Test Points
Test points
VIH/VOH
VIL/VOL
VIH/VOH
VIL/VOL
Figure 3-2. External Main System Clock Timing
1/fEX
tEXL
tEXH
VIH
VIL
EXCLK
Figure 3-3. TI Timing
tTIL
tTIH
TI01-TI07
TI10-TI17
TI20-TI27
Figure 3-4. Interrupt Request Input Timing
tINTL
tINTH
INTP0-INTP5
INTPLR0, 1
Figure 3-5. RESET
____________
Input Timing
tRSL
RESET
