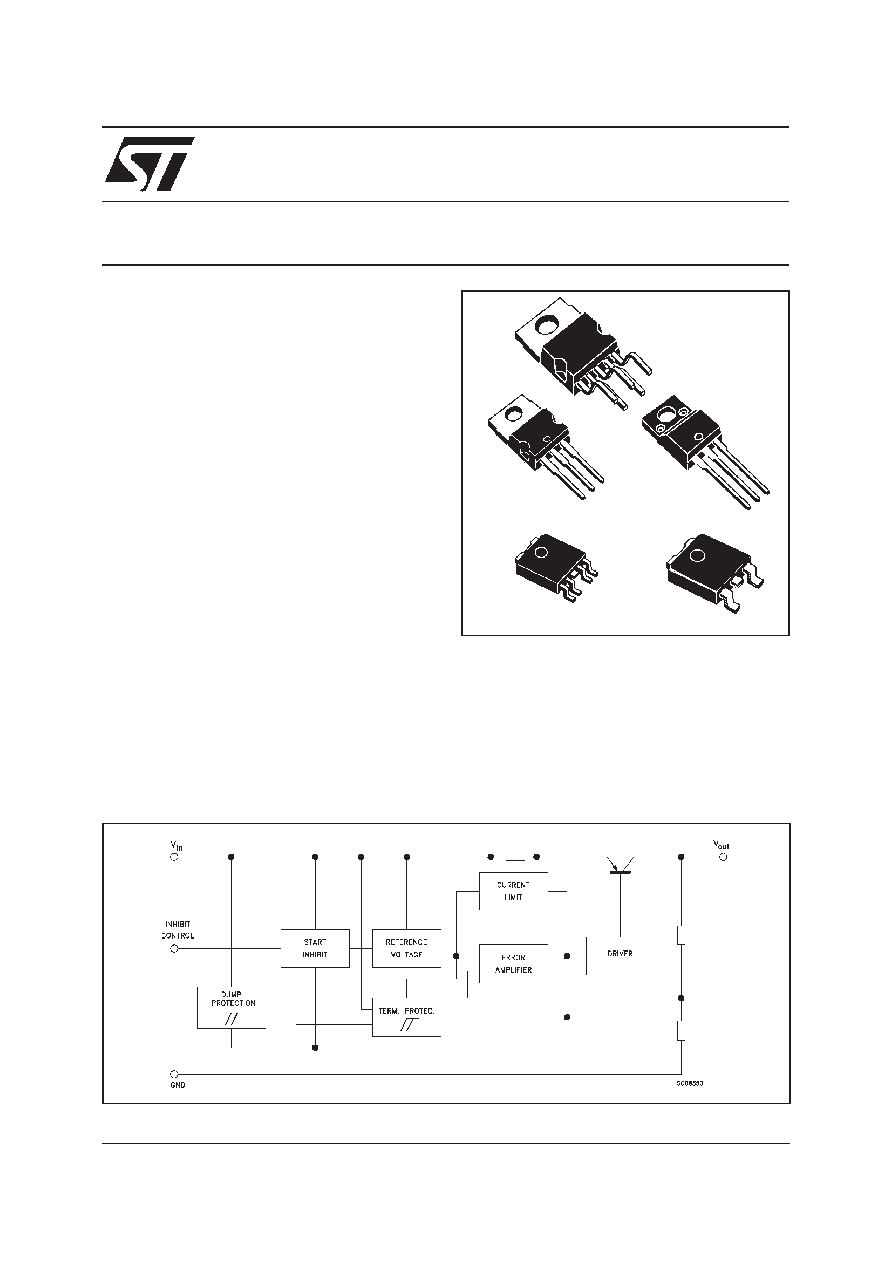

1 / 32 page

LF00AB/C

SERIES

VERY LOW DROP

VOLTAGE REGULATORS WITH INHIBIT

July 1999

s

VERY LOW DROPOUT VOLTAGE (0.45V)

s

VERY LOW QUIESCENT CURRENT

(TYP. 50

µA IN OFF MODE, 500µAIN ON

MODE)

s

OUTPUT CURRENT UP TO 500 mA

s

LOGIC-CONTROLLED ELECTRONIC

SHUTDOWN

s

OUTPUT VOLTAGES OF 1.25; 1.5; 1.8; 2.5;

2.7; 3; 3.3; 3.5; 4; 4.5; 4.7; 5; 5.2; 5.5; 6; 8; 8.5;

9; 12V

s

INTERNAL CURRENT AND THERMAL LIMIT

s

ONLY 2.2

µF FOR STABILITY

s

AVAILABLE IN

± 1% (AB) OR ± 2% (C)

SELECTION AT 25

oC

s

SUPPLY VOLTAGE REJECTION: 80 db (TYP.)

s

TEMPERATURE RANGE: -40 TO 125

oC

DESCRIPTION

The LF00 series are very Low Drop regulators

available

in

PENTAWATT,

TO-220,

ISOWATT220, DPAK and PPAK package and in

a wide range of output voltages.

The very Low Drop voltage (0.45V) and the very

low quiescent current make them particularly

suitable for Low Noise, Low Power applications

and specially in battery powered systems.

In the 5 pins configuration (PENTAWATT and

PPAK) a Shutdown Logic Control function is

available (pin 2, TTL compatible). This means

that when the device is used as a local regulator,

it is

possible to put a part of the board in

standby, decreasing the total power consumption.

In the three terminal configuration the device has

the same electrical performance, but is fixed in

SCHEMATIC DIAGRAM

PPAK

DPAK

PENTAWATT

TO-220

ISOWATT220

®
