ADL5382
Rev. 0 | Page 12 of 28
DISTRIBUTIONS FOR fRF = 2700 MHz
26
27
28
29
30
31
0
20
40
60
80
100
INPUT IP3 (dBm)
TA = –40°C
TA = +25°C
TA = +85°C

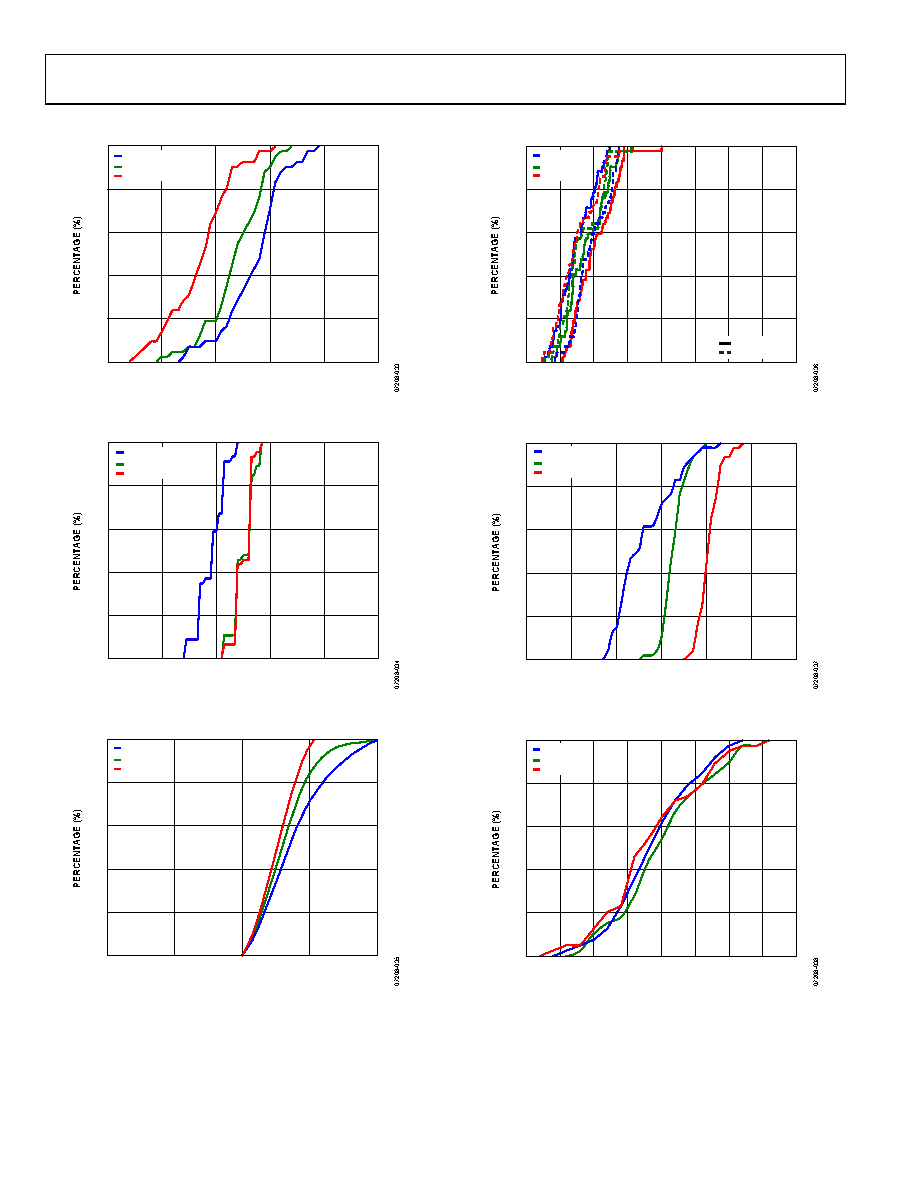

Figure 33. IIP3 Distributions, fRF = 2700 MHz
12
13
14
15
16
17
0
20
40
60
80
100
INPUT P1dB (dBm)
TA = –40°C
TA = +25°C
TA = +85°C
Figure 34. IP1dB Distributions, fRF = 2700 MHz
–0.1
0
0.1
0.2
0.3
0
20
40
60
80
100
GAIN MISMATCH (dB)
TA = –40°C
TA = +25°C
TA = +85°C
Figure 35. IQ Gain Mismatch Distributions, fRF = 2700 MHz
0
20
40
60
80
100
INPUT IP2 (dBm)
45
50
55
60
65
70
75
80
85
TA = –40°C
TA = +25°C
TA = +85°C
I CHANNEL
Q CHANNEL
Figure 36. IIP2 Distributions for I Channel and Q Channel, fRF = 2700 MHz
16.0
16.5
17.0
17.5
18.0
18.5
19.0
0
20
40
60
80
100
NOISE FIGURE (dB)
TA = –40°C
TA = +25°C
TA = +85°C
Figure 37. Noise Figure Distributions, fRF = 2700 MHz
–1.00
–0.75
–0.50
–0.25
0
0.25
0.50
0.75
1.00
0
20
40
60
80
100
QUADRATURE PHASE ERROR (Degrees)
TA = –40°C
TA = +25°C
TA = +85°C
Figure 38. IQ Quadrature Phase Error Distributions, fRF = 2700 MHz
