Data Sheet
ADL8124
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 13 of 29

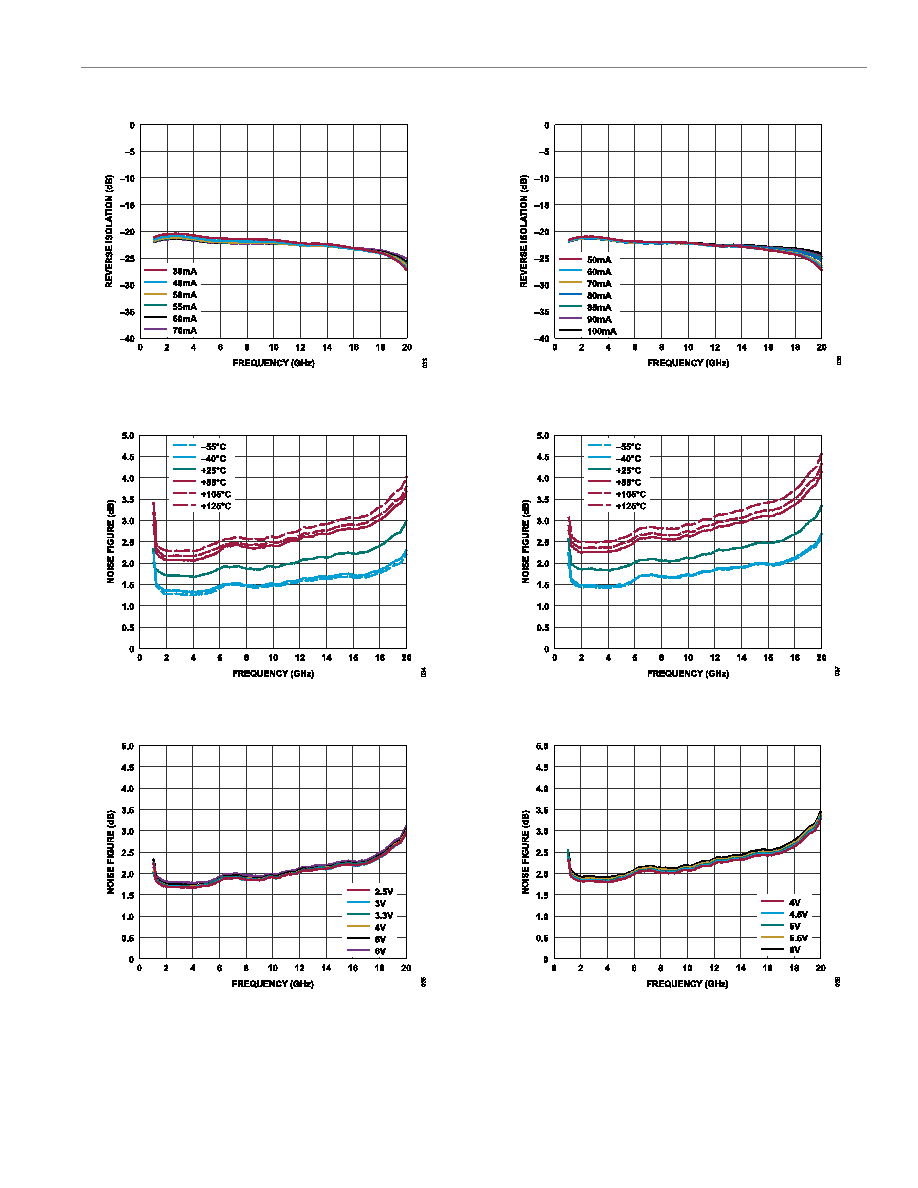

Figure 33. Reverse Isolation vs. Frequency for Various IDQ Values,
1GHz to 20GHz, VDD = 3.3V
Figure 34. Noise Figure vs. Frequency for Various Temperatures,
1GHz to 20GHz, VDD = 3.3V, IDQ = 55mA, RBIAS = 1540Ω
Figure 35. Noise Figure vs. Frequency for Various Supply Voltages,
1GHz to 20GHz, IDQ = 55mA
Figure 36. Reverse Isolation vs. Frequency for Various IDQ Values,
1GHz to 20GHz, VDD = 5V
Figure 37. Noise Figure vs. Frequency for Various Temperatures,
1GHz to 20GHz, VDD = 5V, IDQ = 85mA, RBIAS = 1731Ω
Figure 38. Noise Figure vs. Frequency for Various Supply Voltages,
1GHz to 20GHz, IDQ = 85mA
