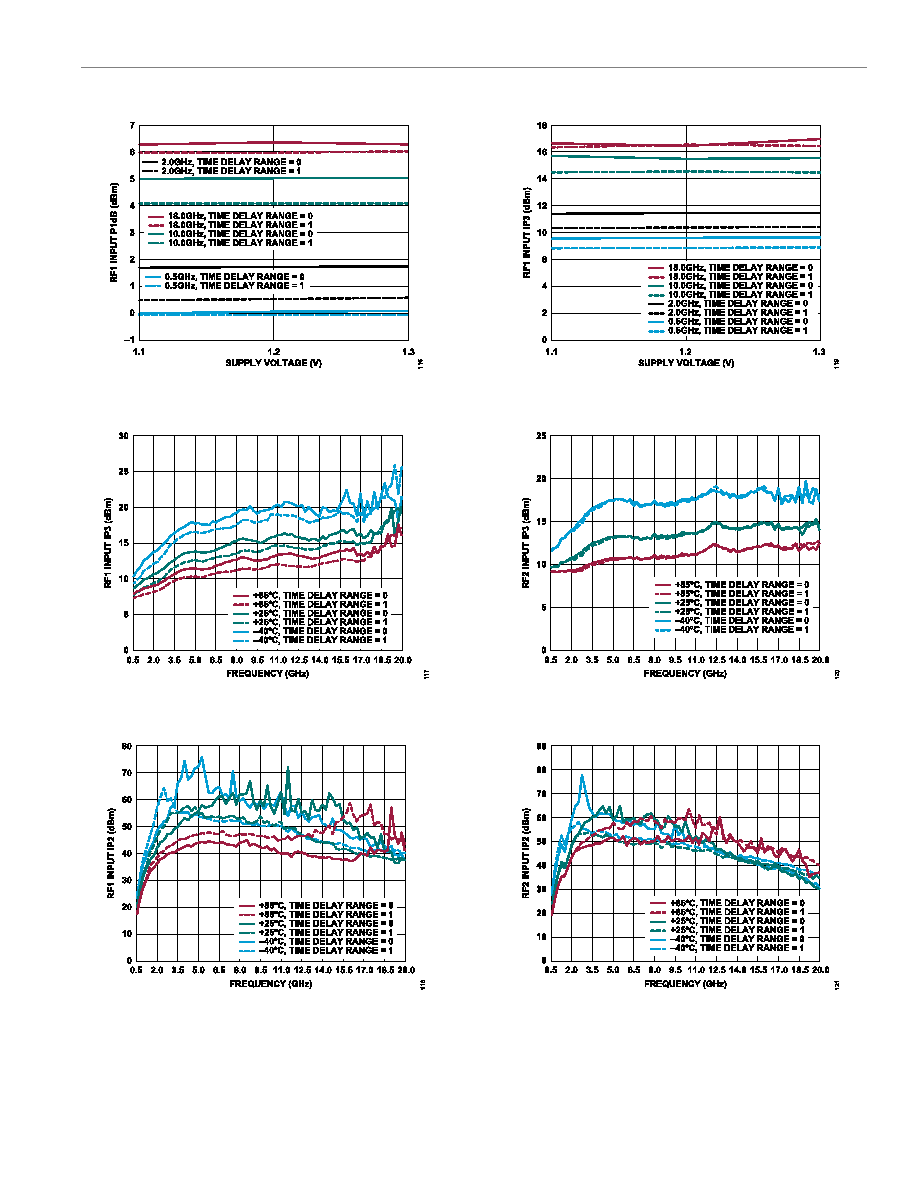

Data Sheet
ADAR4002
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. A | 34 of 66
Figure 107. RF1 Input P1dB vs. Supply Voltage over Frequency and Time
Delay Range
Figure 108. RF1 Input IP3 vs. Frequency over Temperature and Time Delay
Range
Figure 109. RF1 Input IP2 vs. Frequency over Temperature and Time Delay
Range
Figure 110. RF1 Input IP3 vs. Supply Voltage over Frequency and Time Delay
Range
Figure 111. RF2 Input IP3 vs. Frequency over Temperature and Time Delay
Range
Figure 112. RF2 Input IP2 vs. Frequency over Temperature and Time Delay
Range
