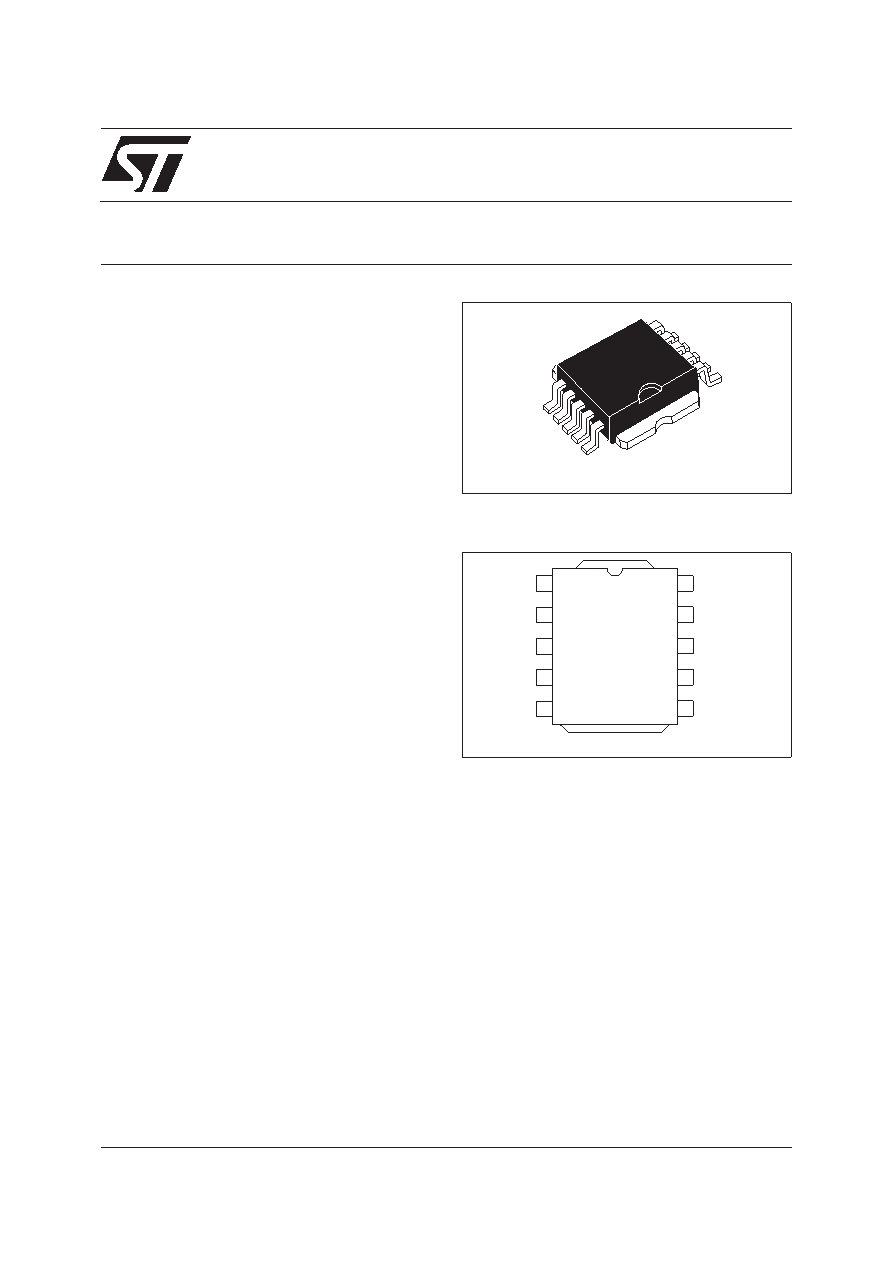

CLP270M
®
OVERVOLTAGE AND OVERCURRENT
PROTECTION FOR TELECOM LINE
Application Specific Discretes
A.S.D.
PRELIMINARY DATASHEET
PowerSO-10TM
SCHEMATIC DIAGRAM
MAIN APPLICATIONS
Any telecom equipment submitted to transient
overvoltages and lightning strikes such as :
s
Analog and ISDN line cards
s
PABX
s
Main Distribution Frames
s
Primary protection modules
DESCRIPTION
The
CLP270M
is
designed
to
protect
telecommunication equipment. It provides both a
transient
overvoltage
protection
and
an
overcurrent protection.
It is housed in a PowerSO-10
TM package.
FEATURES
s
DUAL BIDIRECTIONAL PROTECTION DEVICE.
s
HIGH PEAK PULSE CURRENT :
Ipp = 100A (10/1000
µs SURGE)
Ipp = 500A (2/10
µs SURGE)
s
MAX. VOLTAGE AT SWITCHING-ON : 380V
s
MIN. CURRENT AT SWITCHING-OFF : 150mA
s
FAILURE STATUS OUTPUT PIN
BENEFITS
s
Both primary and secondary protection levels in
one device.
s
Voltage and current controlled suppression.
s
Surface
Mounting
with
PowerSO-10TM
package.
s
Line card cost reduction thanks to the very low
power rating of external components required :
balanced resistors, ring relay, low voltage SLIC
protection.
NC
FS
TIPS
RINGS
TIPL
TIPL
TIPL
RING L
RING L
RING L
TAB is connected to GND
1
July 2003 - Ed: 7C
