CSM datasheet(1/1 Pages) BLOCKMASTER-ELECTRONICS

No. de pieza	CSM

Descripción Electrónicos	This specification applies to – CSFXX002 - Plug

PDF	1 Pages

Scroll/Zoom	100%

Fabricante Electrónico	BLOCKMASTER-ELECTRONICS [BlockMaster Electronics, Inc.]

Página de inicio	https://www.blockmaster.com/

Logo

1 / 1 page

SCOPE: This specification applies to

– CSFXX002 - Plug

SPECIFICATIONS:

Number of poles: 2 -13

Sides configuration: Side stackable female

Pitch: 10 mm

Voltage: 600V

Current: 12A

Wire section: 0.05 - 2.5 mm2 / 30 - 14 AWG

Available approvals: UL, VDE, IMQ, CSA

Screw dimensions: M3

Insertion force per pole: max. 3 N

Withdrawal force per pole: min. 1,5 N

Recommended tightening torque: 0.6Nm

Stripping length: 6 mm

Operating temperature range: - 40°C to +105°C

Contact resistance: <15 mOhm

Insulation resistance: >1 GOhm

Screw material: Nickel-plated copper alloy

Spring contact: Tin-plated copper alloy

Clamp tightening: Nickel-plated copper alloy

Insulating housing material: PA polyamide

Color: Green (Standard)

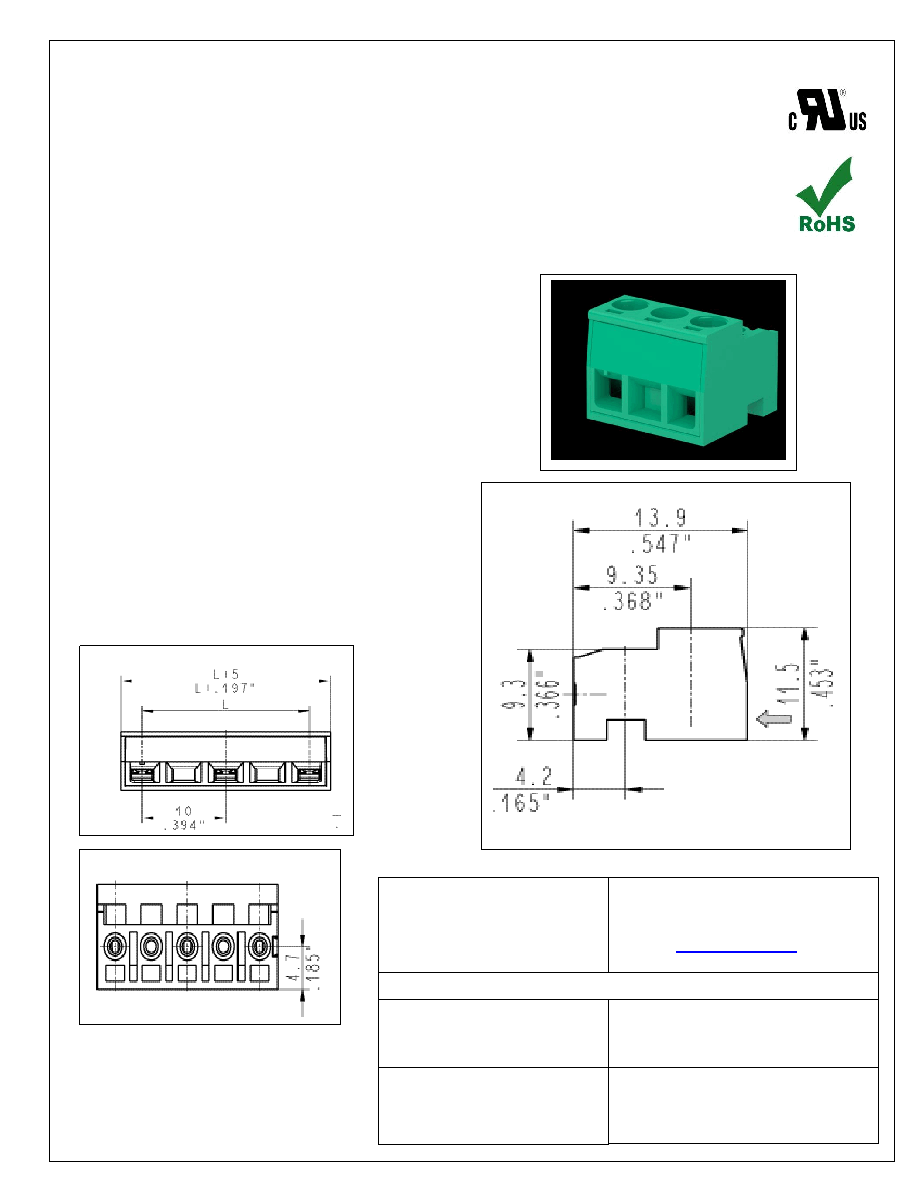

DIMENSIONS:

THE INFORMATION DISCLOSED HEREIN WAS ORIGINATED BY AND

IS THE PROPERTY OF BLOCKMASTER ELECTRONICS INC. AND

EXCEPT FOR USE EXPRESSLY GRANTED TO THE UNITED STATES

GOVERNMENT BLOCKMASTER ELECTRONICS INC.RESERVES ALL

PATENT PROPRIETARY DESIGN, USE, SALE, MANUFACTURING AND

PRODUCTION RIGHTS THERETO. THIS DOES NOT APPLY TO

VENDOR.

Date:

6/11/2017

Plug

Drawing Number:

CSFXX002

All dimensions are in MM unless otherwise specified

BlockMaster Electronics

1400 Howard Street

Elk Grove Village, IL. 60007

Toll Free: 800-595-8881 FAX: 847-956-1690

www.blockmaster.com

BlockMaster

Confidential and

Proprietary

Mates with:

CSM series

CSMH series

CSMD series
