Data Sheet

ADL8140-CSL

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

analog.com

Rev. 0 | 6 of 8

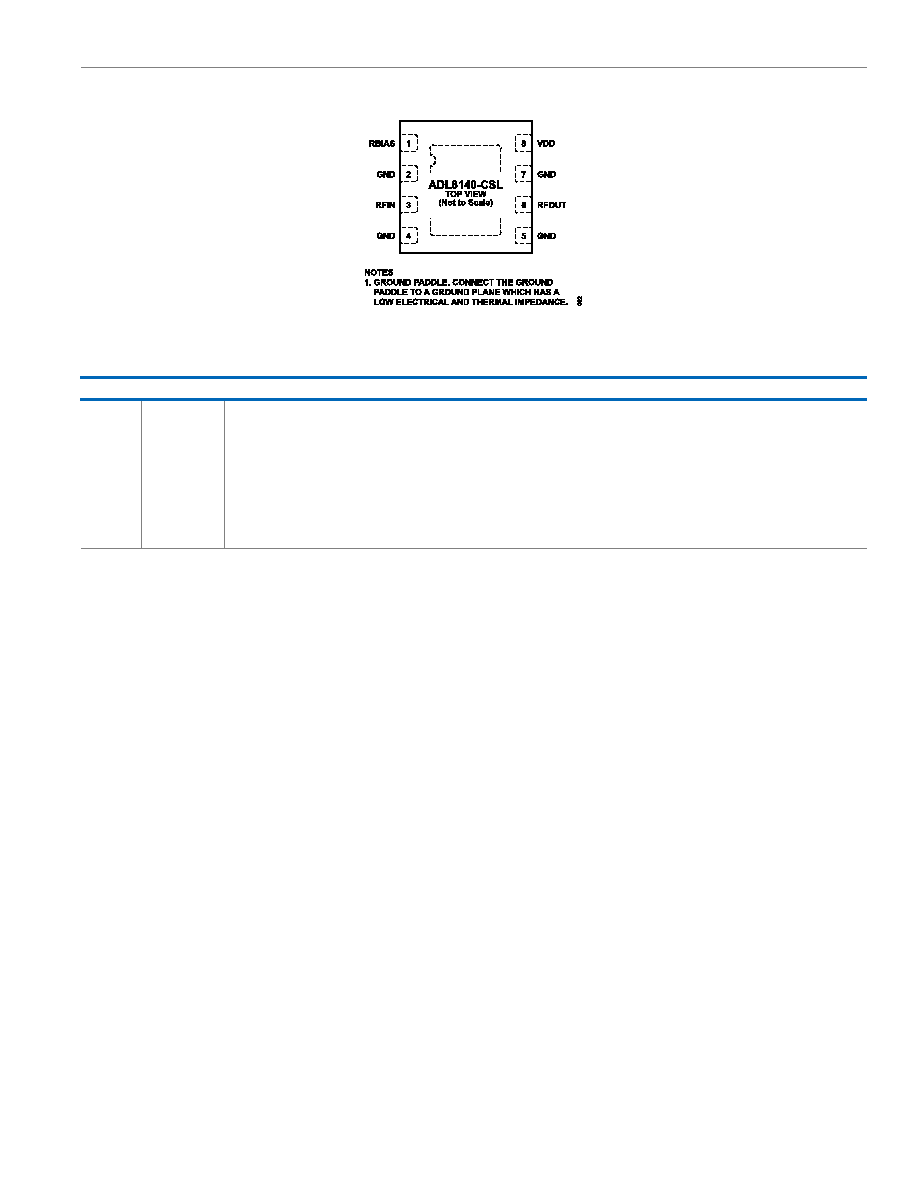

Figure 2. Pin Configuration

Table 11. Pin Function Descriptions

Pin No.

Mnemonic

Description

1

RBIAS

Bias Setting Resistor. Connect a resistor between RBIAS and VDD to set the IDQ. See the typical application circuit and the recommended

bias resistor values for various IDQ values, VDD = 1.5 V table in the ADL8140 data sheet for more details.

2, 4, 5, 7

GND

Grounds. Connect these pins to a ground plane that has low electrical and thermal impedance.

3

RFIN

RF Input. The RFIN pin is AC-coupled and matched to 50 Ω.

6

RFOUT

RF Output. The RFOUT pin is AC-coupled and matched to 50 Ω.

8

VDD

Drain Bias. Connect the VDD pin to the supply voltage.

GROUND

PADDLE

Ground Paddle. Connect the ground paddle to a ground plane which has a low electrical and thermal impedance.
