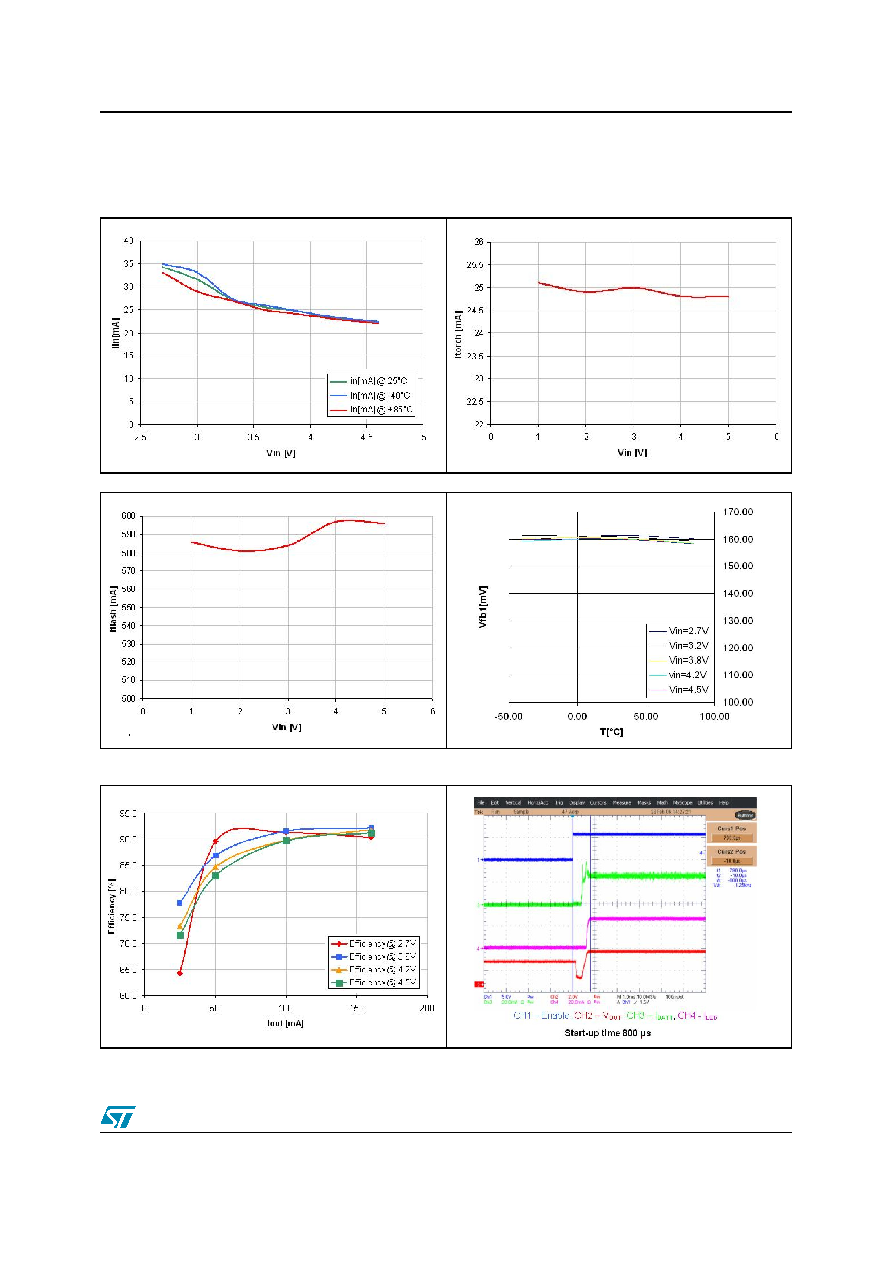

background image
STCF02
Typical characteristics
9/19
5
Typical characteristics
Figure 4.
IIN vs VIN in torch mode
Figure 5.
IO vs VIN in torch mode 25 mA
Figure 6.
IO vs VIN in flash mode 600 mA
Figure 7.
VFB1 vs temp in torch mode
Figure 8.
Efficiency vs IO in torch mode
Figure 9.
Start-up to torch mode 25 mA at
VBATT = 3.6V
