DOMINANT Semiconductors
19/05/05
S SpiceLED AlInGaP SSx-CLD-v3
Page 6 of 6

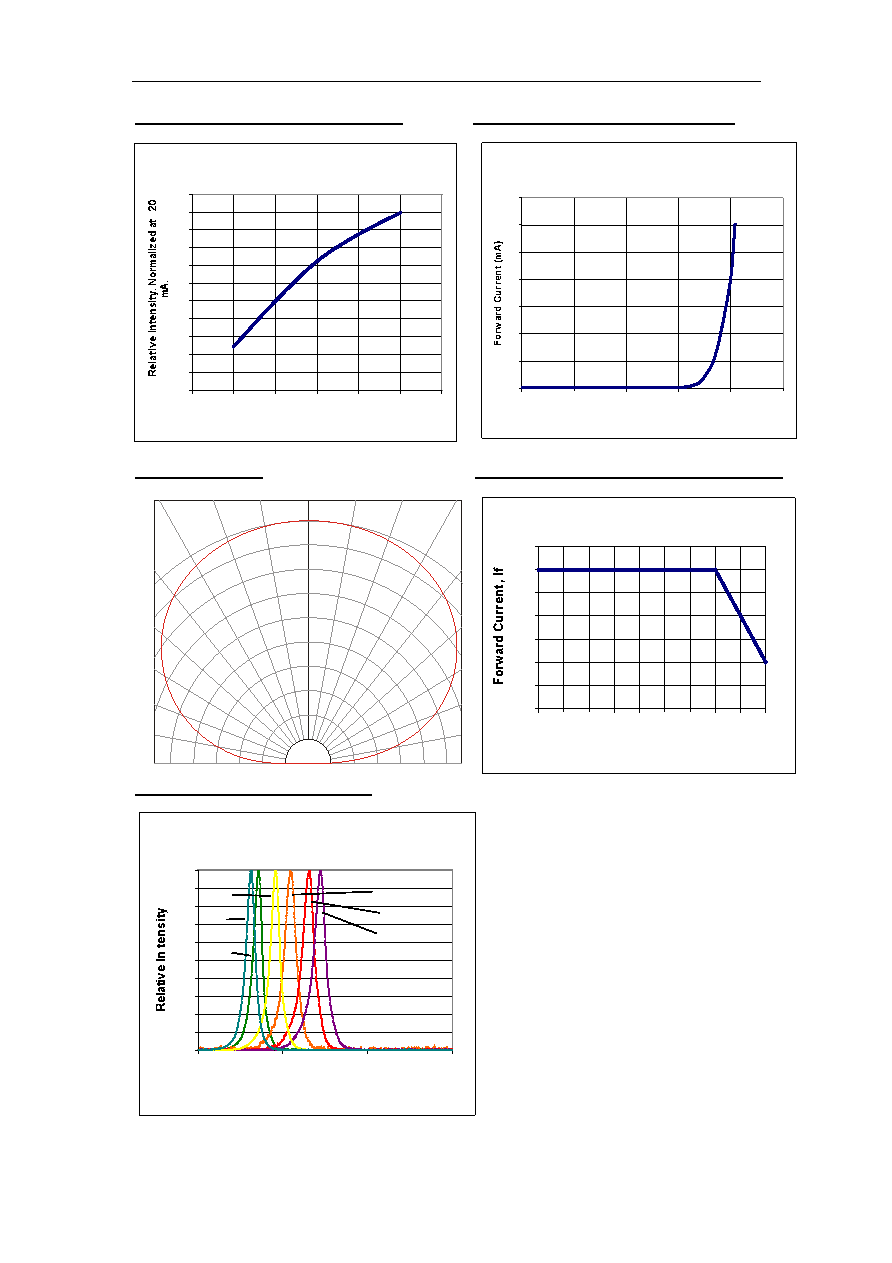

Relative intensity vs. forward current.
Forward current vs. forward voltage.
Intensity vs. DC Forward Current
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
2.2
0
102030
405060
Forward Current (mA)
Forward Current vs. Forward Voltage
0
5
10
15
20
25
30
35
1.2
1.4
1.6
1.8
2
2.2
Forward Voltage (V)
Radiation pattern.
Maximum current vs. ambient temperature.
0
o
10
o
70
o
60
o
50
o
40
o
30
o
20
o
90
o
80
o
0.6
0.8
1.0
0.2
0.4
0
MaxforwardCurrent vsTemperature
0
5
10
15
20
25
30
35
10 20 30 40 50 60 70 80 90 100
Ambient Temperature
Relative Intensity vs. Wavelength
Relative Spectra Emission
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
500
600
700
800
Wavelength (nm)
Green
Orange
Red
Super Red
Yellow
Pure
Green



Html Pages

1 2 3 4 5 6 7 8 9


Datasheet Descarga

Go To PDF Page


Enlace URL
