ADA4870ACPZ-R7 Datasheet(PDF) 18 Page - Analog Devices

No. de pieza ADA4870ACPZ-R7
Descripción Electrónicos  2500 V/μs Slew Rate, High Voltage, 1 A Output Drive Amplifier
PDF  24 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  AD [Analog Devices]
Página de inicio  http://www.analog.com
Logo AD - Analog Devices

ADA4870ACPZ-R7 Datasheet(HTML) 18 Page - Analog Devices

Back Button ADA4870ACPZ-R7 Datasheet HTML 14Page - Analog Devices ADA4870ACPZ-R7 Datasheet HTML 15Page - Analog Devices ADA4870ACPZ-R7 Datasheet HTML 16Page - Analog Devices ADA4870ACPZ-R7 Datasheet HTML 17Page - Analog Devices ADA4870ACPZ-R7 Datasheet HTML 18Page - Analog Devices ADA4870ACPZ-R7 Datasheet HTML 19Page - Analog Devices ADA4870ACPZ-R7 Datasheet HTML 20Page - Analog Devices ADA4870ACPZ-R7 Datasheet HTML 21Page - Analog Devices ADA4870ACPZ-R7 Datasheet HTML 22Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 18 / 24 page
background image
Data Sheet
ADA4870
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 18 of 24

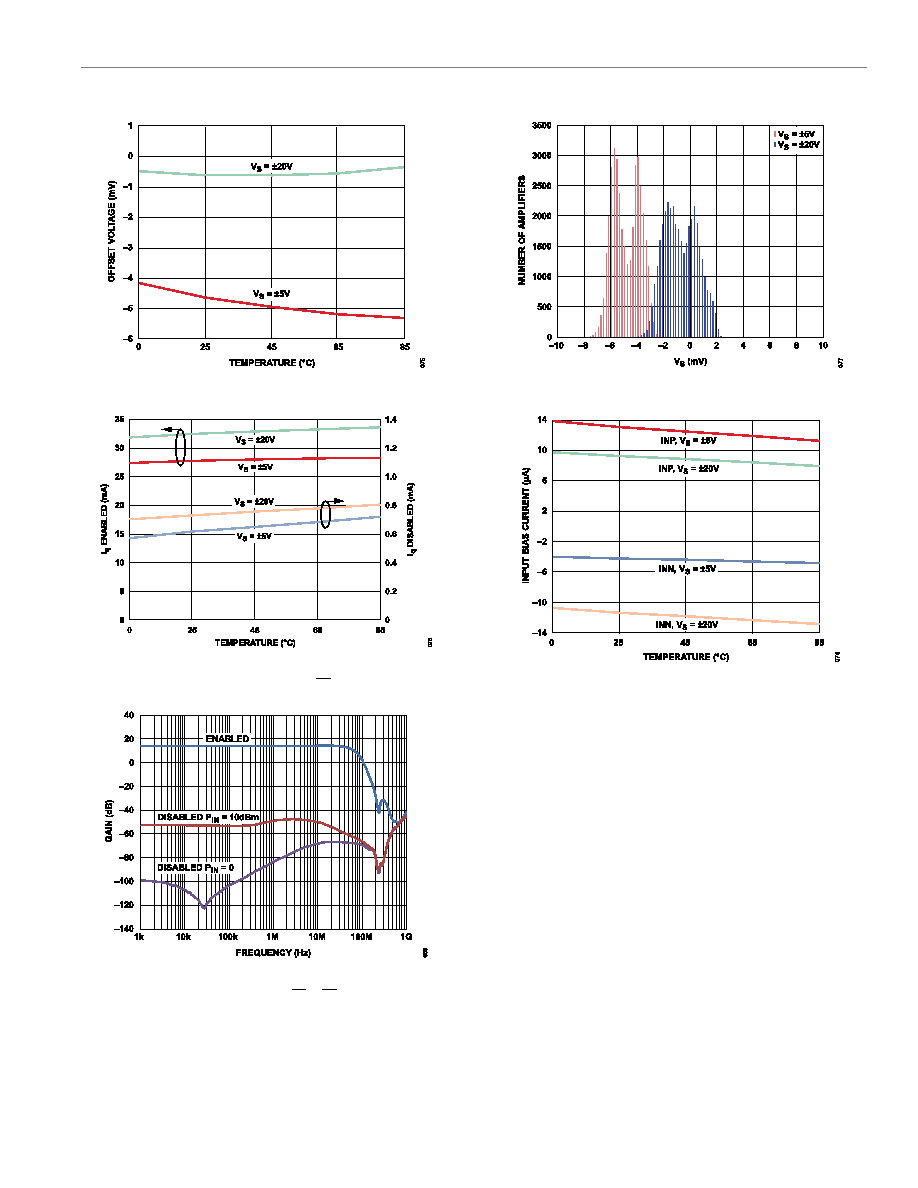

Figure 64. Input Offset Voltage vs. Temperature, VS = ±5 V, VS = ±20 V
Figure 65. Quiescent Supply Current (Iq) vs. Temperature, VS = ±5 V, VS = ±20
V (Enabled/Disabled via SD)
Figure 66. Forward Isolation vs. Frequency for 0 dBm and 10 dBm Input
Levels (Disabled via SD or ON)
Figure 67. Input Offset Voltage Distribution, VS = ±5 V, VS = ±20 V
Figure 68. Input Bias Current vs. Temperature, VS = ±5 V, VS = ±20 V
