AD8123
Rev. 0 | Page 9 of 16
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
25
50
75
100 125 150 175 200 225 250 275 300
CABLE LENGTH (meters)
VPEAK
VPOLE
VGAIN
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
25
50
75
100 125 150 175 200 225 250 275 300
CABLE LENGTH (meters)
VPEAK
VPOLE
VGAIN

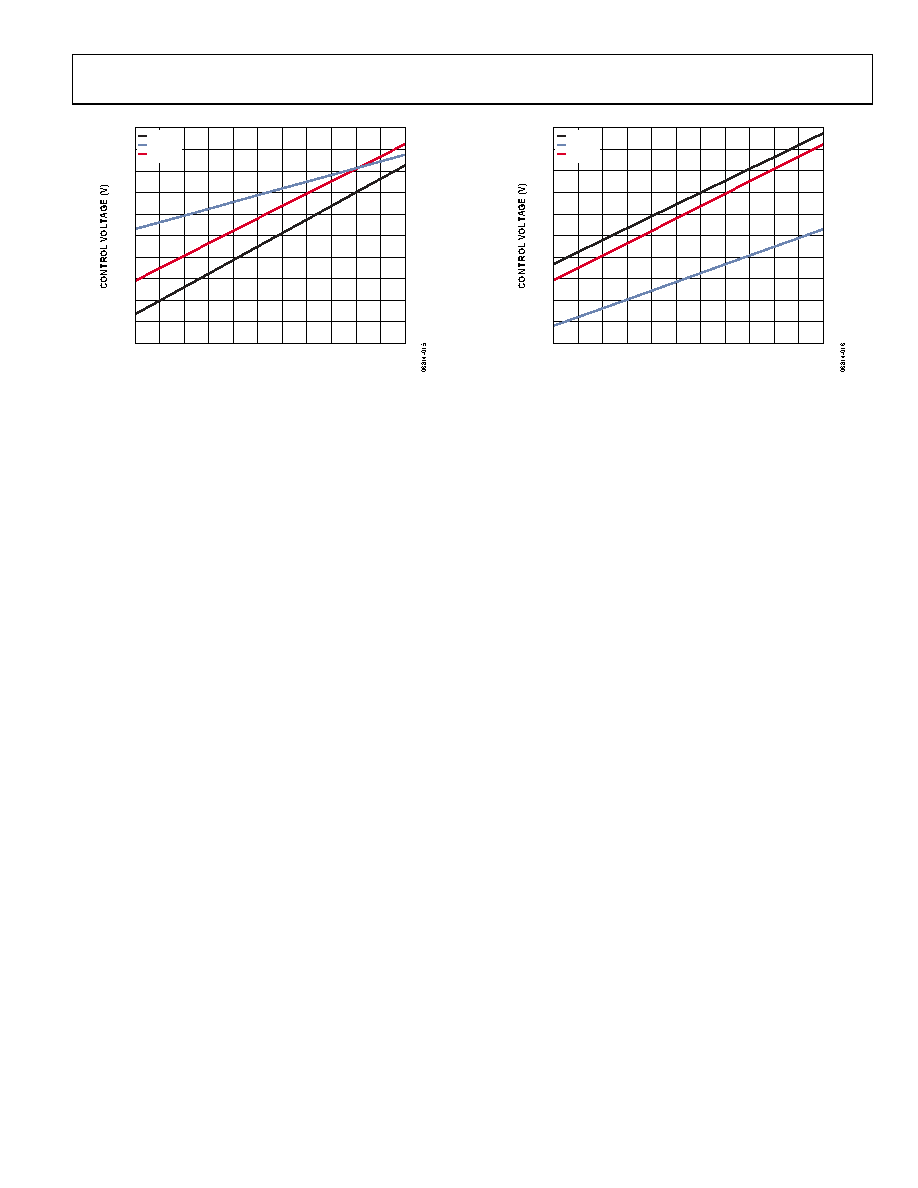

Figure 17. Recommended Settings for UTP Cable
Figure 18. Recommended Settings for Coaxial Cable
