PLL620-05/-06/-07/-08/-09

Low Phase Noise XO with multipliers (for 100-200MHz Fund or 3rdOT Xtal)

Universal Low Phase Noise IC’s

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991 www.phaselink.com Rev 11/01/05 Page 7

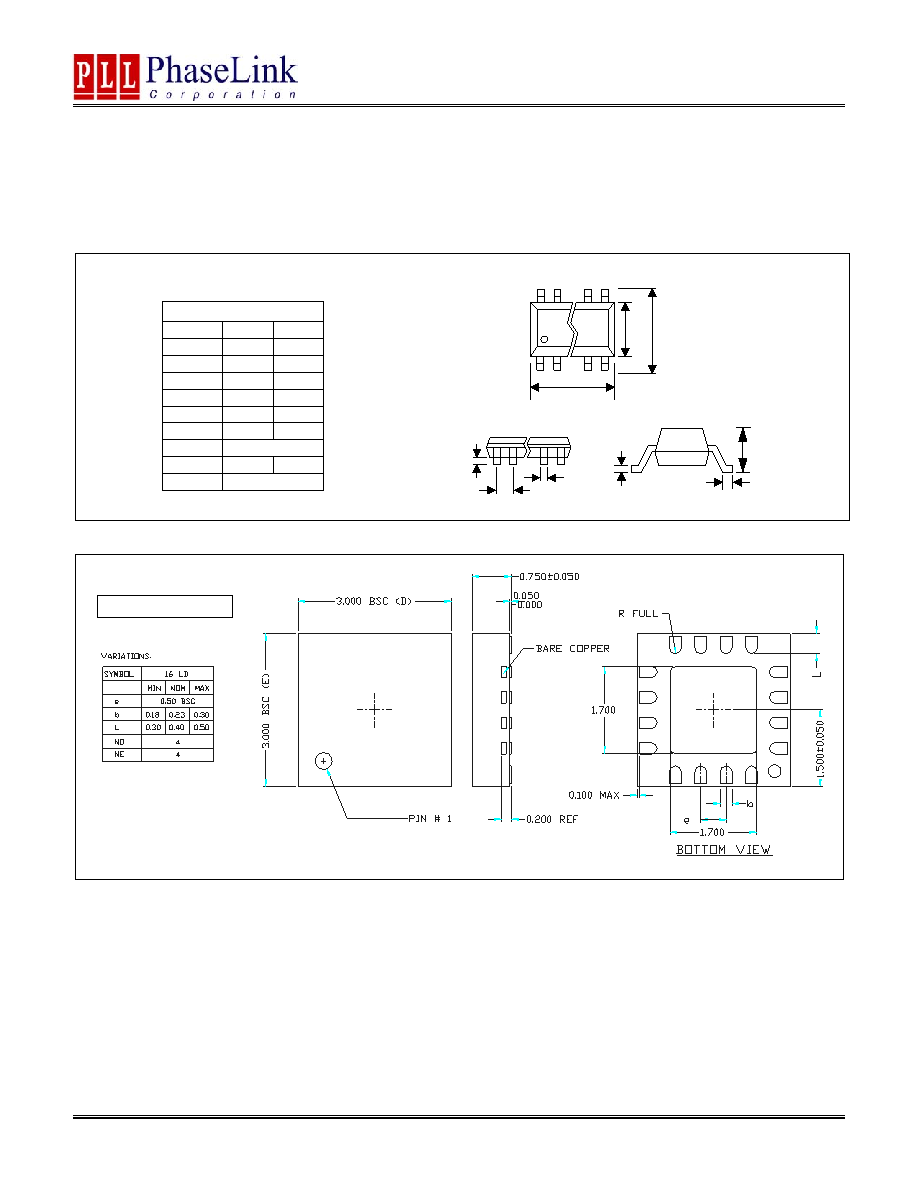

PACKAGE INFORMATION

C

L

A

EH

D

A1

e

B

16 PIN TSSOP ( mm )

Symbol

Min.

Max.

A

-

1.20

A1

0.05

0.15

B0.19

0.30

C0.09

0.20

D4.90

5.10

E4.30

4.50

H6.40 BSC

L0.45

0.75

e0.65 BSC

3mm x 3mm, QFN
