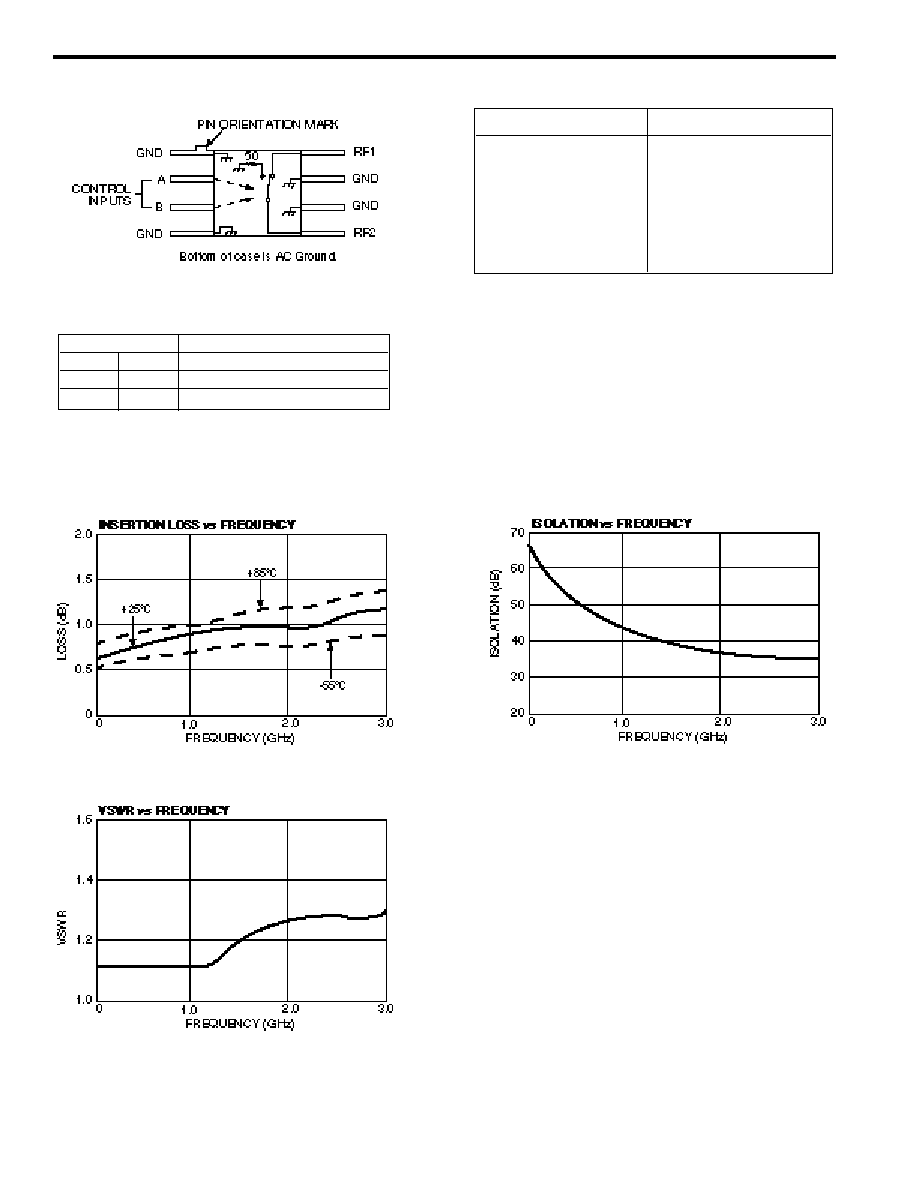

background image
V 2.00
Matched GaAs SPST Switch
SW-209
Control Input
Condition of Switch
A
B
RF1 to RF2
High
Low
ON
Low
High
OFF
Typical Performance
Absolute Maximum Ratings
1.
Operation of this device above any one of these parameters ma y
cause permanent damage.
Parameter
Absolute Maximum1
Max. Input Power
0.05 GHz
+27 dBm
0.5–2.0 GHz
+34 dBm
Control Voltage
+5V, –8.5V
Operating Temperature
–55˚C to +125°C
Storage Temperature
–65˚C to +150˚C
Functional Schematic
Truth Table
