Technical Data

Data Sheet N2360, Rev. A



China - Germany - Korea - Singapore - United States 



http://www.smc-diodes.com - sales@ smc-diodes.com 

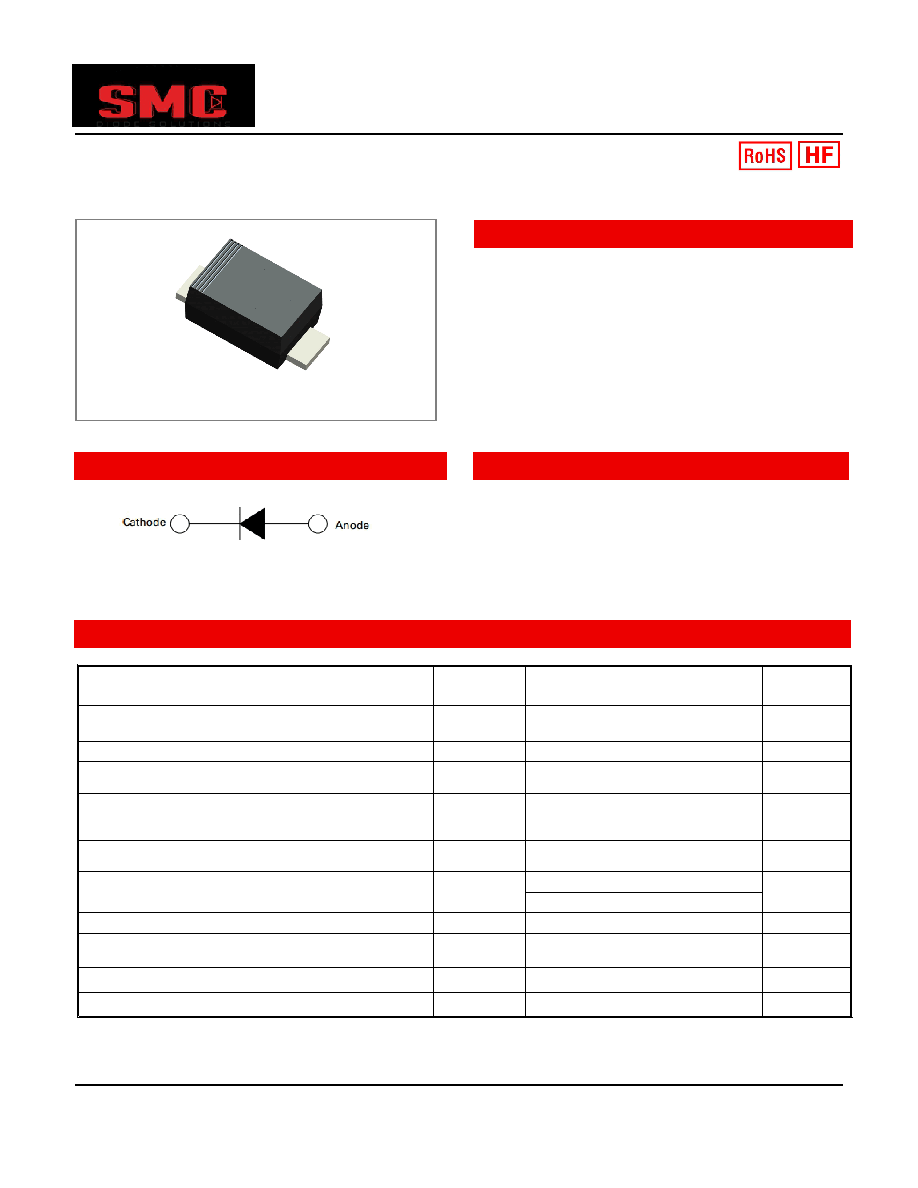

SS34AF

SS34AF SCHOTTKY RECTIFIER

Note: 1. Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2. P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas

Features

Circuit Diagram

Mechanical Data

Characteristic

Symbol

SS34AF

Units

Maximum Repetitive Peak Reverse Voltage

Maximum DC Blocking Voltage

VRRM

VDC

40

V

Maximum RMS Voltage

VRMS

28

V

Maximum Average Forward Rectified Current

at TL (see fig.1)

IF(AV)

3.0

A

Peak Forward Surge Current

8.3ms Single Half Sine-wave Superimposed on Rated

Load (JEDEC Method)

IFSM

70

A

Maximum Instantaneous Forward Voltage

@ IF = 3.0A, TJ = 25°C

VF

0.55

V

Maximum DC Reverse Current @TJ = 25°C

At Rated DC Blocking Voltage @TJ = 100°C

IR

0.5

mA

20

Typical Junction Capacitance(Note 1)

CJ

500

pF

Typical Thermal Resistance Junction to Ambient(Note 2)

RθJA

80

°C/W

Operating Temperature Range

TJ

-55 to +125

°C

Storage Temperature Range

TSTG

-55 to +150

°C

Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise specified



Case: JEDEC SMAF molded plastic body



Terminals: leads solderable per MIL-STD-750,

Method 2026



Polarity: Color band denotes cathode end



Weight: 0.038 grams



Mounting Position: Any



Schottky Barrier Rectifier



Guard Ring Die Protection



Low Forward Voltage



Reverse Energy Tested



High Current Capability



Case Material: Molded Plastic. UL Flammability

Classification Rating 94V-0



This is a Halogen Free device



All SMC parts are traceable to the wafer lot



Additional testing can be offered upon

request

SMAF
