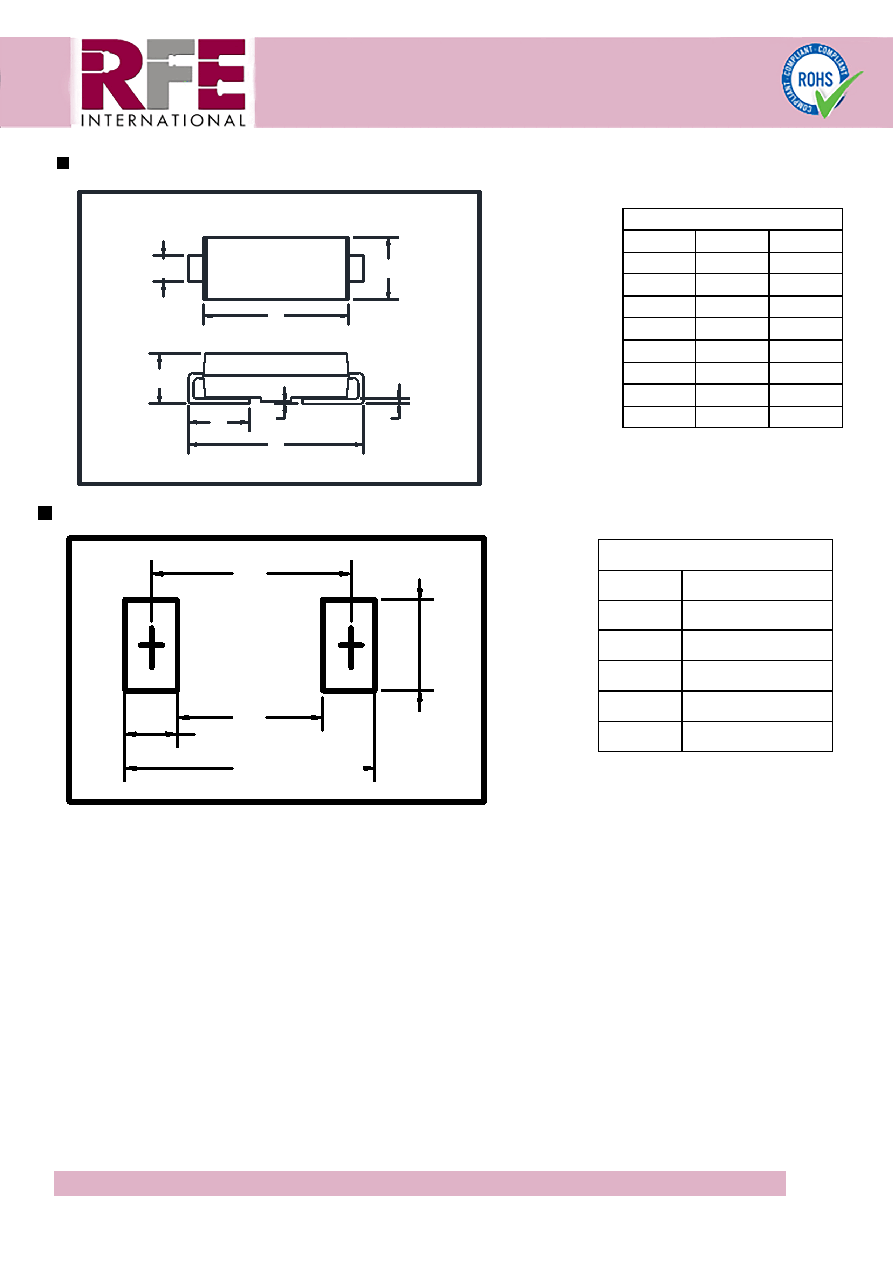

OUTLINE DIMENSIONS

DO-214AA(SMB)

Dim

Min

Max

A

1.85

2.15

B

3.30

3.94

C

4.25

4.75

D

1.99

2.61

E

5.21

5.59

F

0.90

1.41

G

0.10

0.20

H

0.15

0.31

Dimensions in millimeters

DO-214AA(SMB)

A

B

C

D

E

F

H

G

Surface Mount General Purpose Rectifier

GS3AB Through GS3MB

(SMB)

DO-214AA(SMB)

Dim

Millimeters

P1

6.8

P2

4.3

P3

1.8

Q1

2.5

Q2

2.3

Dimensions in millimeters

P2

Q2

Q1

P1

P3

SUGGESTED PAD LAYOUT

S-S055

07-17-2020

Page 3 of 3
