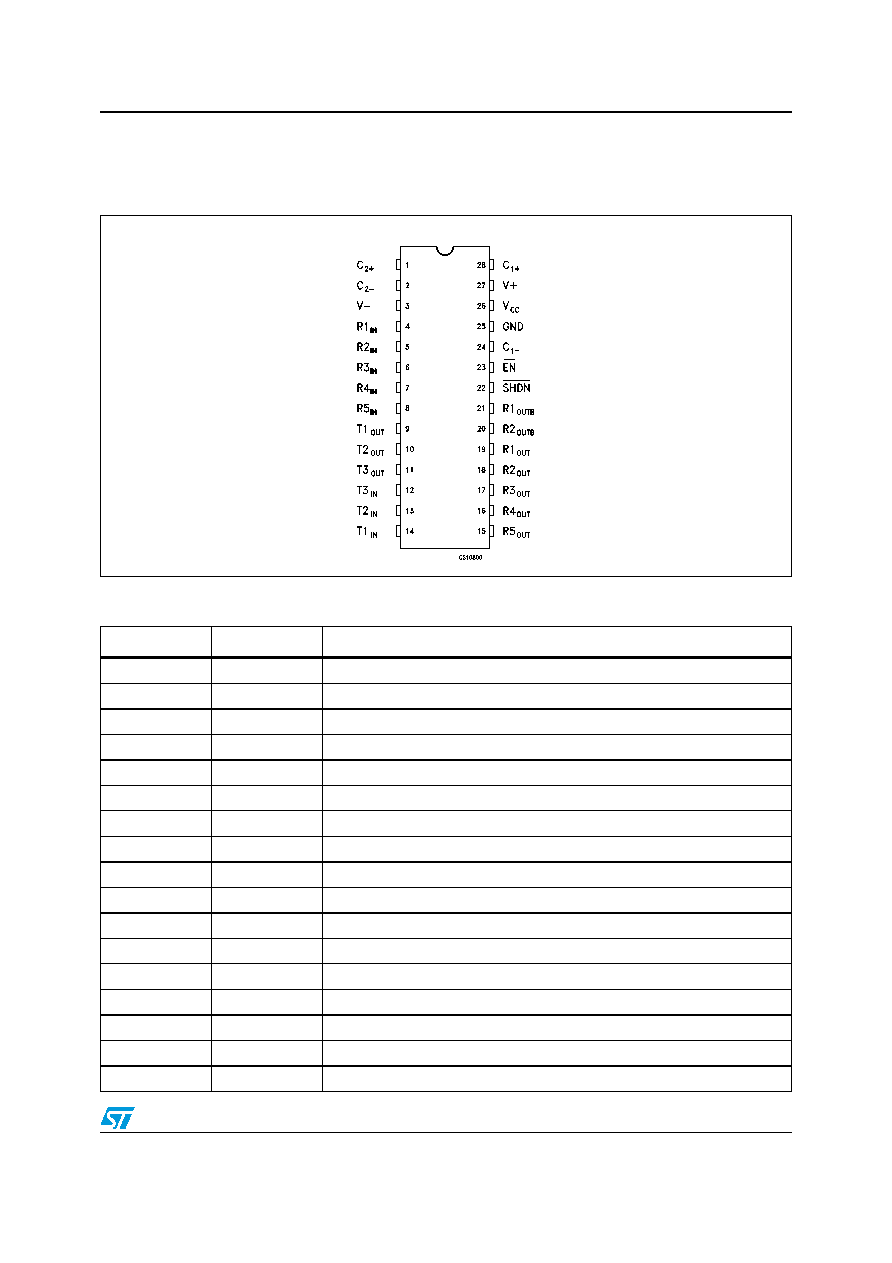

3 / 17 page  ST3241E Pin configuration 3/17 1 Pin configuration Figure 1. Pin configuration Table 1. Pin description Pin n° Symbol Name and function 1C2+ Positive terminal of inverting charge pump capacitor 2C2- Negative terminal of inverting charge pump capacitor 3 V- -5.5V Generated by the Charge Pump 4R1IN First receiver input voltage 5R2IN Second Receiver Input Voltage 6R3IN Third receiver input voltage 7R4IN Fourth receiver input voltage 8R5IN Fifth receiver input voltage 9T1OUT First transmitter output voltage 10 T2OUT Second transmitter output voltage 11 T3OUT Third transmitter output voltage 12 T3IN Third transmitter input voltage 13 T2IN Second transmitter input voltage 14 T1IN First transmitter input voltage 15 R5OUT Fifth Receiver Output Voltage 16 R4OUT Fourth receiver output voltage 17 R3OUT Third receiver output voltage |
|
|
