ADT7408
Rev. 0 | Page 7 of 24

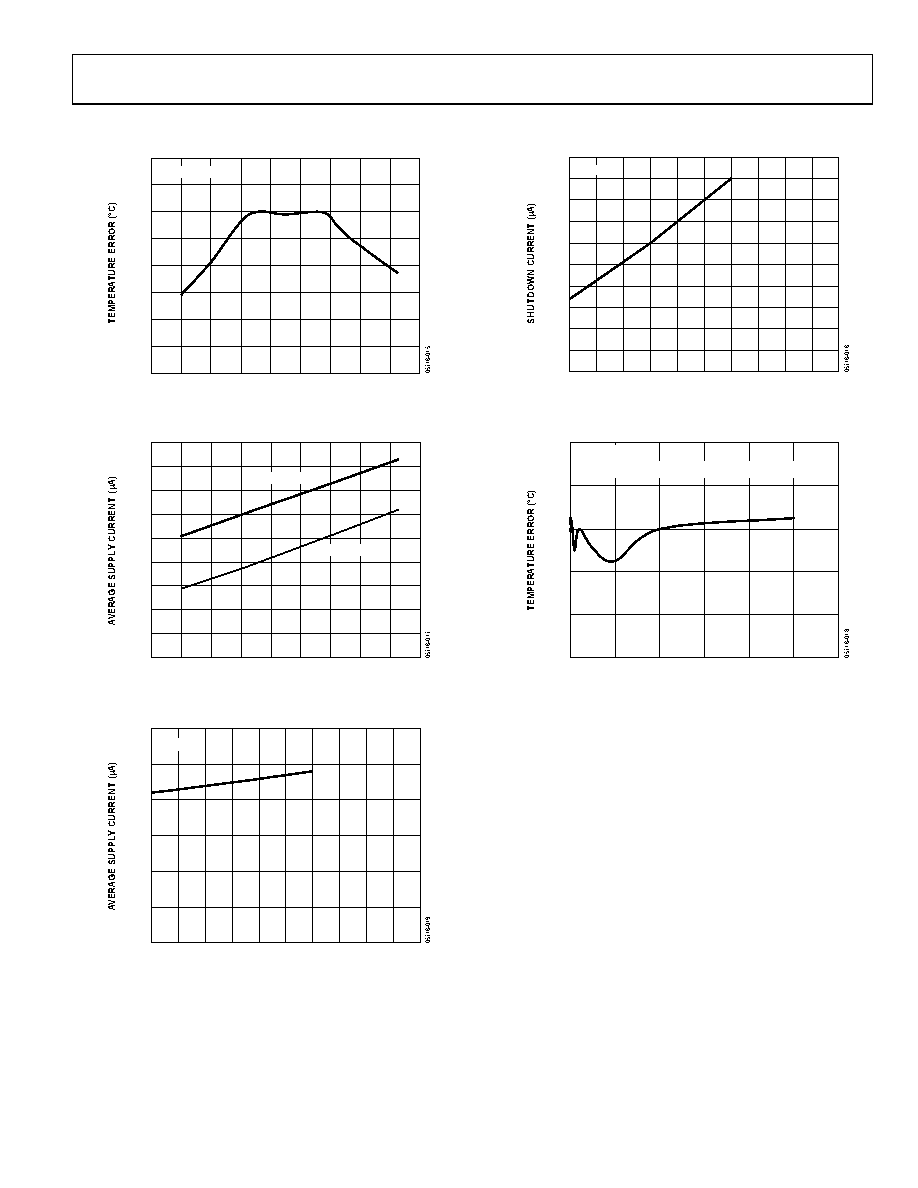

TYPICAL PERFORMANCE CHARACTERISTICS
0.4
0.2
0.1
–0.1
0.3
0
–0.2
–0.3
–0.4
–40
20
40
0
–20
60
80
100
120
140
TEMPERATURE (°C)
VDD = 3.3V
Figure 5. Temperature Accuracy
450
400
350
300
250
200
150
100
50
0
–40
–20
0
20
40
60
80
100
120
140
TEMPERATURE (°C)
CONVERTING 3.3V
AVERAGE 3.3V
Figure 6. Supply Current vs. Temperature
SUPPLY VOLTAGE (V)
150
175
200
225
250
275
300
3.0
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
4.0
TA = 85°C
Figure 7. Supply Current vs. Supply Voltage
SUPPLY VOLTAGE (V)
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
3.0
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
4.0
TA = 85°C
Figure 8. Shutdown Current vs. Supply Voltage
0.25
0.20
0.15
0.05
0.10
0
0123
5
4
SUPPLY RIPPLE FREQUENCY (MHz)
6
TA = 85°C
VDD = 3.3V ± 10%
A 0.1µF CAPACITOR IS CONNECTED AT THE VDD PIN.
Figure 9. Temperature Accuracy vs. Supply Ripple Frequency
