P9222-R/RN Datasheet
© 2019-2022 Renesas Electronics Corporation
24
May 5, 2022

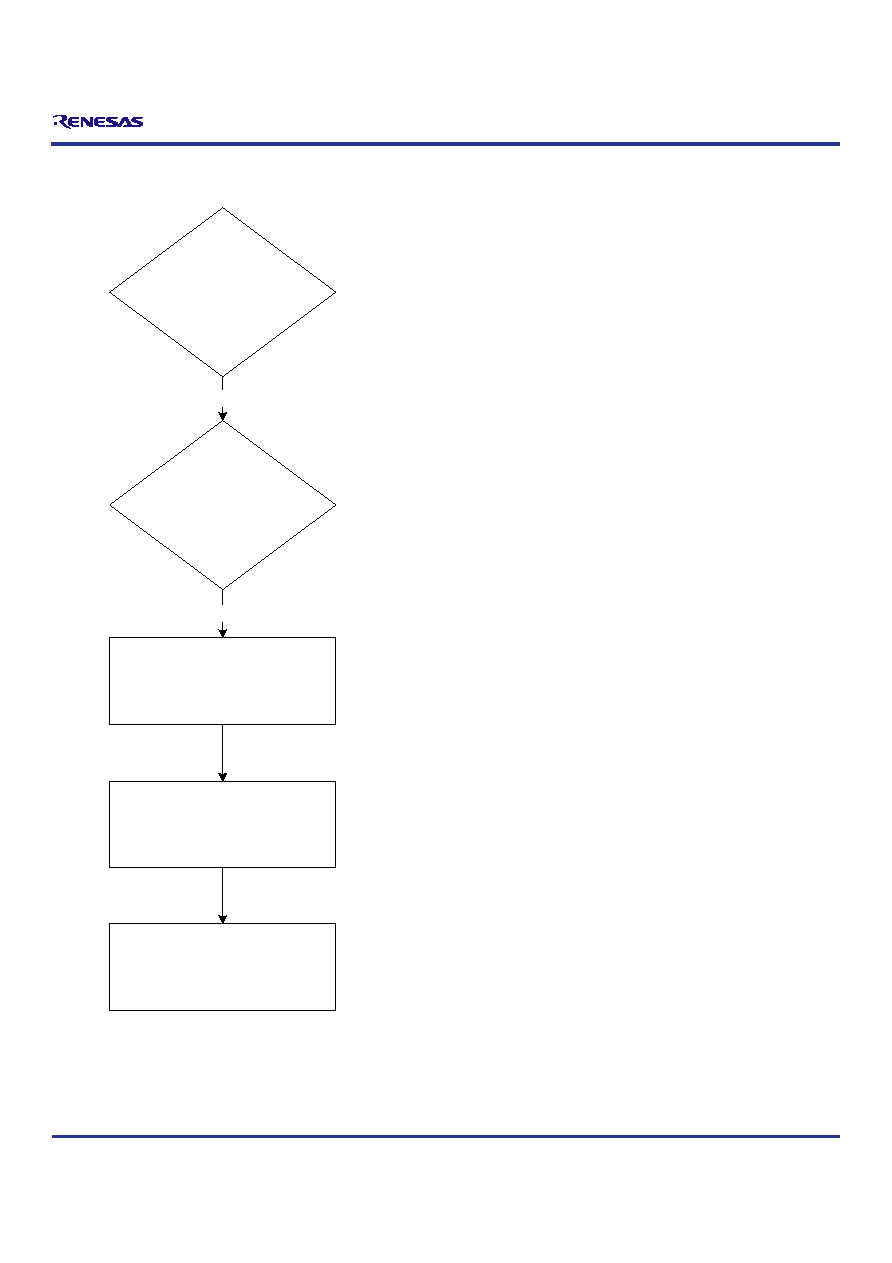

Figure 19. State Diagram for User Data Transmission from the P9222-R/RN to the P9235-RB
Is the P9222 in the power
transfer phase (bit 0 of register
0x4C = 1)?
Yes
Yes
Is the communication
channel free (bit 0 of register
0x4E = 0)?
Load the header register (0x51) and
outgoing user data registers (0x51 to
0x57)?
Set bit 0 of register 0x4E to 1 to
trigger the communication
The P9222-R will reset bit 0 of
register 0x4E to 0 after sending
the data into the channel
If the receiver is sending 1 byte, 2 bytes, and 3 bytes in the outgoing
register, then we would set the header register to 0x18, 0x28, and
0x38 respectively.
