STFPC311
5 Data
17/39
5
Data
5.1
LED Port
Data is written to the LED port by a WRITE command, starting from the least significant bit of
the port see Figure 12. When a bit of this port is set to 0, the corresponding LED lights up;
when the bit is set to a 1, the LED turns off. The data of Bits 5 through 8 are ignored. Upon first
power-up, all of the LEDs are turned off.

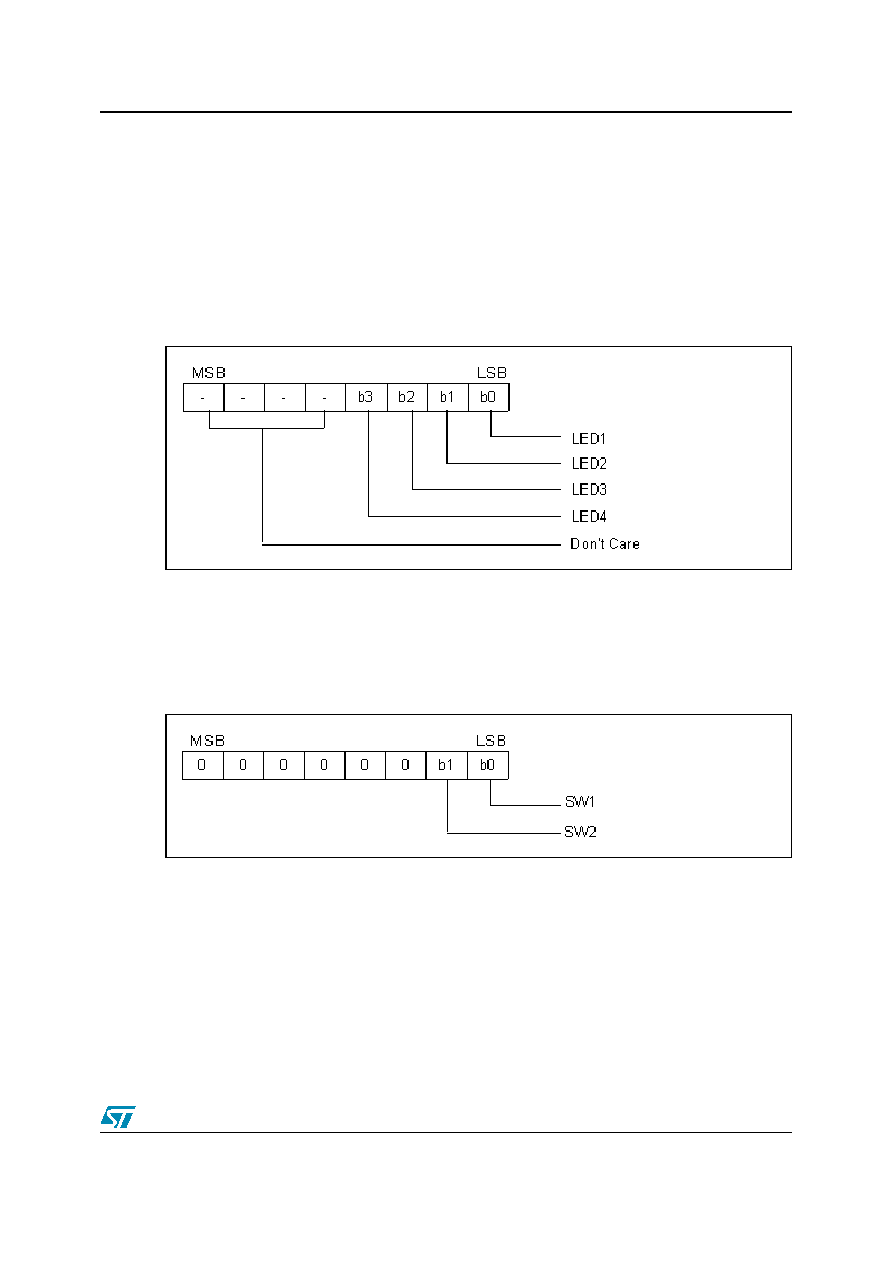

Figure 12. LED port data WRITE command order
5.2
SW Data
The SW data are read by the appropriate READ command, starting from the least significant bit
see Figure 13. Bits 3 through 8 of the SW data are 0.
Figure 13. SW data READ Command order
