CUI DEVICES | SERIES: AMT13 | DESCRIPTION: MODULAR INCREMENTAL ENCODER

date 08/05/2022 | page 3 of 8

cuidevices.com

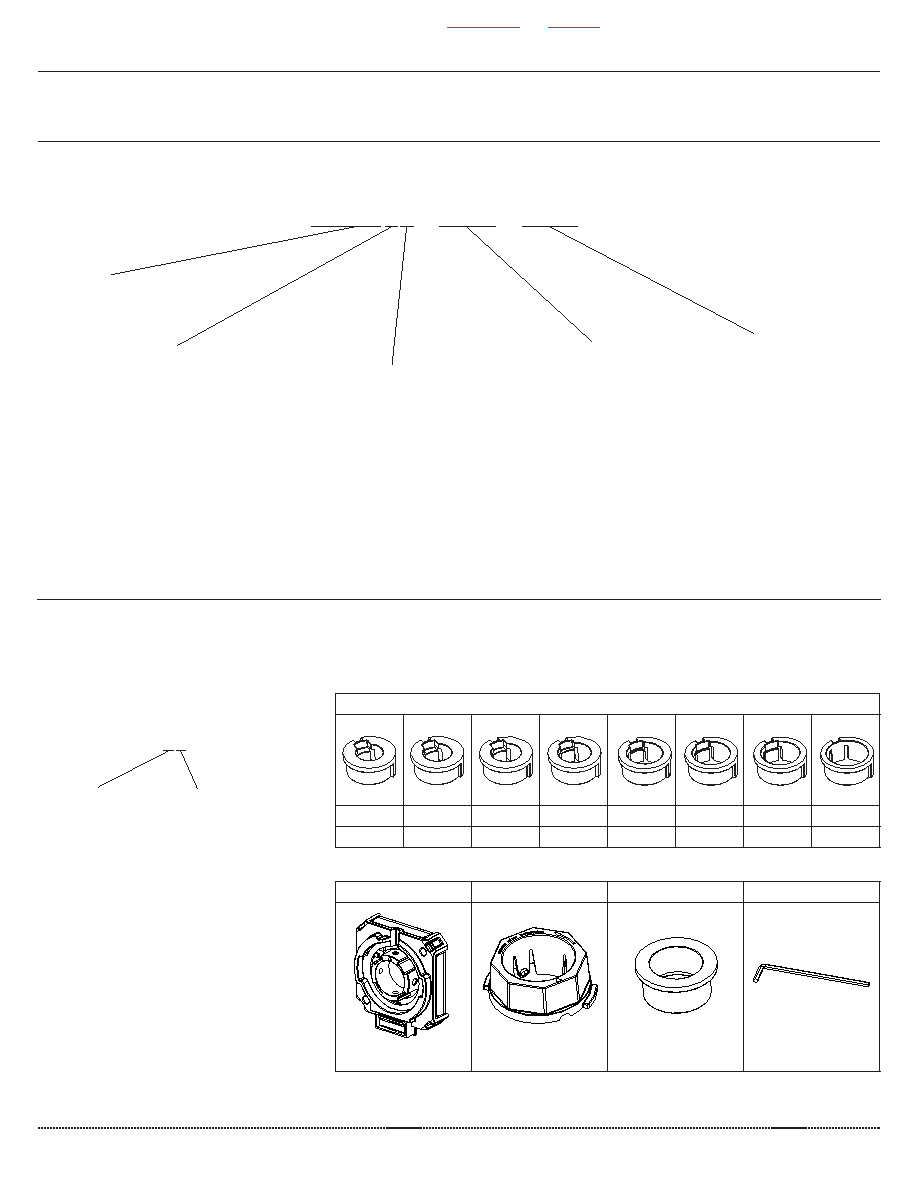

PART NUMBER KEY

For customers that prefer a specific AMT13 configuration, please reference the custom configuration key below.

AMT13XX - XXXX - XXXX

Quadrature

Resolution (PPR):

0048

0096

0100

0125

0192

0200

0250

0256

0360

0384

0400

0500

0512

0768

0800

1000

1024

1600

2000

2048

2500

4096

Bore Diameter:

9000 = 9 mm

9525 = 3/8''

1000 = 10 mm

1100 = 11 mm

1200 = 12 mm

1270 = 1/2”

1300 = 13 mm

1400 = 14 mm

1500* = 15 mm

1587 = 5/8”

Orientation:

2 = Radial

3 = Axial

Base Number

Output Signals:

S = CMOS Voltage

Q = Quadrature Line Driver

*15 mm bore diameter option only available as custom configuration.

AMT13-V KITS

In order to provide maximum flexibility for our customers, the AMT13 series is provided in kit form standard. This allows the user to implement the encoder into a range of

applications using one sku#, reducing engineering and inventory costs. AMT13 kit includes all items shown below.

AMT13XX-V

Orientation:

2 = Radial

3 = Axial

Output Signals:

S = CMOS Voltage

Q = Quadrature Line Driver

ORDERING GUIDE

SHAFT ADAPTERS

9 mm

3/8 in

10 mm

11 mm

12 mm

1/2 in

13 mm

14 mm

Light Blue

Orange

Purple

Gray

Yellow

Green

Red

Blue

AMT13

ALIGNMENT TOOL*

PLACEMENT TOOL

ALLEN WRENCH

*Alignment Tool comes pre-installed on all AMT13 Series.

Shaft adapter is not needed

for 5/8" shaft

Additional Resources: Product Page | 3D Model
