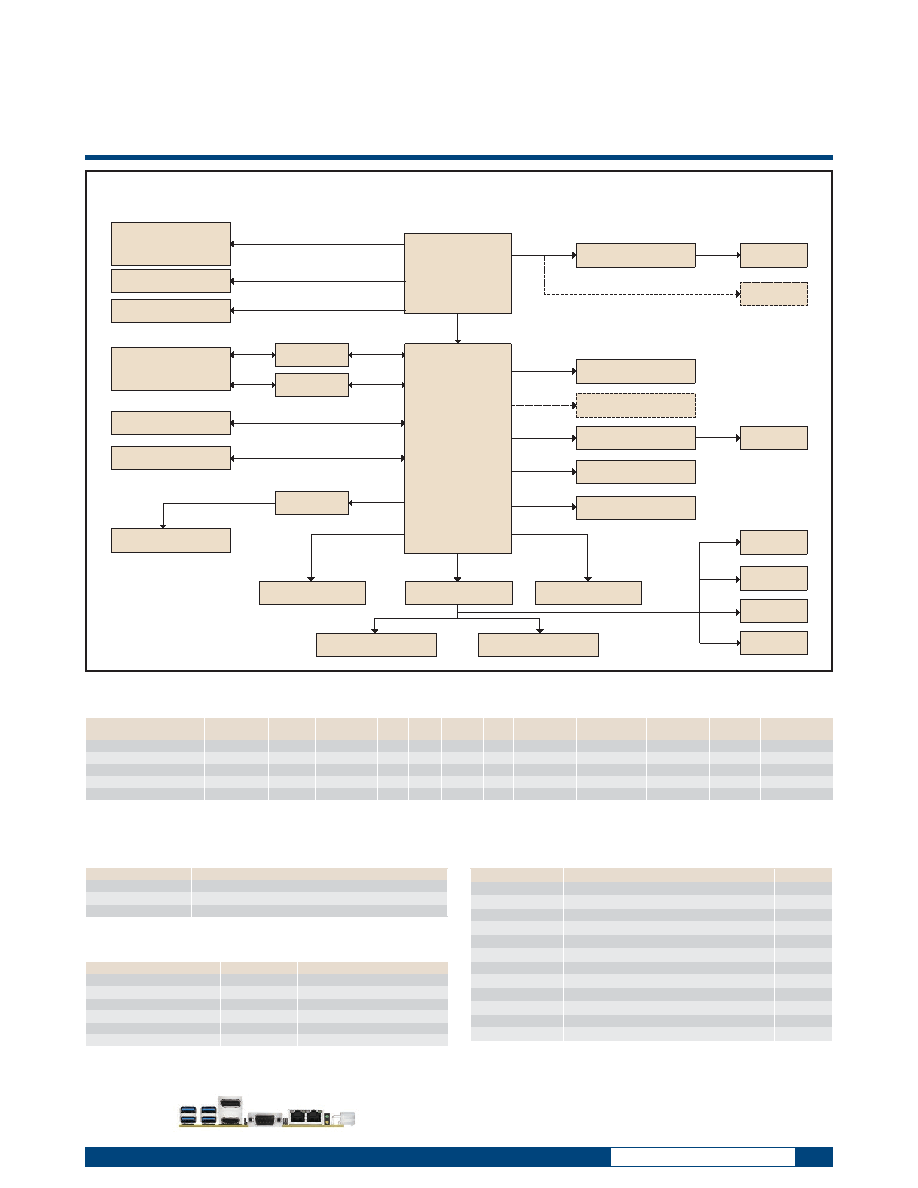

2 / 6 page  www.advantech.com/products Online Download Block Diagram MIO-5393 Ordering Information Part No. CPU Core Max. Frequency TDP vPro PCH ECC LVDS/eDP1 M.2 Slot Extension2 Power Connector3 Thermal Solution Operating Temperature MIO-5393RE6C-U8A1 E-2276ME 6 4.5 GHz 45W Yes CM246 Yes LVDS B-key + E-key 2x2 pin Active 0 ~ 60 °C MIO-5393RC7Q-U7A1 i7-9850HE 6 4.4 GHz 45W Yes QM370 No LVDS B-key + E-key 2x2 pin Active 0 ~ 60 °C MIO-5393RC7Q-S9A1 i7-9850HL 6 4.1 GHz 25W Yes QM370 No LVDS B-key + E-key 2x2 pin Passive 0 ~ 60 °C MIO-5393C5Q-U5A1 i5-8400H 4 4.2 GHz 45W Yes QM370 No LVDS B-key + E-key 2x2 pin Active 0 ~ 60 °C MIO-5393RE6CX-U8A1 E-2276ME 6 4.5 GHz 45W Yes CM246 Yes LVDS B-key + E-key 2x2 pin Active -40 ~ 85°C 1. eDP is supported by request 2. M.2 M-key +E-key is supported by request 3. DC-Jack with lock is supported by request Optional Accessories Part No. Description 1960094211T001 Active Cooler (65mm height) 1970004423N100 Heat Spreader 1700030406-01 Internal 2 ports USB cable 20CM Embedded OS/API OS Part No. Description Win10 (High End for Xeon/Core i7) 20706WX9HS0051 img W10 19HL MIO-5393 64b 1809 ENU Win10 (Value for Core i5/i3) 20706WX9VS0055 img W10 19VL MIO-5393 64b 1809 ENU Ubuntu (Desktop 20.04 LTS) 20706U20DS0000 img Ubun20.4 MIO-5393 64b 2004 ENU Software API N/A SUSI 4.0/iManager 3.0 Software API N/A WISE-PaaS/DeviceOn Software API N/A Edge AI Suite Rear I/O View Packing List Part No. Description Quantity MIO-5393 SBC 1 2046539300 Startup Manual 1 1700006291 SATA cable 1 1700018785 SATA Power cable 1 1700019584 Audio cable 1 1700030404-01 COM cable 1 1970004482T000 QFCS Cooler (TDP 45W SKU ; 43mm height) 1 19Z0001957N001 CPU bracket for Passive Heatsink (TDP 25W SKU) 1 1960094210N000 Passive Heatsink (TDP 25W SKU) 1 Mini Jumper pack (10pcs) 1 Screw kit (2pcs for M.2 device) 1 Screw Kit (4 sets of screw & stand-off) 1 *Function block with dotted line support by request Nano SIM 48-bit LVDS eDP (4k@60Hz) CAN Bus SMBus I2C 2 x 8-bit GPIO Intel Coee Lake-H Mobile CPU 256MB BIOS EIO-IS201 TPM 2.0 Intel Cannon Lake Mobile PCH-H CM246 (support ECC) QM370 2 x DDR4 SODIMM 2400MHz dual channel up to 64G* 2 x GbE PTN3460 DDI x1 DDI x1 DDR channel 2 x USB 3.1 Gen2 2 x USB 3.1 Gen2 Line-in/Out/MIC COM1 RS-232/422/485 COM2 RS-232/422/485 eDP M.2 Key E PCIe x 1 (Gen.3) USB2.0 x 1 M.2 Key M PCIe x 4 (Gen.3) SATA III x 1 M.2 Key B PCIe x 2 (Gen.3) SATA III x 1 USB2.0 x 1 2 x SATA III MIOe SATA III x 2 DDI x 1, 4 PCIe x1, USB3.0/2.0 LPC, SMBUS, Rest, Line out, Power on I210 PCIe x1 DMI 3.0 Audio Codec I219 PCIe x1 SPI LPC SPI DP 1.2 (DP++) (4k@60Hz) HDMI 1.4 (4k@30Hz) |
|
|
