FU008-A-R-SD Datasheet(PDF) 2 Page - ABLIC Inc.

No. de pieza FU008-A-R-SD
Descripción Electrónicos  AUTOMOTIVE, 125°C OPERATION, 2-WIRE TIMER WITH BUILT-IN QUARTZ CRYSTAL
PDF  29 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  ABLIC [ABLIC Inc.]
Página de inicio  https://www.ablic.com
Logo ABLIC - ABLIC Inc.

FU008-A-R-SD Datasheet(HTML) 2 Page - ABLIC Inc.

  FU008-A-R-SD Datasheet HTML 1Page - ABLIC Inc. FU008-A-R-SD Datasheet HTML 2Page - ABLIC Inc. FU008-A-R-SD Datasheet HTML 3Page - ABLIC Inc. FU008-A-R-SD Datasheet HTML 4Page - ABLIC Inc. FU008-A-R-SD Datasheet HTML 5Page - ABLIC Inc. FU008-A-R-SD Datasheet HTML 6Page - ABLIC Inc. FU008-A-R-SD Datasheet HTML 7Page - ABLIC Inc. FU008-A-R-SD Datasheet HTML 8Page - ABLIC Inc. FU008-A-R-SD Datasheet HTML 9Page - ABLIC Inc. Next Button
Zoom Inzoom in Zoom Outzoom out
 2 / 29 page
background image
CONVENIENCE TIMER
AUTOMOTIVE, 125°C OPERATION, 2-WIRE TIMER WITH BUILT-IN QUARTZ CRYSTAL
S-35710M A Series
Rev.2.1_00
2

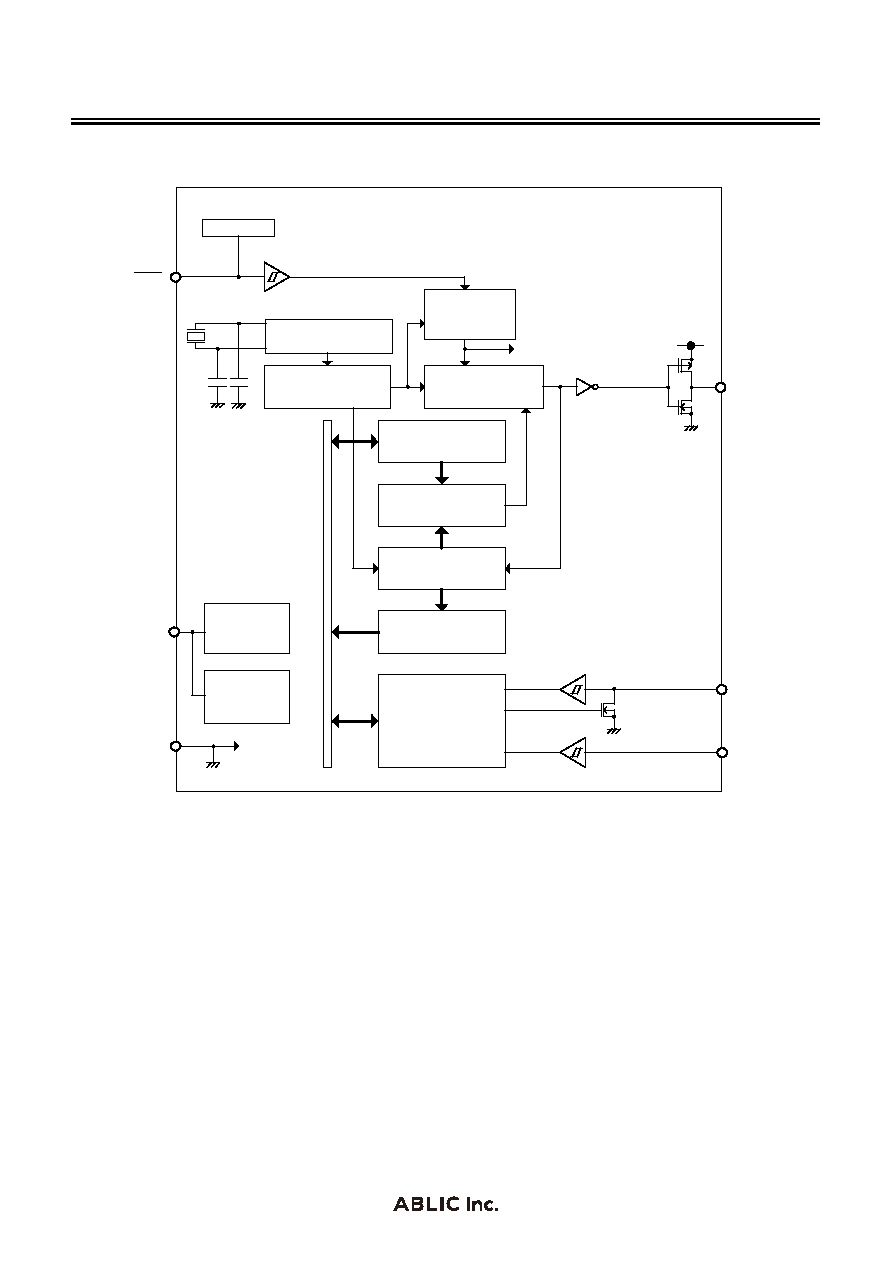

Block Diagram
RST
SDA
SCL
VDD
VSS
INT
Oscillation
circuit
32.768 kHz
Quartz crystal
Divider,
Timing generator
Pull-up
Power-on
detection
circuit
Constant
voltage
circuit
Chattering
elimination
circuit
Internal reset signal
INT pin
controller
Wake-up time
register
Comparator
Timer (24-bit)
Time register
Serial interface
Figure 1
